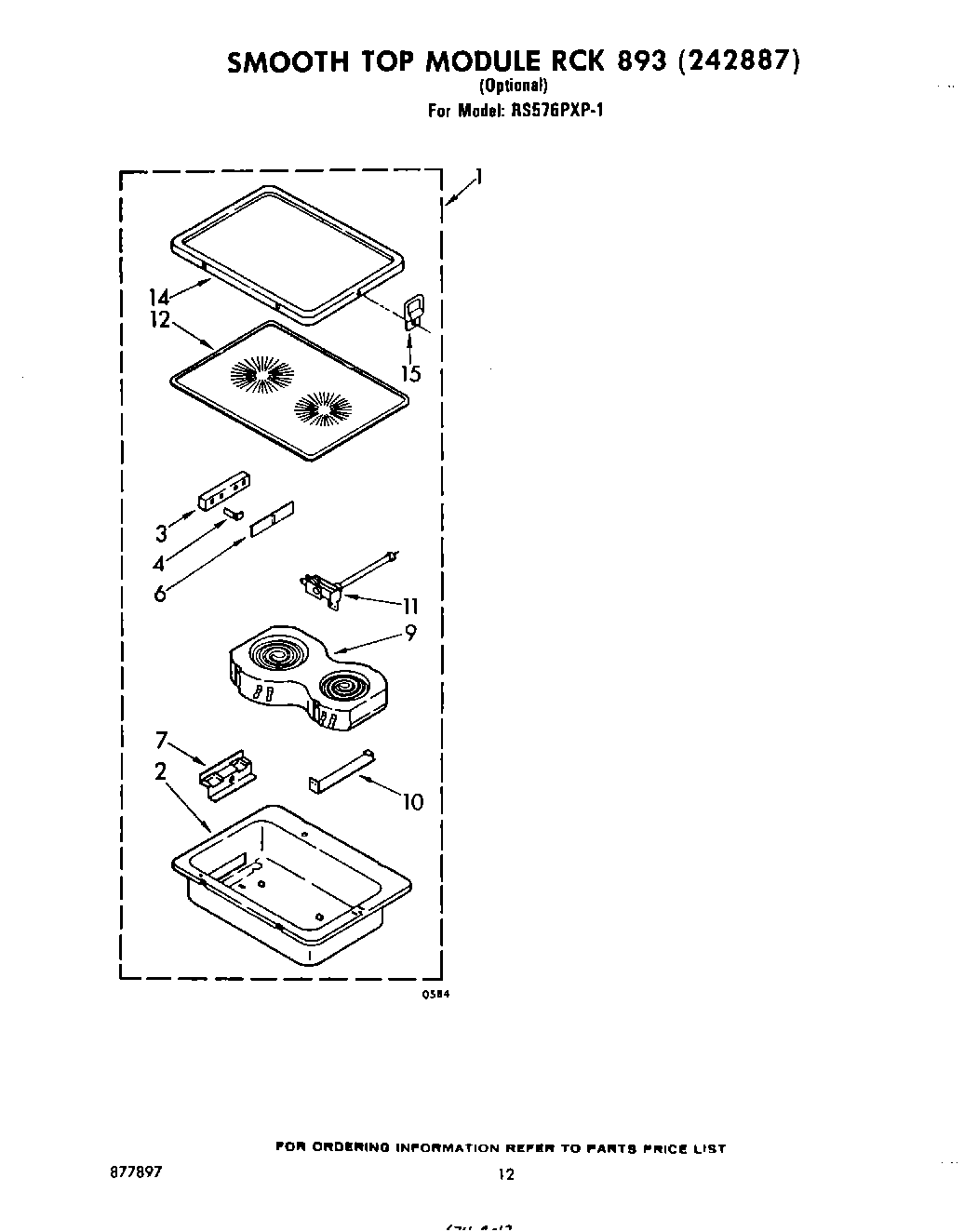

RS576PXP1 10 – SMOOTH TOP RCK893admin2025-04-26T12:50:16+00:00RS576PXP1 10 – SMOOTH TOP RCK893
Products
| Position | Product |
|---|
| 1 | Smooth Top Module, Complete |
| 2 | Pan, Surface Unit |
| 3 | Receptacle, Male |
| 4 | WPL 486525 |
| 4 | Terminal, Male (4) |
| 6 | Insulator, Receptacle |
| 7 | Pushnut, 1/8 |
| 7 | Bracket, Ground |
| 9 | Unit, Assembly |
| 10 | Bracket (2) |
| 11 | Limit, Control (Long) |
| 11 | Limit, Control (Short) |
| 12 | Cooktop, Glass |
| 14 | Frame, Cooktop |
| 14 | Hinge, Oven Door (Auxiliary) (Screw, 8-32 x 3/8 (2) (Top)) |
| 15 | Handle, Cooktop |
| 15 | WP486754 Whirlpool Compactor Screw |
