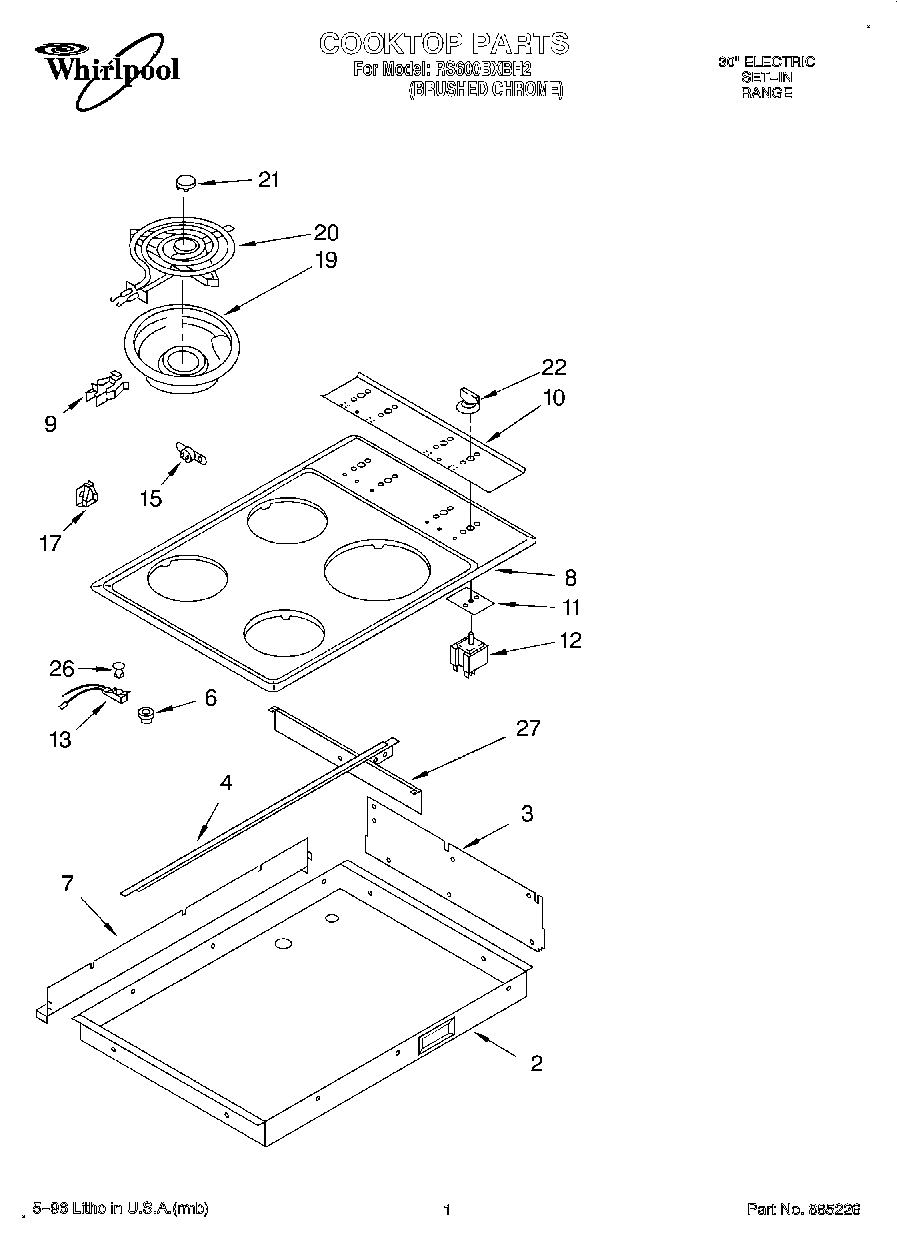

RS600BXBH2 01 – COOKTOP, LIT/OPTIONAL

Products

Position	Product
	Tech Sheet
	Use & Care Guide
	Installation Instructions
	WPL 3171507
2	Box, Burner
3	Plate, Mounting
4	Bracket, Mounting
6	WPL 258109
7	Cover, Rear
8	Cooktop (Brushed Chrome)
9	WP4332752 Whirlpool Clip
10	Panel, Control
11	3183956 Whirlpool Oven Seal Switch
12	Switch, Infinite (Use W/6“ Surface Unit)
12	Switch, Infinite (Use W/ 8“ Units)
12	WP486579 Whirlpool Air Conditioner Screw
13	Light, Indicator
15	WP3188286 Whirlpool Thermostat
15	WP313808 Whirlpool Screw
17	814103 Whirlpool Clip
19	DRIP BOWL 8" W/HOLE CHROME
19	WPW10196406 Whirlpool 6" Chrome Drip Bowl
20	WP660533 Whirlpool Oven 8" Surface Element
20	WP660532 Whirlpool Oven Surface Element
21	Medallion (4)
22	Knob, Control (4)
26	Lens, Light
27	Screw (6)
27	Shield, Heat
