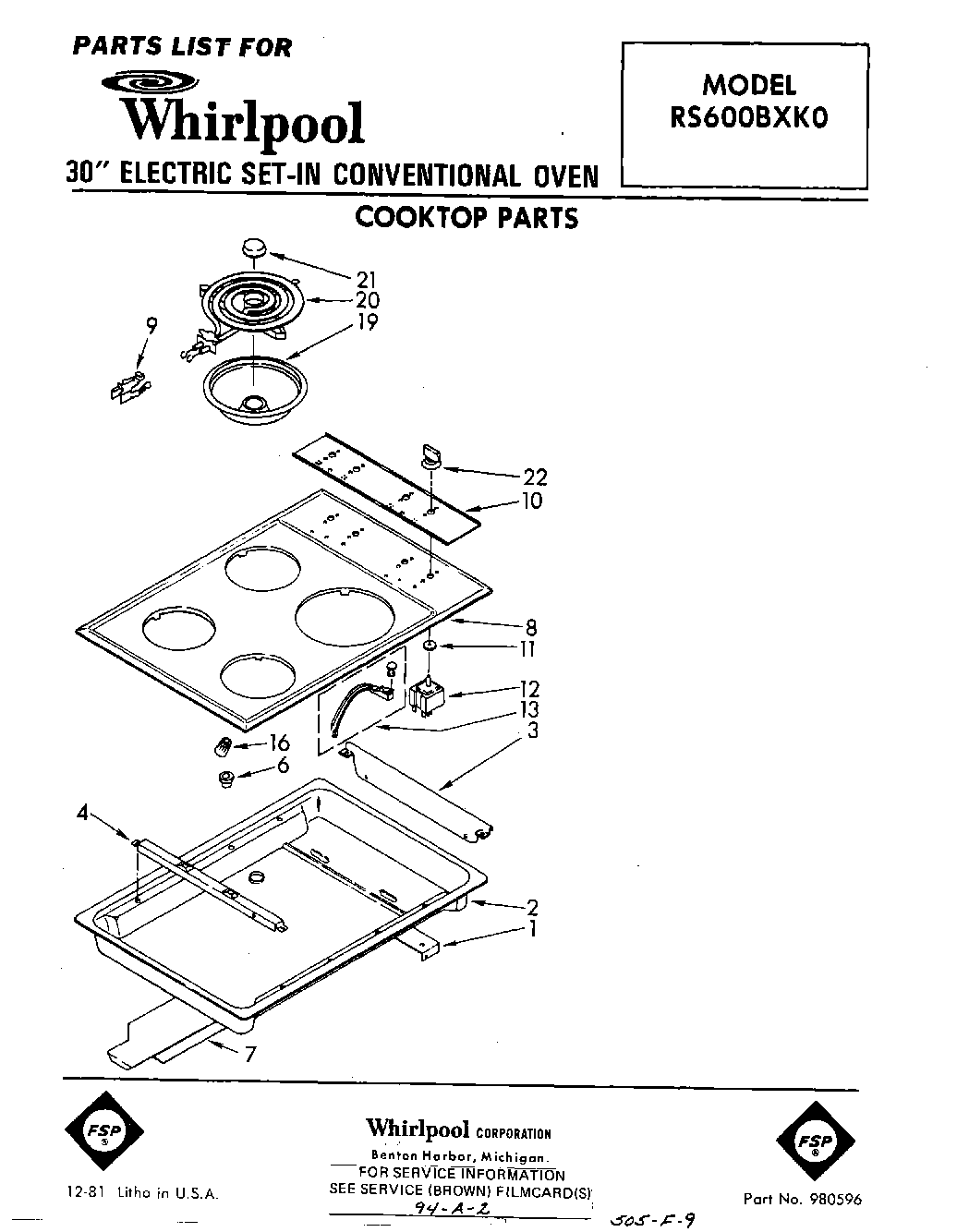

RS600BXK0 01 – SECTION

Products

Position	Product
1	Support, Box
2	Burner Box
3	Shield, Switch
4	Screw, 10-32 x 1/2
4	Support, Cooktop
6	WPL 258109
7	Cover, Top Rear
8	WP308685 Whirlpool Microwave Screw
8	Screw
8	Cooktop, Chrome
9	BURNER RECEPTACLE KIT
9	WP313808 Whirlpool Screw
10	Panel, Control
11	Seal, Switch Shaft (2)
12	Switch, Infinite (Screw, 8-32 x 5/16 (8))
12	WP3149401 Whirlpool Infinite Burner Switch
12	W10900107 Whirlpool Oven Surface Element Switch
13	Indicator Light (2) (Includes Lens)
16	Connector, Wire
19	WPW10196406 Whirlpool 6" Chrome Drip Bowl
19	DRIP BOWL 8" W/HOLE CHROME
20	SP21MA Chromalox Electric Stove Range 8" Top Burner Unit 2100W 240V
20	Unit, Surface (Includes Illus. 7) (6“ (3))
21	Medallion (4)
22	WP330190 Whirlpool Knob
