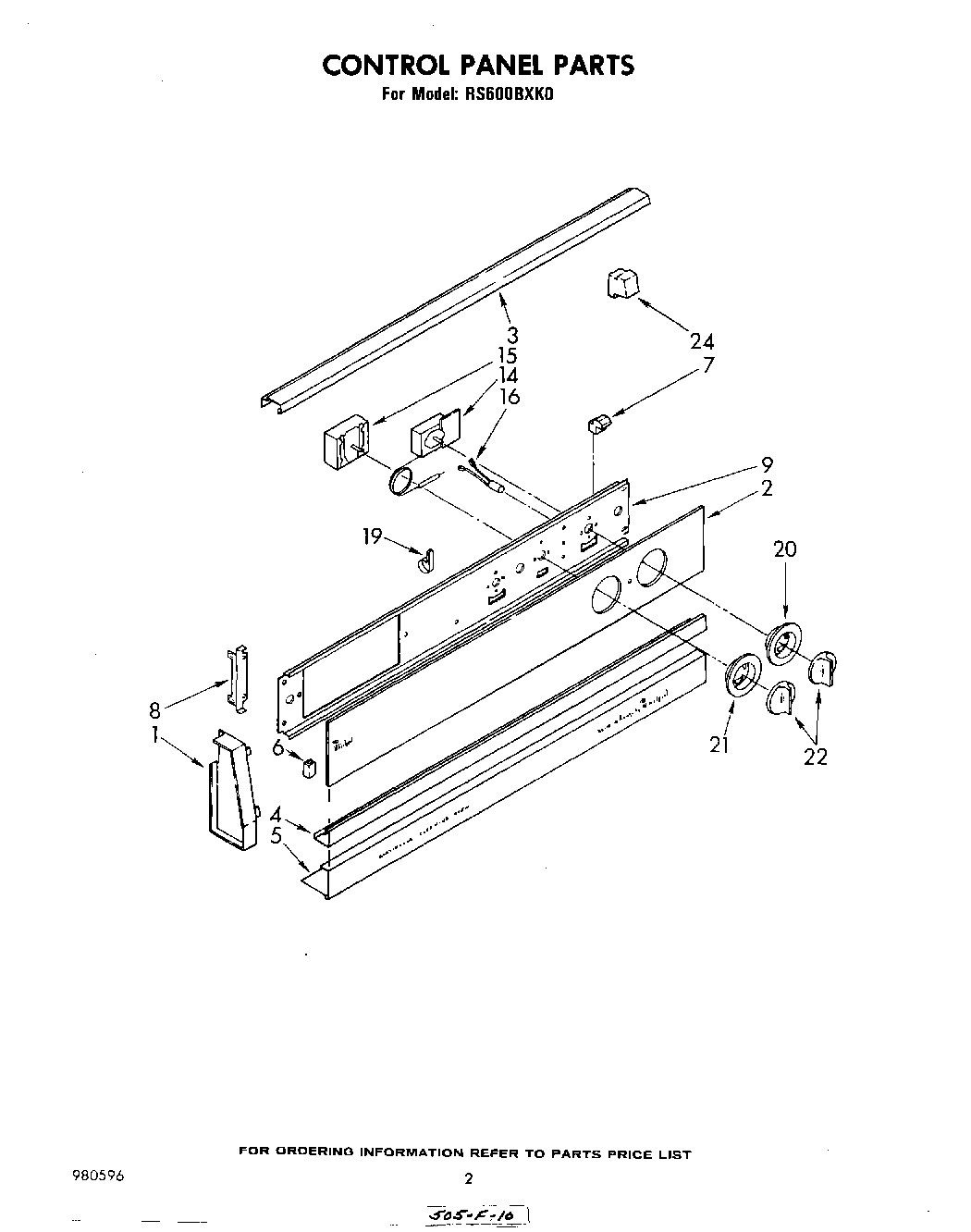

RS600BXK0 02 – SECTION

RS600BXK0 02 – SECTION

RS600BXK0 02 – SECTION

Products

PositionProduct
Golden Harvest (Uncut)
511873 Whirlpool Refrigerator Paint
Almond (Uncut)
799344 Whirlpool Refrigerator Paint
Enamel, Coffee (1 Qt. Uncut)
Enamel, New Avocado (1 Qt. Uncut)
1Screw (2)
1End Cap (L.H.)
1End Cap (R.H.)
2Control Panel, Glass
3Rail, Top
4Trim, Center
5WP965173 Whirlpool Dishwasher Screw
5Rail, Bottom
5Screw, 10-32 x 1/2
6Rubber Channel (2) (Black Model Only)
7Retainer, Glass (4)
8Bracket, Control Panel (2)
8Screw (2)
9Bracket, Control
14screw, 6-32 x 1/4 (2)
14Thermostat, Oven (Alt.)
14Thermostat, Oven (Alt.)
15WP486579 Whirlpool Air Conditioner Screw
15Switch, Selector
16Indicator Light (250V)
19Strain Relief (3)
19Screw
20Escutcheon, Thermostat
21Escutcheon, Selector
21Screw,
22WP3150371 Whirlpool Control Knob
24WPL 311450
24WPL 311433
24Leveler (Thinner) (2oz.)
24242831 Whirlpool Oven Wire
24Grease
24WPL 799351
24WPL 311408
24WPL 980596
24WPL 261880
24WPL 308500
241
24Wire, 25“ Roll (White 14 GA.)
24Wire, 25` Roll (Red 14 Ga.)
24Wire, 25` Roll (Black 14 Ga.)
24FOIL, ALUMINUM OVEN (18“ X 25 )
24WPW10208653 Whirlpool Insulation
24WPL 799832
24350942 Whirlpool Spray Paint
24350930 Whirlpool White Spray Paint
24Golden Harvest
2472110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
24WP72107 Whirlpool Touchup
2472017 Whirlpool Appliance Touch-Up Paint White
24285006 Whirlpool Spray
2472109 Whirlpool Dacor Avocado Touch-Up Paint
24Wire (14 Ga. 200 c Brown)
2418 Ga. 80~c Rating (Red)
24Wire (12 Ga. 150 c Black)
24Wire (14 Ga. 150 c Yellow)
24Wire (14 Ga. 150 c Orange)
24Wire (14 Ga. 150 c Green)
24Wire (14 Ga. 150 c Brown)
24Wire (14 Ga. 150 c Blue)
24Touch-Up Oven (1 Oz.)
24Paint, Spray 13 Oz. (Avocado)
24paint, spray 13 oz. (coffee)
24Paint, Touch-Up 1/2 Oz. (Coffee)
24350956 Whirlpool Spray Assembly
