RS600BXK0 03 – SECTION

RS600BXK0 03 – SECTION

Written by

in

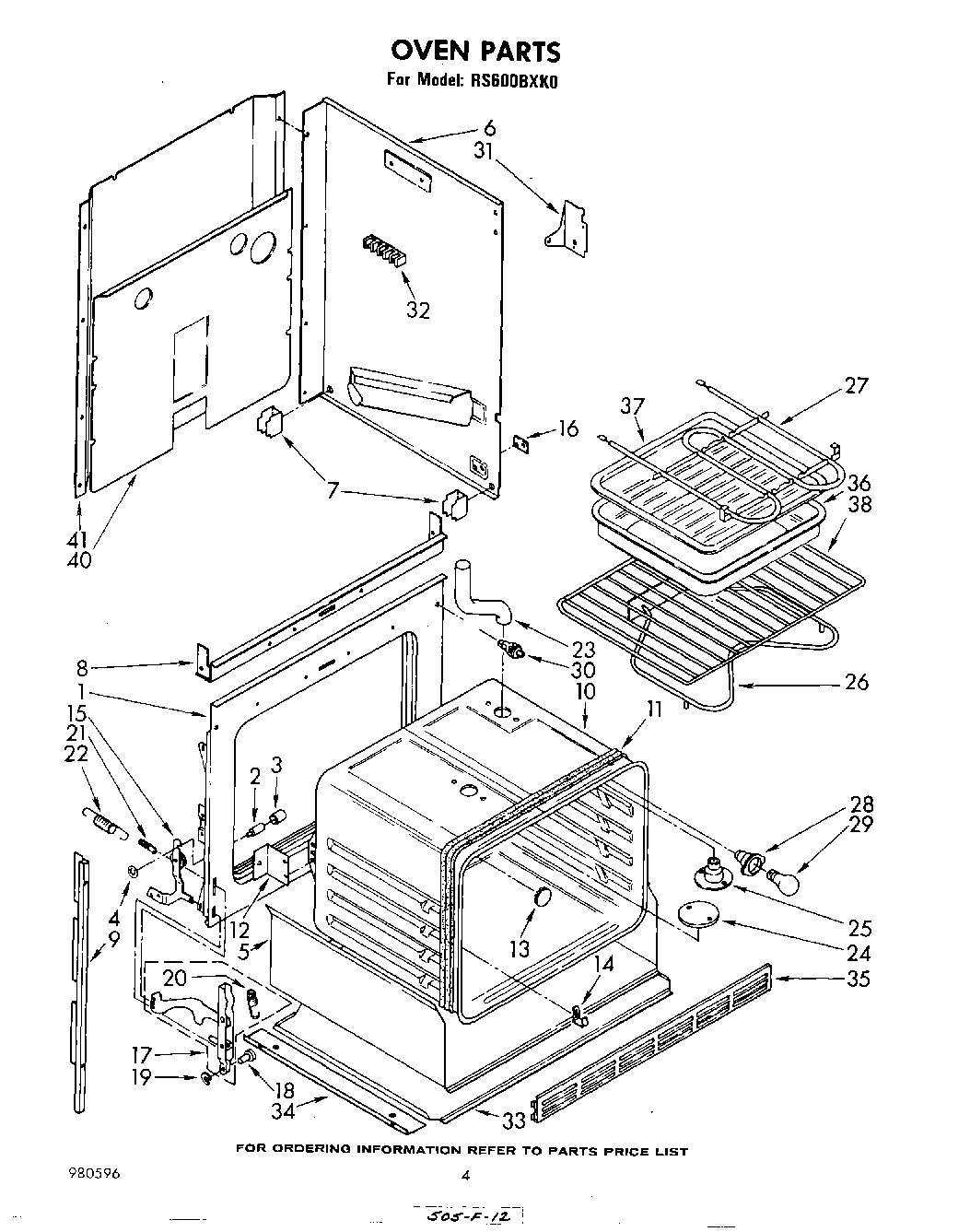

RS600BXK0 03 – SECTION

Products

PositionProduct
1Frame, Front
2Pin, Hinge Ear (2)
3Snubber, Door (2)
4Pushnut (2)
5Insulation Tray
6Side Wrapper (Right Side)
6Side Wrapper (Left Side)
7Support, Side Wrapper (4)
8Baffle, Top Insulation
9Side Trim (Left Side)
10Screw (3)
10Oven, 30“ Standard Clean
11Heat Seal
12Bracket, Oven Mounting (2)
13Plug Button
1498005642 Whirlpool Clip
15Hinge Ear, L.H.
15Hinge Ear, R.H.
16Plate, Side Panel (2)
16WP308544 Whirlpool Screw
17Channel, Arm (2)
18WP307986 Whirlpool Hinge Pin
19Retainer Ring (2)
20Spring, Door Stop (2)
21WP308125 Whirlpool Microwave Range/Cooktop Anchor
22Spring, Oven Door (2)
23Tube, Vent Extension
24Eliminator, Smoke
24WP90767 Whirlpool Screw
25WPL 310662
26ELMNT-BAKE
27Screw, 10-32 x 5/8 (4)
27WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
28Screw (10-12 x .875)
28Socket, Oven Light (Alt.)
28Socket, Oven Light (Alt.)
29RANGE ONLY 40W 120V APPL BULB
30Switch, Door
31WPL 310715
31WPL 310714
32W10841059 Whirlpool Screw
32WP112432 Whirlpool Nut Assembly
32WP8203546 Whirlpool Terminal Block
33WPL 310458
34Angle, Support (2)
35Grill, Bottom
35Grill, Bottom (Screw (3))
374396923 Whirlpool Broil Pan Set Gray Porcelain
38WPL 308173
40WPL 310459
41Cover, Rear
41WP308685 Whirlpool Microwave Screw
