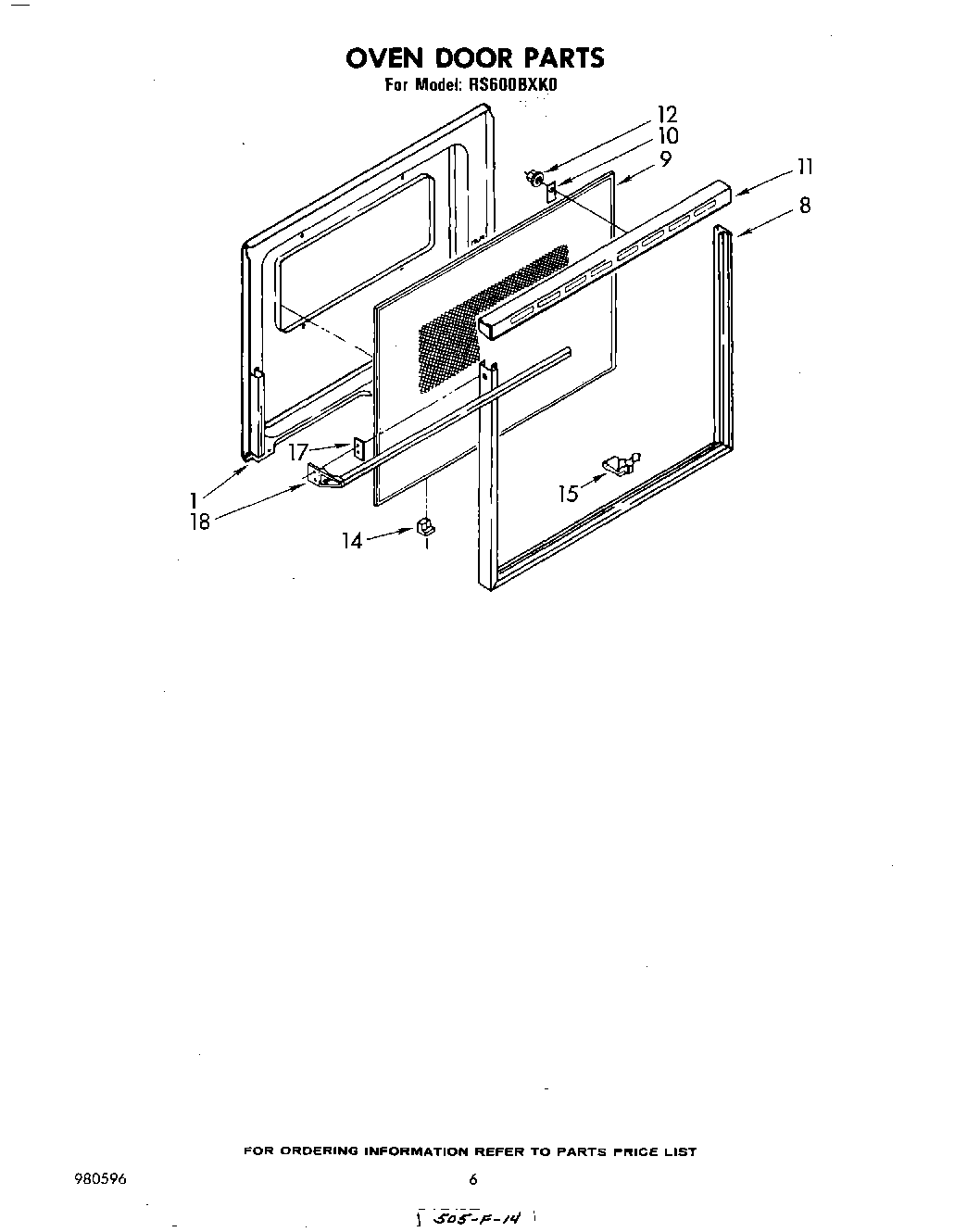

| 1 | Liner, Door |
| 1 | Screw (3) |
| 1 | Clip (2) |
| 1 | panel, top (screw, 10a x 3/8 (3)) |
| 8 | frame, door 30`` |
| 9 | Glass, Outer |
| 10 | hold down, glass (2) |
| 11 | Screw, 10A x 1/2 (2) (Black) |
| 11 | Top, Door Frame |
| 12 | WP90296 Whirlpool Clip |
| 14 | Cushion, Oven Door (3) |
| 15 | screw (3) |
| 15 | clip, glass (10) |
| 17 | Spacer, Door Handle (2) |
| 18 | WP912618 Whirlpool Dishwasher Screw |
| 18 | Handle, Oven Door |
