RS600BXK1 01 – SECTION

RS600BXK1 01 – SECTION

Written by

in

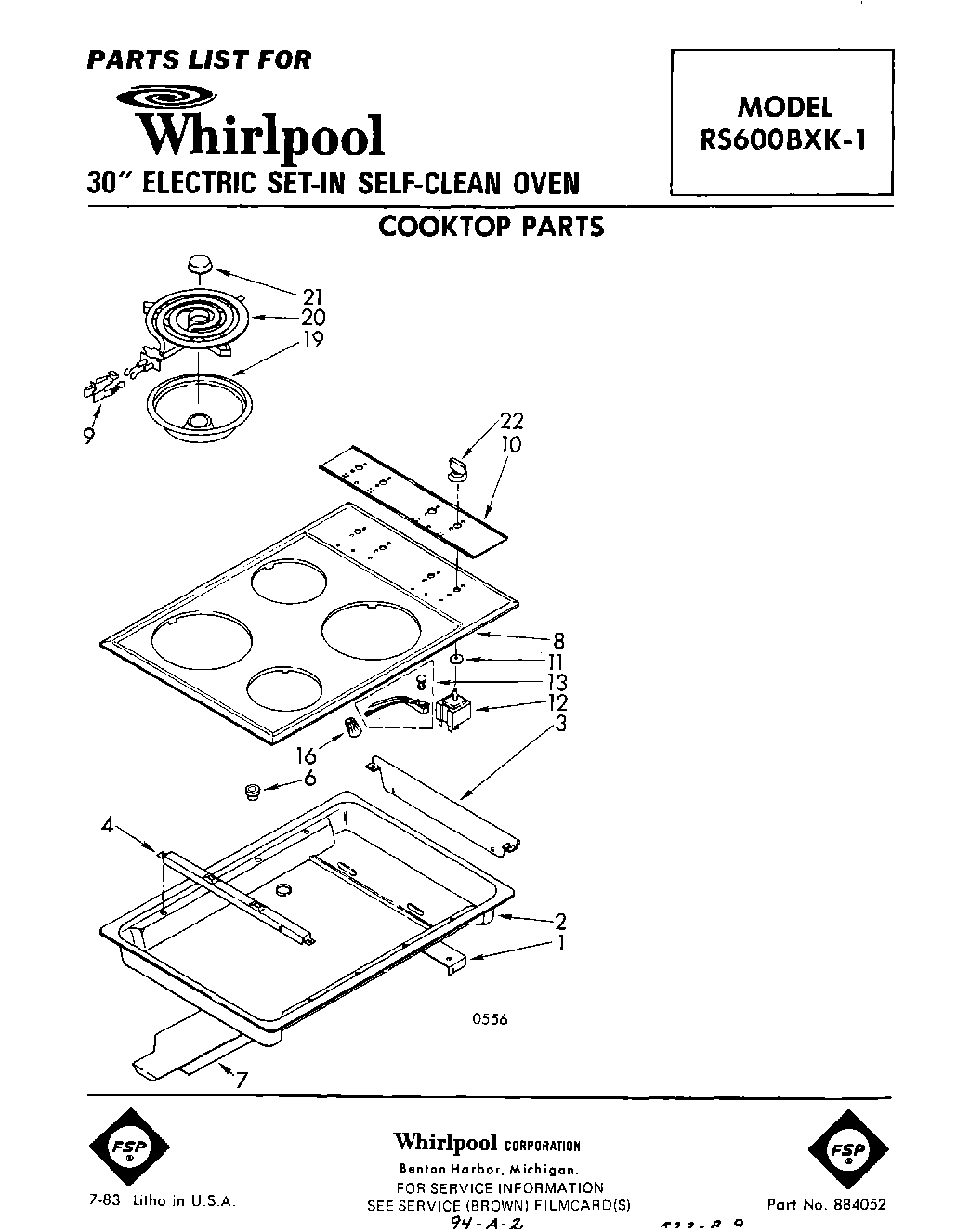

RS600BXK1 01 – SECTION

Products

PositionProduct
1Support, Box
2Burner Box
3Shield, Switch
4Support, Cooktop
4WP488787 Whirlpool Refrigerator Screw
6WPL 258109
7WP308685 Whirlpool Microwave Screw
7Cover, Top Rear
8Screw
8Cooktop, Chrome
9WP313808 Whirlpool Screw
9BURNER RECEPTACLE KIT
10Panel, Control
11Seal, Switch Shaft (2)
12Switch, Infinite (Screw, 8-32 x 5/16 (8))
12W10900107 Whirlpool Oven Surface Element Switch
13Indicator Light (2) (Includes Lens)
16Connector, Wire
19WPW10196406 Whirlpool 6" Chrome Drip Bowl
19DRIP BOWL 8" W/HOLE CHROME
20WP660532 Whirlpool Oven Surface Element
20WP660533 Whirlpool Oven 8" Surface Element
21Medallion (4)
22WP330190 Whirlpool Knob
