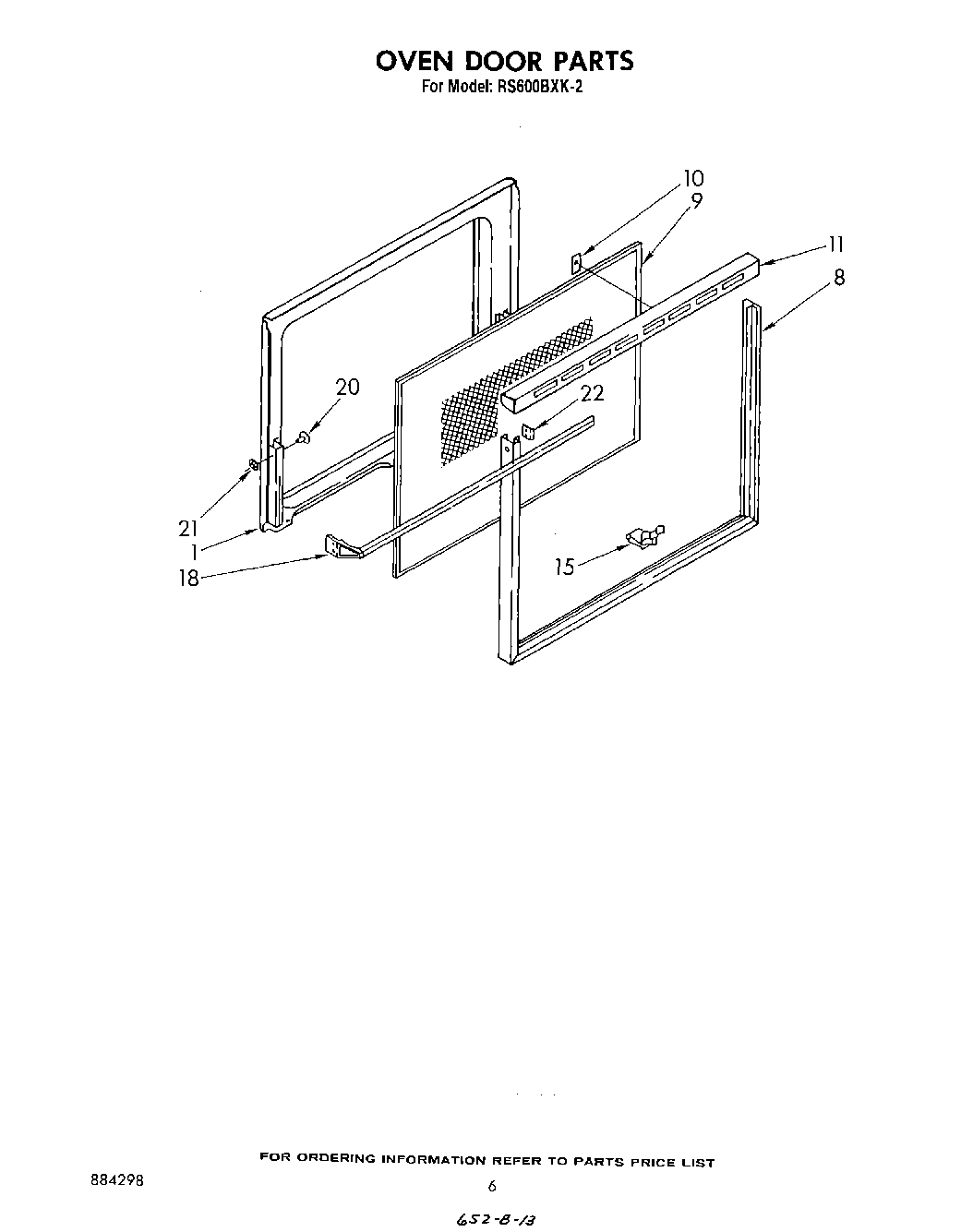

RS600BXK2 04 – OVEN DOOR

Written by

Products

Position	Product
1	WP308685 Whirlpool Microwave Screw
1	Liner, Door
1	WP912618 Whirlpool Dishwasher Screw
8	frame, door 30“
9	Glass, Outer
10	hold down, glass (2)
11	Top, Door Frame
11	Screw, 10A x 1/2 (2) (Black)
15	clip, glass (10)
15	WP90296 Whirlpool Clip
18	Handle, Oven Door
20	pin, wedge (2)
21	pushnut (2)
22	Clip (2)
22	WP355515 Whirlpool Screw
