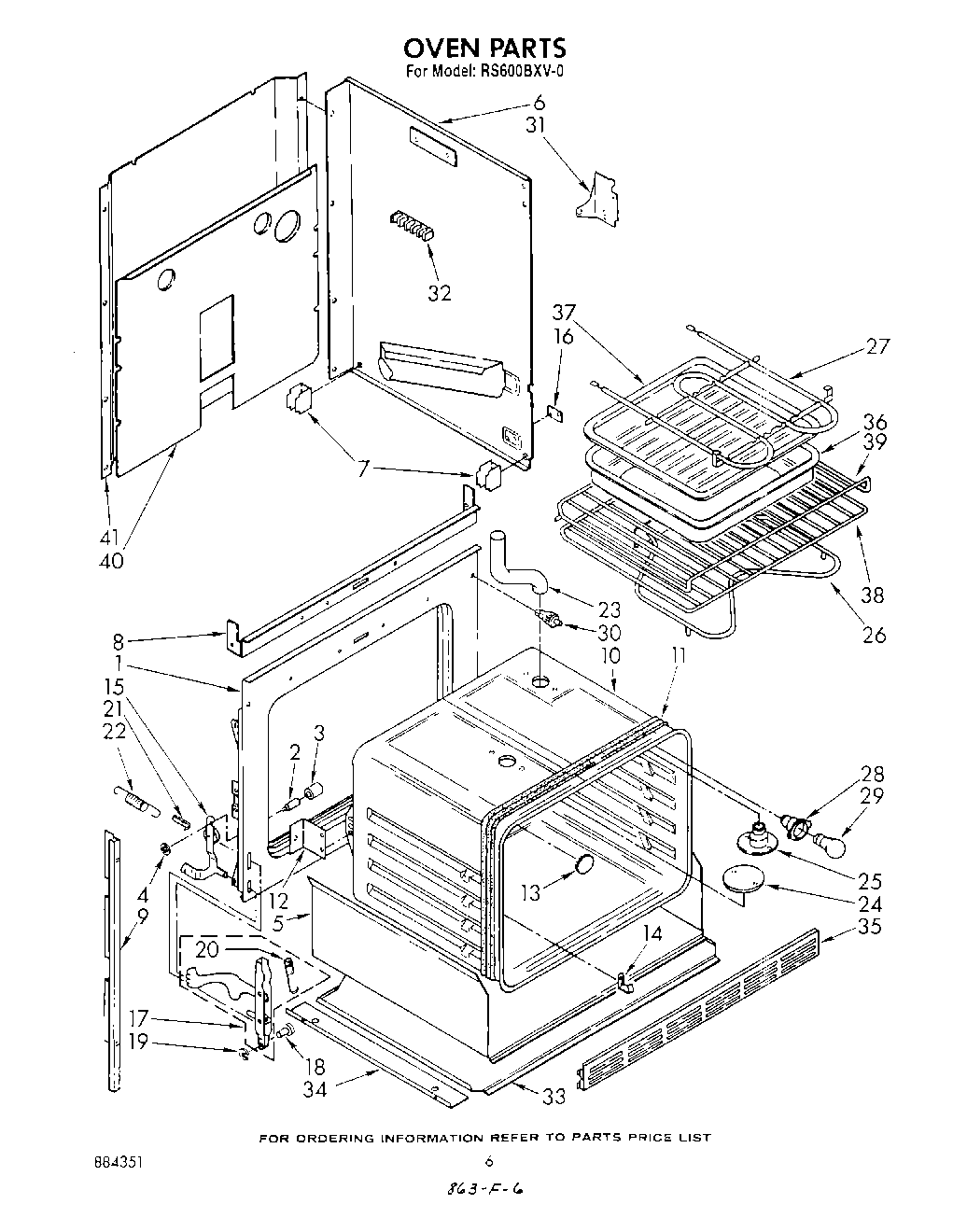

RS600BXV0 05 – OVEN

RS600BXV0 05 – OVEN

Written by

in

RS600BXV0 05 – OVEN

Products

PositionProduct
WPL 312318
1Frame, Front
2Pin, Hinge Ear (2)
3Snubber, Door (2)
4Pushnut (2)
5Insulation Tray
6Side Wrapper (Right Side)
6Side Wrapper (Left Side)
7Support, Side Wrapper (4)
8Baffle, Top Insulation
9WP313808 Whirlpool Screw
9Side Trim (Left Side)
9Side Trim (Right Side)
10Screw (3)
10Oven, 30“ Standard Clean
11Heat Seal
12Bracket, Oven Mounting (2)
13Plug Button
1498005642 Whirlpool Clip
15Hinge Ear, R.H.
15Hinge Ear, L.H.
16WP308544 Whirlpool Screw
16Plate, Side Panel (2)
17Channel Arm (2)
18WP307986 Whirlpool Hinge Pin
19Retainer Ring (2)
20Spring, Door Stop (2)
21WP308125 Whirlpool Microwave Range/Cooktop Anchor
22Spring, Oven Door (2)
23Tube, Vent Extension
23SCREW
24Eliminator, Smoke
25WPL 310662
26ELMNT-BAKE
27WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
28Socket, Oven Light
29RANGE ONLY 40W 120V APPL BULB
30Switch, Door
31Cover, Side (Left Hand)
31WP488729 Whirlpool Refrigerator Door Screw
31Cover, Side (Right Hand)
32WP8203546 Whirlpool Terminal Block
32WP112432 Whirlpool Nut Assembly
32Screw (10-12 x .875)
33WPL 310458
34Angle, Support (2)
35Grill, Bottom
35Grill, Bottom (Screw (3))
374396923 Whirlpool Broil Pan Set Gray Porcelain
38WPL 308173
39WPL 308172
40Panel, Back (2)
41Cover, Rear
