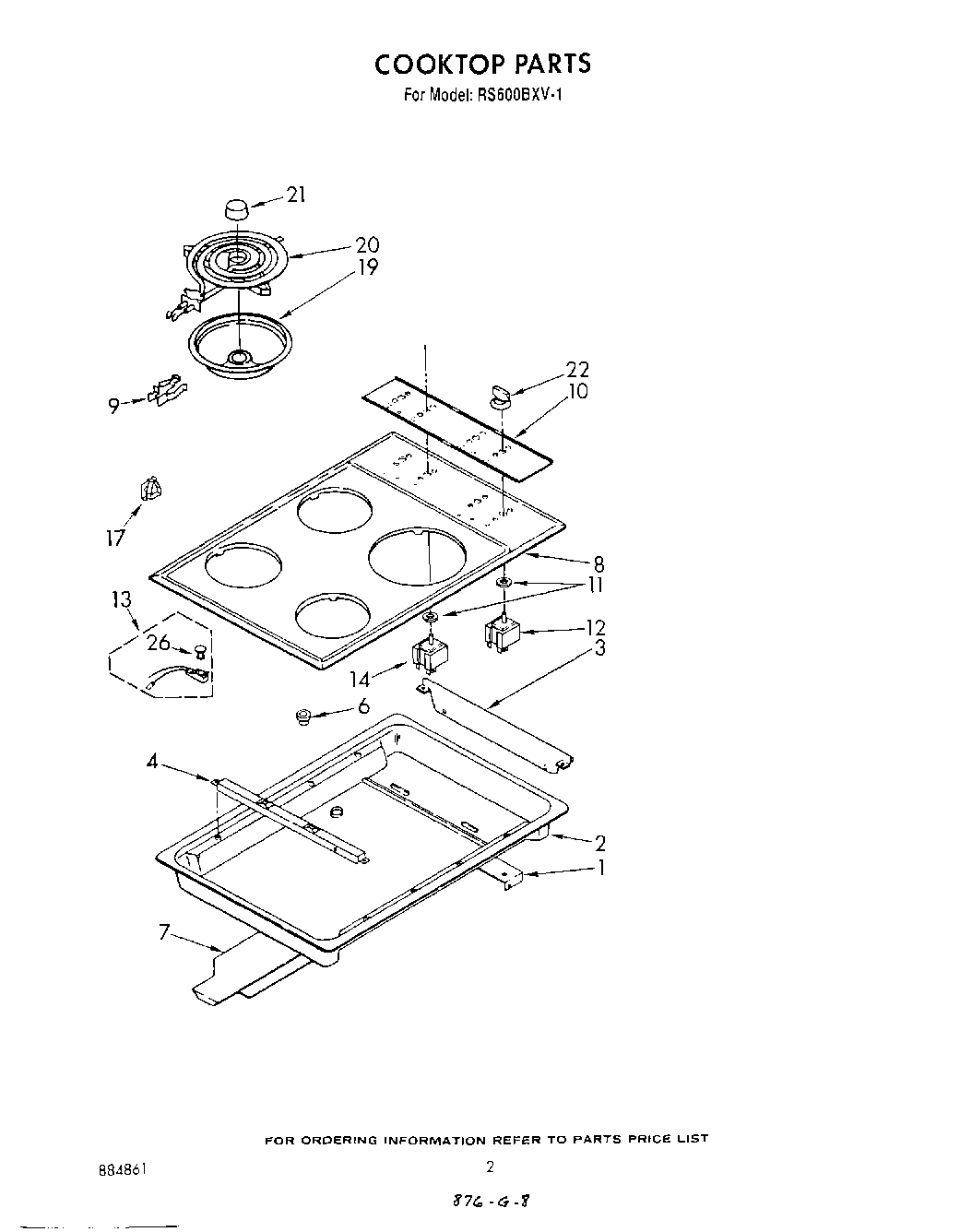

RS600BXV1 02 – COOKTOP

Products

Position	Product
	Repair Parts List
	WPL LIT3147390
	WPL LIT3148321
	WPL LIT313358
	WP660533 Whirlpool Oven 8" Surface Element
1	Support, Box
2	Burner Box
3	Shield, Switch
4	Support, Cooktop
6	WPL 258109
7	WP488729 Whirlpool Refrigerator Door Screw
7	Cover, Top Rear
7	WPL 312318
8	Screw
8	Cooktop, Brushed Chrome
9	WP313808 Whirlpool Screw
10	Panel, Control
11	Seal, Switch Shaft (2)
12	W10900107 Whirlpool Oven Surface Element Switch
13	Indicator, Light (Includes No. 14)
14	WP486579 Whirlpool Air Conditioner Screw
14	Switch, Infinite (8“ Unit (2))
16	Connector, Wire
17	814103 Whirlpool Clip
18	BURNER RECEPTACLE KIT
19	WPW10196406 Whirlpool 6" Chrome Drip Bowl
19	DRIP BOWL 8" W/HOLE CHROME
20	WP660532 Whirlpool Oven Surface Element
21	Medallion (4)
22	Knob, Control
26	Lens, Light
