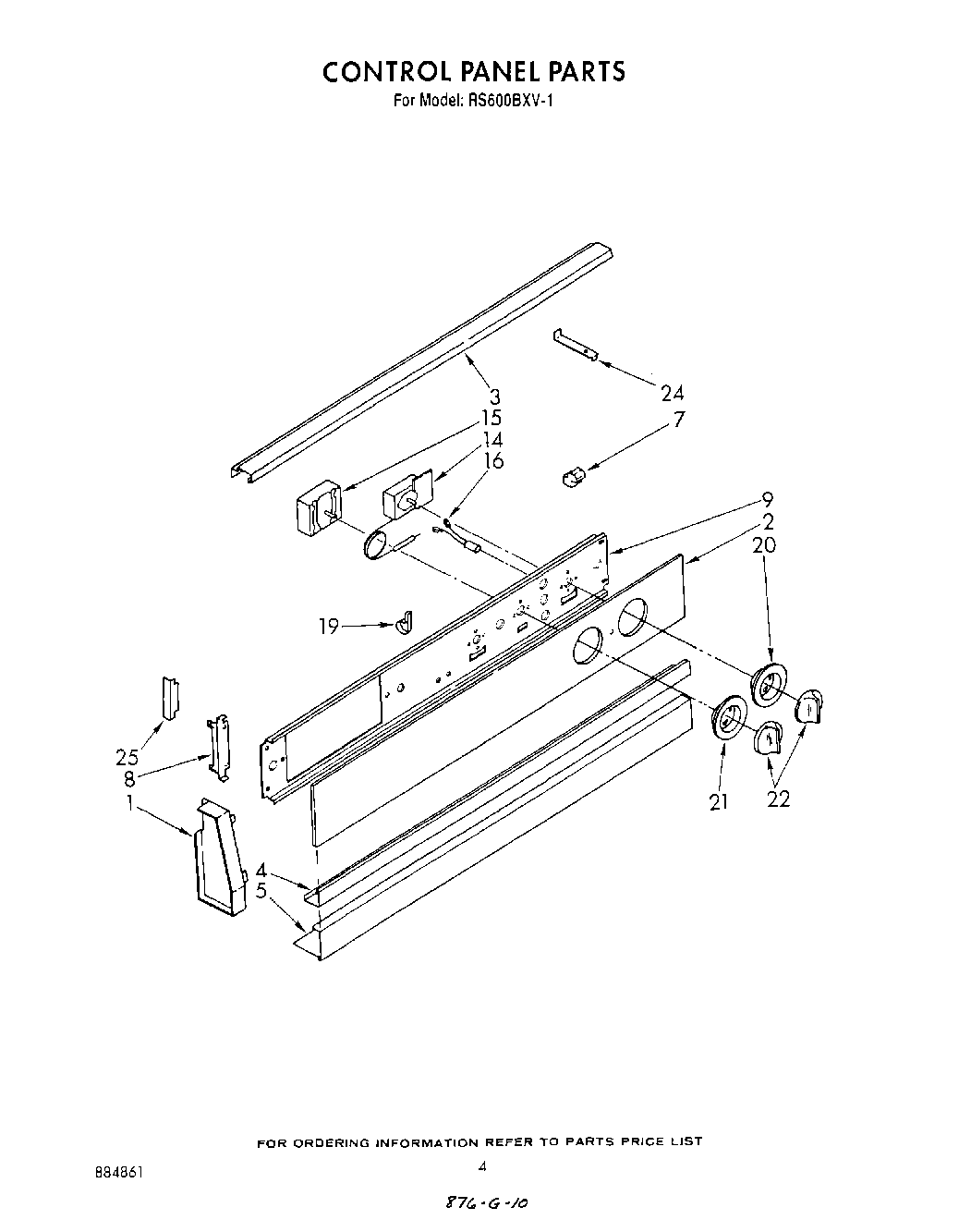

RS600BXV1 04 – CONTROL PANEL , LIT/OPTIONAL

Products

PositionProduct
Golden Harvest (Uncut)
511873 Whirlpool Refrigerator Paint
Almond (Uncut)
screw, 6-32 x 1/4 (2)
799344 Whirlpool Refrigerator Paint
Enamel, Coffee (1 Qt. Uncut)
Enamel, New Avocado (1 Qt. Uncut)
1Screw (2)
1End Cap (L.H.)
1End Cap (R.H.)
2Control Panel, Glass
3Rail, Top
4Trim, Center
5Rail, Bottom
5WP965173 Whirlpool Dishwasher Screw
5Screw, 10-32 x 1/2
7Retainer, Glass (4)
8Bracket, Control (2)
9Bracket, Control
9Clip
9Screw (2)
14Thermostat, Oven (Alt.)
14Thermostat, Oven
14Thermostat, Oven (Alt.)
15Switch, Selector
15WP486579 Whirlpool Air Conditioner Screw
16Indicator Light (4)
19Screw
19WP308605 Whirlpool Refrigerator Clamp
20Escutcheon, Thermostat
21Escutcheon, Selector
21Screw,
22WP3150371 Whirlpool Control Knob
24Support, Rail
25WPL 261880
25WPL 799351
25Grease
25350930 Whirlpool White Spray Paint
25Screw
25242831 Whirlpool Oven Wire
25Trim, End Cap (Black)
25Leveler (Thinner) (2oz.)
25Screw, 10A x 1/2 (2) (Black)
25285006 Whirlpool Spray
25Wire, 25“ Roll (White 14 GA.)
25Wire, 25` Roll (Red 14 Ga.)
25Wire, 25` Roll (Black 14 Ga.)
25FOIL, ALUMINUM OVEN (18“ X 25 )
25WPL 799832
25350942 Whirlpool Spray Paint
25Golden Harvest
2572110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
25WP72107 Whirlpool Touchup
2572017 Whirlpool Appliance Touch-Up Paint White
2572109 Whirlpool Dacor Avocado Touch-Up Paint
25Paint, Touch-Up 1/2 Oz. (Coffee)
25paint, spray 13 oz. (coffee)
251
25Wire (14 Ga. 200 c Brown)
2518 Ga. 80~c Rating (Red)
25Wire (12 Ga. 150 c Black)
25Wire (14 Ga. 150 c Yellow)
25Wire (14 Ga. 150 c Orange)
25Wire (14 Ga. 150 c Green)
25Wire (14 Ga. 150 c Brown)
25Wire (14 Ga. 150 c Blue)
25Touch-Up Oven (1 Oz.)
25Paint, Spray 13 Oz. (Avocado)
25350956 Whirlpool Spray Assembly
