RS600BXV2 02 – COOKTOP

Products

PositionProduct

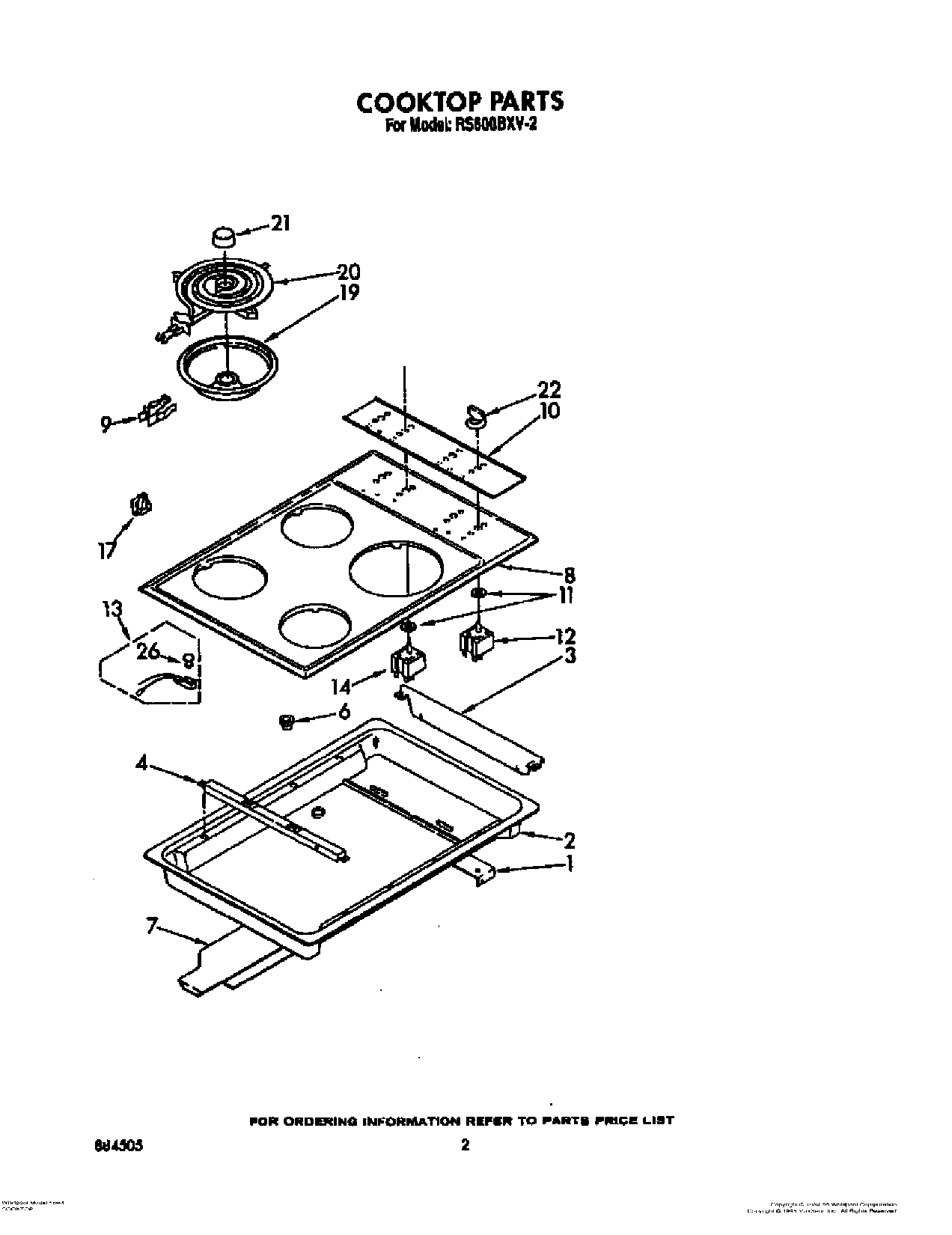

Repair Parts List
WP660533 Whirlpool Oven 8" Surface Element
WPL LIT313358
WPL LIT3148321
WPL LIT3147390
NOTE: The screws and nuts required to attach a part are listed immediately following that part.
1Support, Box
2Burner Box
3Shield, Switch
4Support, Cooktop
6WPL 258109
7WP488729 Whirlpool Refrigerator Door Screw
7Cover, Top Rear
8Screw
8Cooktop, Brushed Chrome
9BURNER RECEPTACLE KIT
10Panel, Control
11Seal, Switch Shaft (2)
12W10900107 Whirlpool Oven Surface Element Switch
13Indicator, Light (Includes No. 14)
14Switch, Infinite (8“ Unit (2))
14WP486579 Whirlpool Air Conditioner Screw
17814103 Whirlpool Clip
17Screw, 6-32 x 9/32 (4)
19DRIP BOWL 8" W/HOLE CHROME
19WPW10196406 Whirlpool 6" Chrome Drip Bowl
20WP660532 Whirlpool Oven Surface Element
21Medallion (4)
22Knob, Control
26Lens, Light
