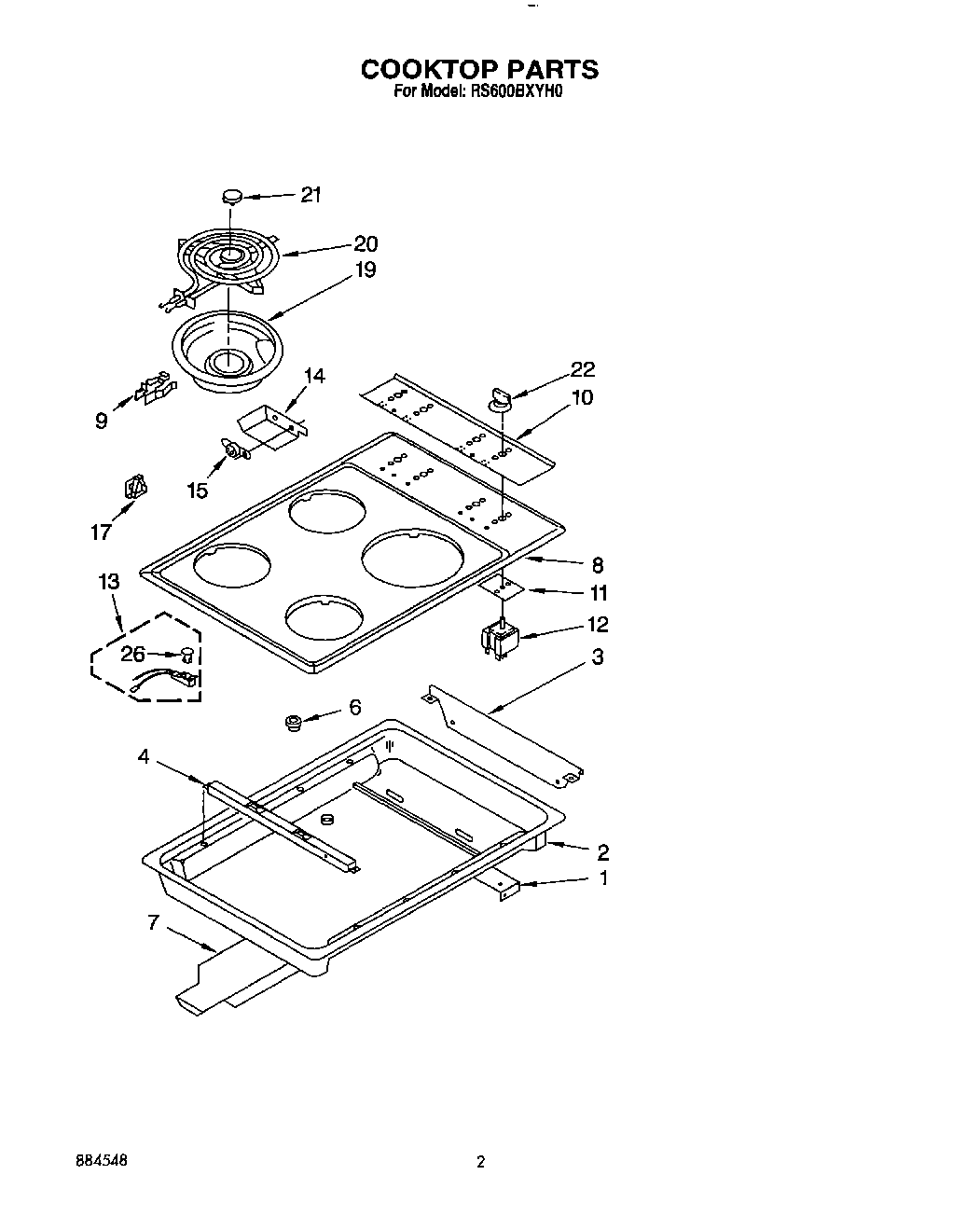

RS600BXYH0 02 – COOKTOP AND CONTROL PANEL, LIT/OPTI

Products

PositionProduct
Repair Parts List
Use & Care Guide
Tech Sheet
Installation Instructions
WPL 3171507
1Support, Box
2Burner Box
3Shield, Switch
4Support, Cooktop
6WPL 258109
7Cover, Top Rear
7WP488729 Whirlpool Refrigerator Door Screw
8Cooktop (Brushed Chrome)
8Screw
9BURNER RECEPTACLE KIT
10Panel, Control
113183956 Whirlpool Oven Seal Switch
12WP486579 Whirlpool Air Conditioner Screw
12WP3148966 Whirlpool Infinite Switch
12Switch, Infinite (Use W/6“ Surface Unit (2))
13Indicator, Light (Includes No. 14)
14Bracket, Sensor
15Thermostat
15WP313808 Whirlpool Screw
17814103 Whirlpool Clip
19WPW10196406 Whirlpool 6" Chrome Drip Bowl
19DRIP BOWL 8" W/HOLE CHROME
20WP660533 Whirlpool Oven 8" Surface Element
20WP660532 Whirlpool Oven Surface Element
21Medallion (4)
22Knob, Control (4)
26Lens, Light
