RS600BXYH0 04 – DOOR AND BROILER

Written by

Products

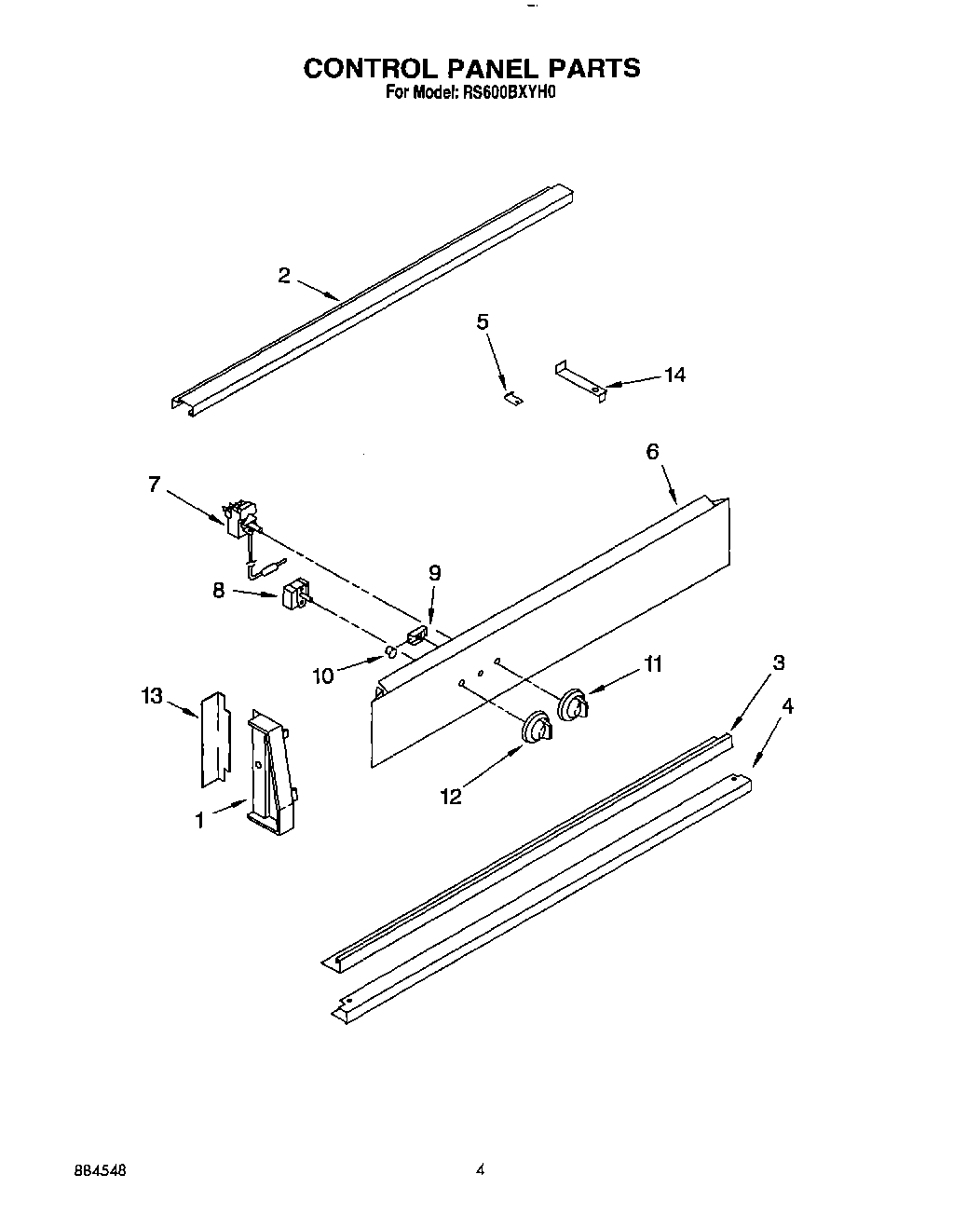

Position	Product
1	End Cap (R.H.)
1	End Cap (L.H.)
2	Rail, Top
3	Trim, Center
4	Screw (2)
4	Trim, Bottom
5	Screw, 10-32 x 1/2
5	Bracket, Support
6	Panel, Control
7	Thermostat, Oven
7	WP313808 Whirlpool Screw
8	Switch, Selector
8	WP486579 Whirlpool Air Conditioner Screw
9	Light, Indicator (250V)
10	Lens, Amber
11	Knob, Thermostat
12	Knob, Selector (White/Almond/Gold)
13	Trim, End Cap (Black)
14	Wire (14 Ga. 200 c Brown)
14	1
14	paint, spray 13 oz. (coffee)
14	Enamel, Coffee (1 Qt. Uncut)
14	18 Ga. 80~c Rating (Red)
14	Enamel, New Avocado (1 Qt. Uncut)
14	Leveler (Thinner) (2oz.)
14	Grease
14	WPL 799351
14	Support, Rail
14	Golden Harvest
14	Wire (12 Ga. 150 c Black)
14	Wire (14 Ga. 150 c Yellow)
14	Wire (14 Ga. 150 c Orange)
14	WPL 799832
14	350942 Whirlpool Spray Paint
14	WP965173 Whirlpool Dishwasher Screw
14	Golden Harvest (Uncut)
14	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
14	Almond (Uncut)
14	WP72107 Whirlpool Touchup
14	799344 Whirlpool Refrigerator Paint
14	72017 Whirlpool Appliance Touch-Up Paint White
14	350956 Whirlpool Spray Assembly
14	FOIL, ALUMINUM OVEN (18“ X 25 )
14	Wire, 25` Roll (Black 14 Ga.)
14	Wire, 25` Roll (Red 14 Ga.)
14	Wire (14 Ga. 150 c Green)
14	Wire (14 Ga. 150 c Brown)
14	Wire (14 Ga. 150 c Blue)
14	242831 Whirlpool Oven Wire
14	Touch-Up Oven (1 Oz.)
14	Paint, Spray 13 Oz. (Avocado)
14	Paint, Touch-Up 1/2 Oz. (Coffee)
14	72109 Whirlpool Dacor Avocado Touch-Up Paint
14	285006 Whirlpool Spray
14	Wire, 25“ Roll (White 14 GA.)
14	350930 Whirlpool White Spray Paint
