RS600BXYH0 05 – OVEN

RS600BXYH0 05 – OVEN

Written by

in

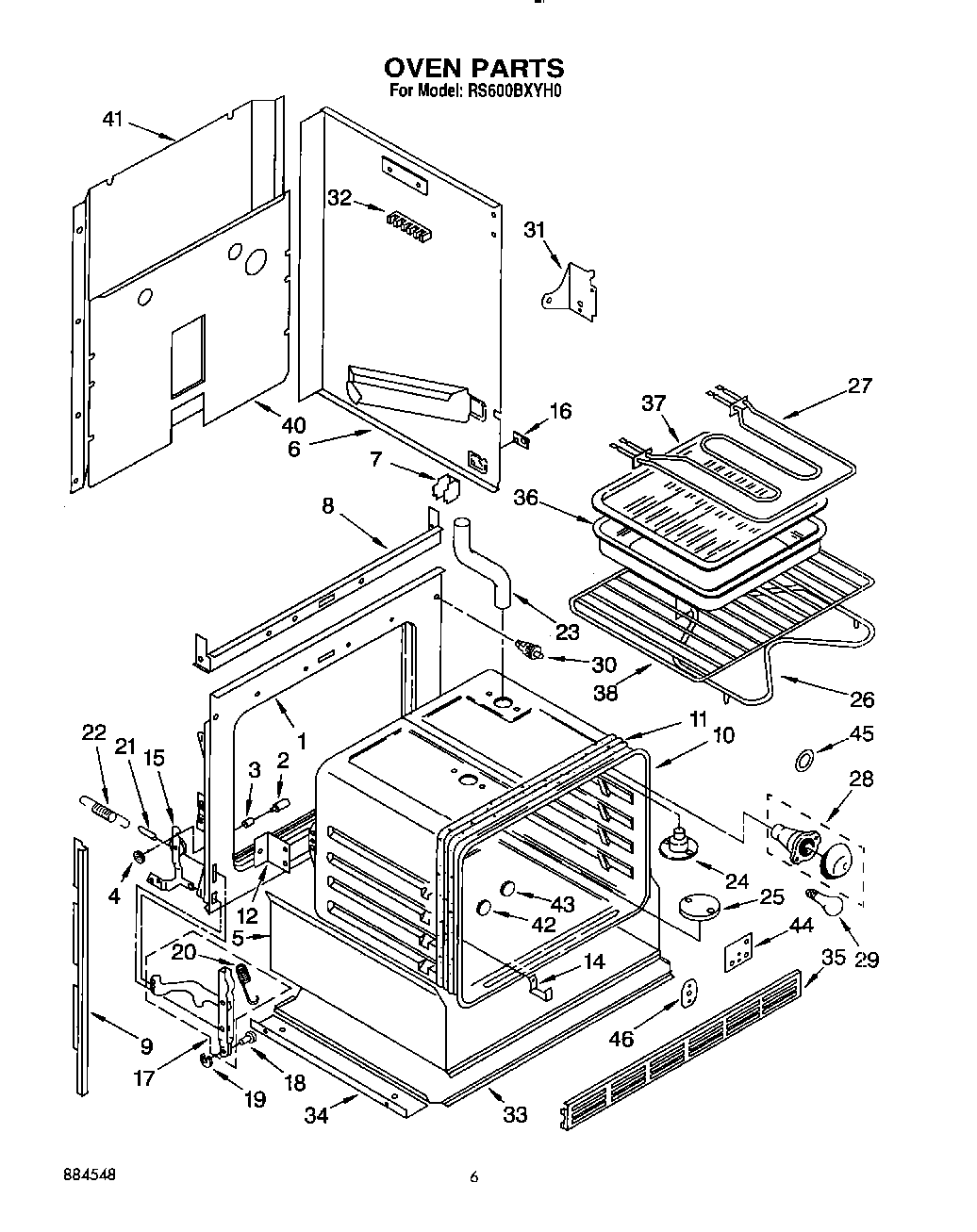

RS600BXYH0 05 – OVEN

Products

PositionProduct
WPL 312318
1Frame, Front
2Pin, Hinge Ear (2)
3Snubber, Door (2)
4Pushnut (2)
5Insulation Tray
6Side Wrapper (Right Side)
6Side Wrapper (Left Side)
7Support, Side Wrapper (4)
8Baffle, Top Insulation
9Side Trim (Right Side)
9Side Trim (Left Side)
10Screw (3)
10Oven 30“
11Heat Seal
12WP489069 Whirlpool Compactor Screw
12Bracket, Oven Mounting (2)
1498005642 Whirlpool Clip
15Hinge Ear, R.H.
15Hinge Ear, L.H.
16WP308544 Whirlpool Screw
16Plate, Side Panel (2)
17Channel Arm (2)
18WP307986 Whirlpool Hinge Pin
19Retainer Ring (2)
20Spring, Door Stop (2)
21WP308125 Whirlpool Microwave Range/Cooktop Anchor
22Spring, Oven Door (2)
23SCREW
23Tube, Vent Extension
24Eliminator, Smoke
25WPL 310662
26ELMNT-BAKE
27WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
28W11594027 Whirlpool Range Oven Light Socket
29RANGE ONLY 40W 120V APPL BULB
30Switch, Door
31Cover, Side (Right Hand)
31Cover, Side (Left Hand)
32WP8203546 Whirlpool Terminal Block
32Screw (10-12 x .875)
32WP112432 Whirlpool Nut Assembly
33WPL 310458
34Angle, Support (2)
35Grill, Bottom (Screw (3))
35Grill, Bottom
374396923 Whirlpool Broil Pan Set Gray Porcelain
38WPL 308173
40Panel, Back
41Cover, Rear
42Button, Plug
43WPL 3169107
44WPL 3183005
45WP3184533 Whirlpool Range Light Lens Gasket
46WP488729 Whirlpool Refrigerator Door Screw
46Plate, Cover
46Insulation, Wrap
46Insulation, Back
