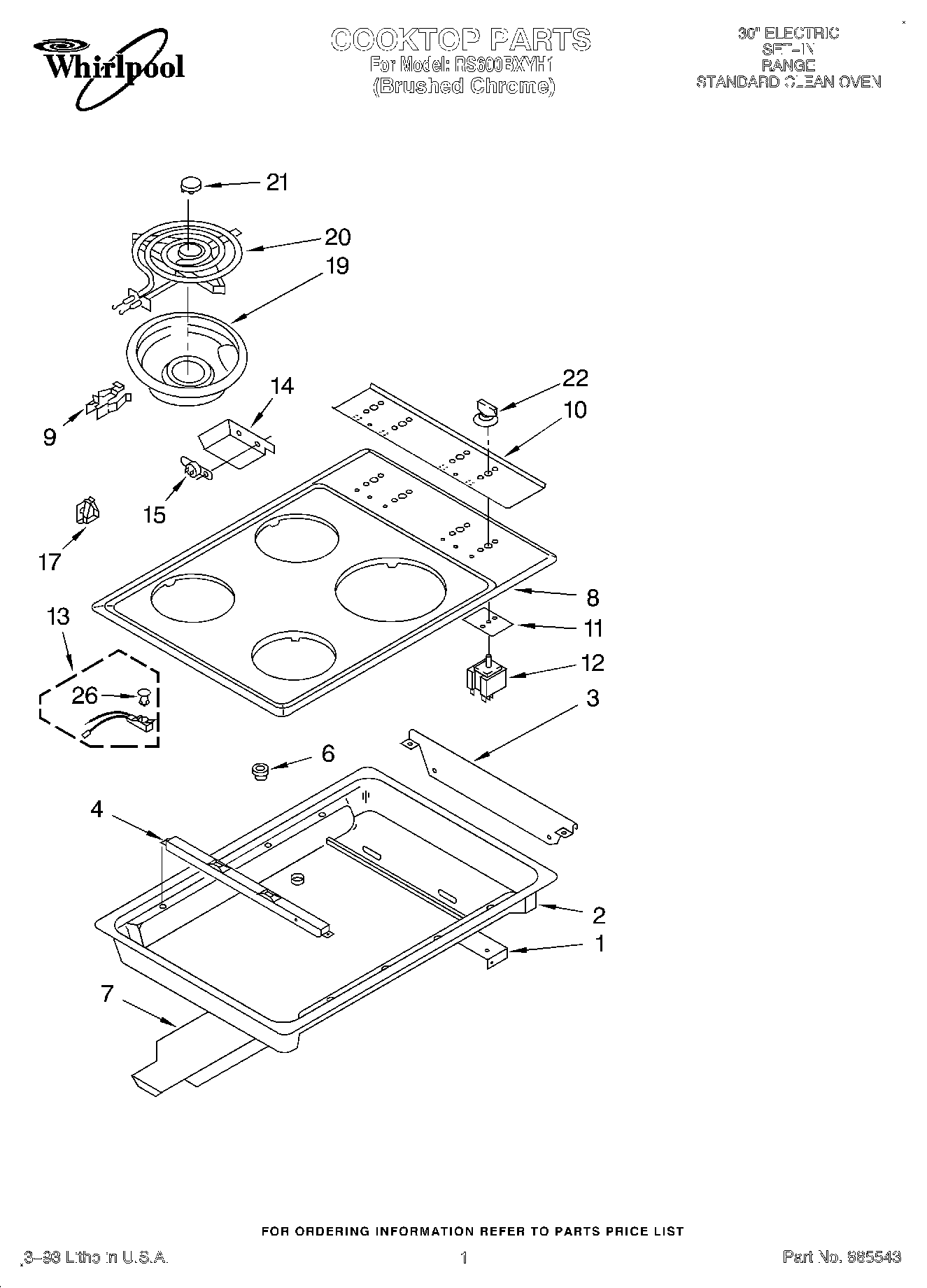

RS600BXYH1 01 – COOKTOP, LIT/OPTIONAL

Products

Position	Product
	Repair Parts List
	Use & Care Guide
	Tech Sheet
	Brochure
	Installation Instructions
	WPL 3171507
1	Support, Box
2	Box, Burner
3	Shield, Switch
4	Support, Cooktop
6	WPL 258109
7	WP488729 Whirlpool Refrigerator Door Screw
7	Cover, Top Rear
8	Screw
8	Cooktop (Brushed Chrome)
9	BURNER RECEPTACLE KIT
10	Panel, Control
11	3183956 Whirlpool Oven Seal Switch
12	Switch, Infinite (Use W/6“ Surface Unit (2))
12	WP486579 Whirlpool Air Conditioner Screw
12	WP3148966 Whirlpool Infinite Switch
13	Indicator, Light (Includes No. 14)
14	Bracket, Sensor
15	Thermostat
15	WP313808 Whirlpool Screw
17	814103 Whirlpool Clip
19	WPW10196406 Whirlpool 6" Chrome Drip Bowl
19	DRIP BOWL 8" W/HOLE CHROME
20	WP660533 Whirlpool Oven 8" Surface Element
20	WP660532 Whirlpool Oven Surface Element
21	Medallion (4)
22	Knob, Control (4)
26	Lens, Light
