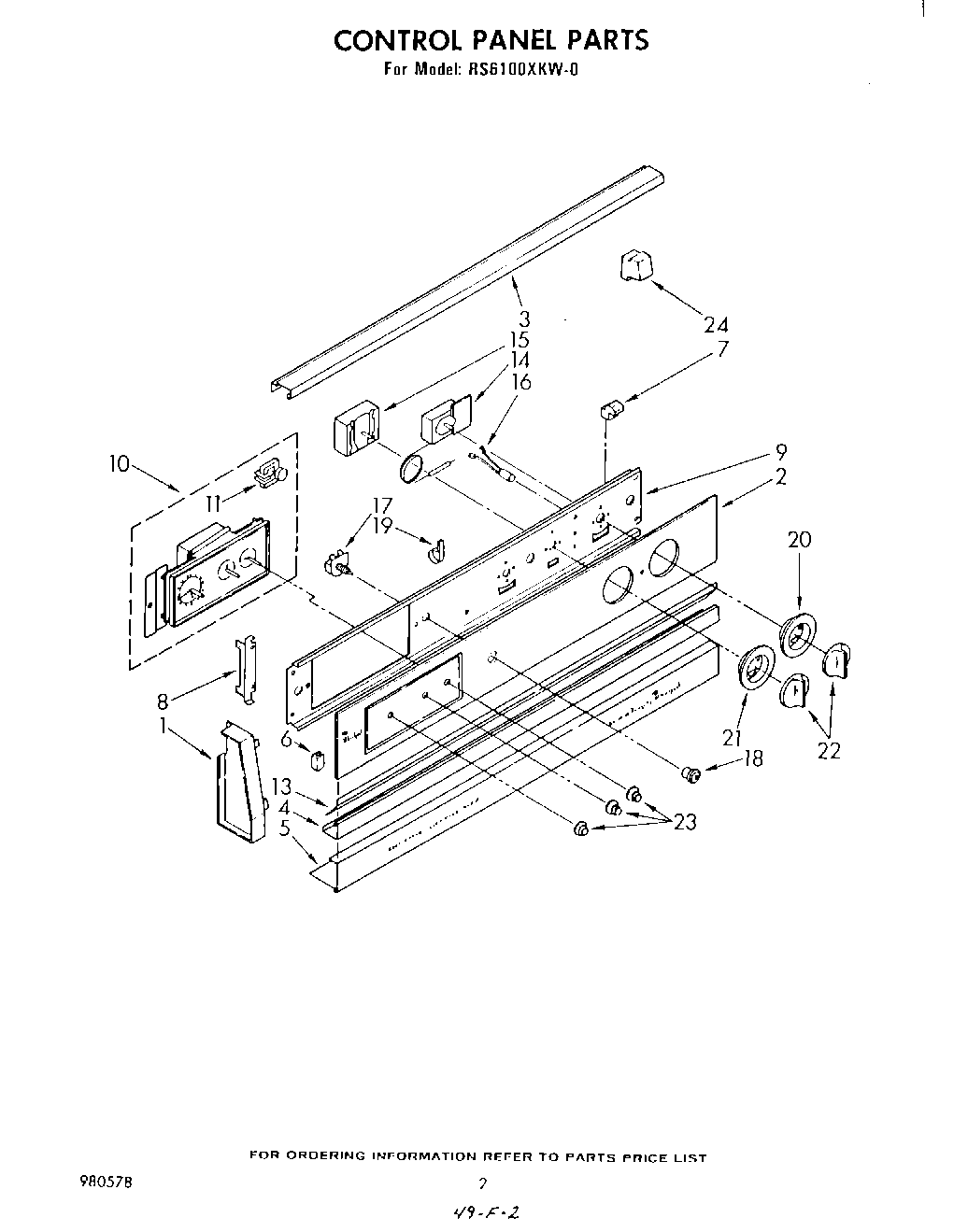

RS6100XKW0 02 – CONTROL PANEL

Products

Position	Product
1	Screw (2)
1	End Cap (L.H.)
1	End Cap (R.H.)
2	Control Panel, Glass
3	Rail, Top
4	Trim, Center
5	Rail, Bottom
5	Screw, 10-32 x 1/2
6	Rubber Channel (2) (Black Model Only)
7	Retainer, Glass (4)
8	Bracket, Control Panel (2)
8	Screw (2)
9	Bracket, Control
10	Timer, Automatic (Alternate)
11	Motor, Timer
13	Seal, Backguard
14	screw, 6-32 x 1/4 (2)
14	Thermostat, Oven (Alt.)
14	Thermostat, Oven (Alt.)
15	Selector Switch (4 Position)
15	WP486579 Whirlpool Air Conditioner Screw
16	Indicator Light (250V)
17	Switch, Oven Light
18	Bezel Switch (1)
19	Screw
19	WP965173 Whirlpool Dishwasher Screw
19	Strain Relief (3)
19	WP308605 Whirlpool Refrigerator Clamp
20	Escutcheon, Thermostat
21	Screw,
21	WP311069 Whirlpool Oven Dial
22	WP3150371 Whirlpool Control Knob
23	WPL 312808
24	Support, Rail
