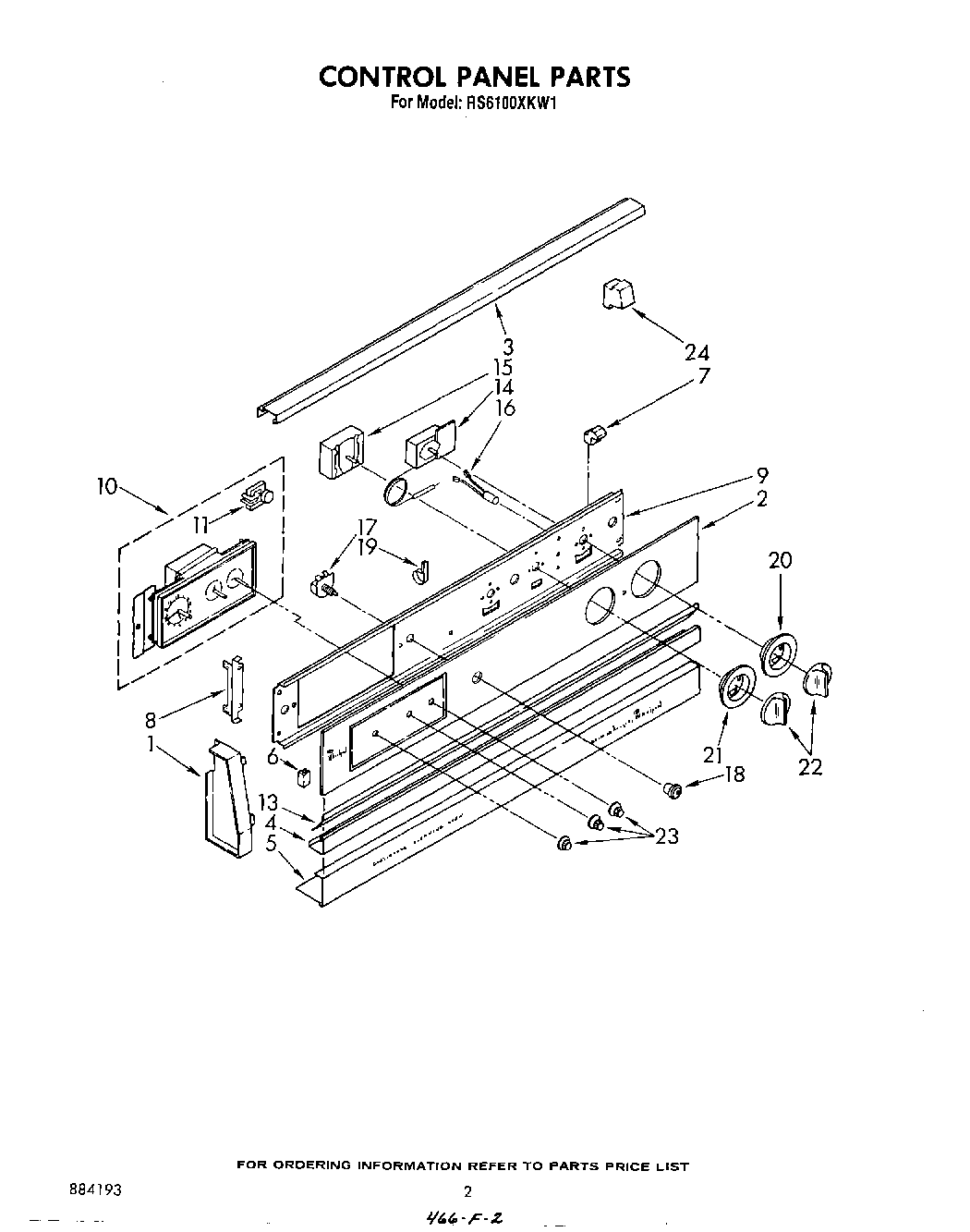

RS6100XKW1 02 – CONTROL PANEL

Products

Position	Product
	screw, 6-32 x 1/4 (2)
1	End Cap (R.H.)
1	End Cap (L.H.)
1	Screw (2)
2	Control Panel, Glass
3	Rail, Top
4	Trim, Center
5	Screw, 10-32 x 1/2
5	Rail, Bottom
6	Rubber Channel (2) (Black Model Only)
7	Retainer, Glass (4)
8	Screw (2)
8	Bracket, Control Panel (2)
9	Bracket, Control
9	Clip
10	Timer, Automatic (Alternate)
11	Motor, Timer
13	Rail, Top (Seal, Backguard)
14	Thermostat, Oven
14	Thermostat, Oven (Alt.)
14	Thermostat, Oven (Alt.)
15	Selector Switch (4 Position)
15	WP486579 Whirlpool Air Conditioner Screw
16	Indicator Light (250V)
17	Lockwasher
17	Switch, Oven Light
18	Bezel Switch (1)
19	WP965173 Whirlpool Dishwasher Screw
19	Screw
19	WP308605 Whirlpool Refrigerator Clamp
20	Escutcheon, Thermostat
21	WP311069 Whirlpool Oven Dial
21	Screw,
22	WP3150371 Whirlpool Control Knob
23	WP3169181 Whirlpool Knob
23	Spring (3)
24	Support, Rail
