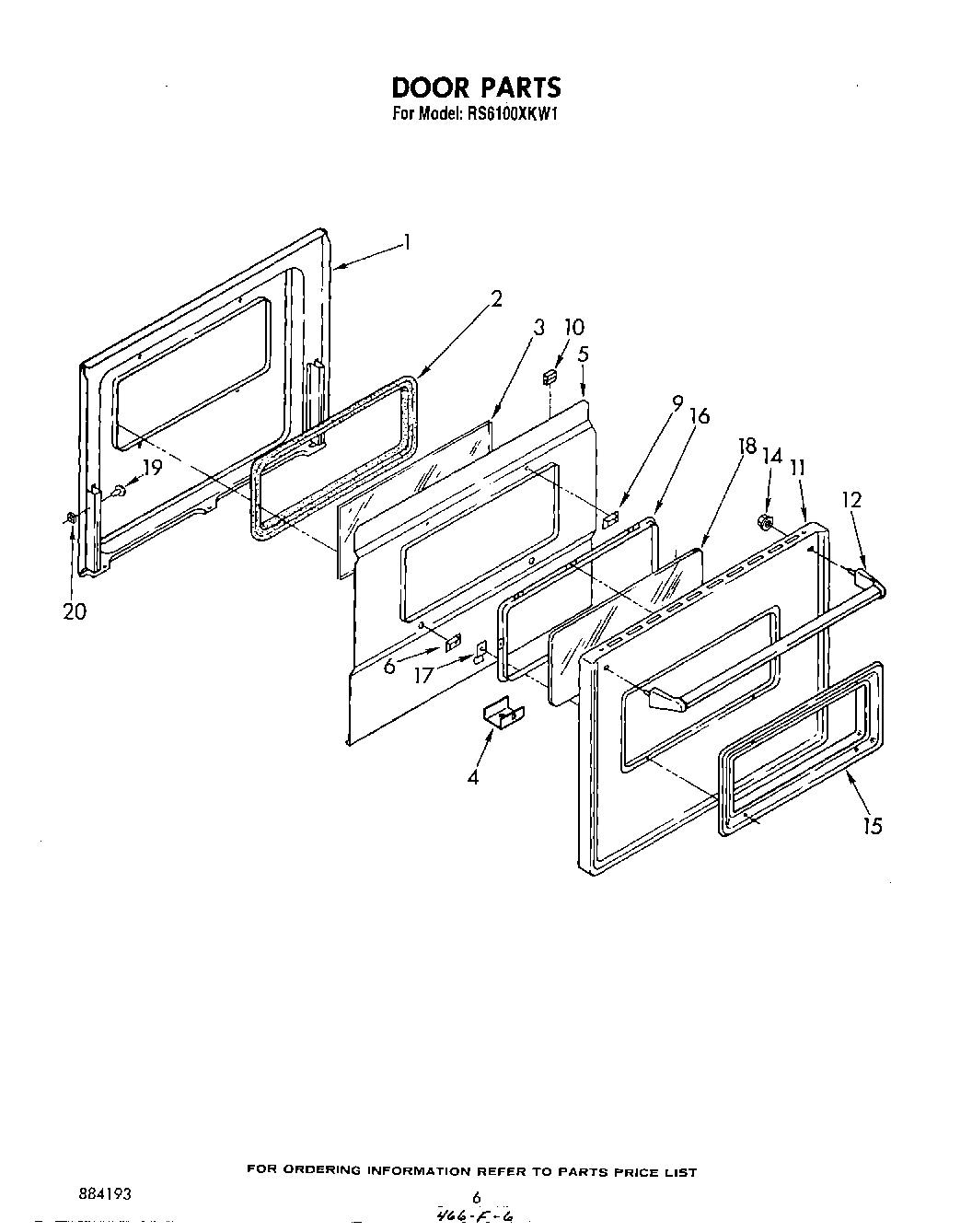

RS6100XKW1 04 – DOOR

Products

Position	Product
	511873 Whirlpool Refrigerator Paint
	WPL LIT311433
	WPL LIT311409
	WPL LIT313358
	WPL LIT884193
1	Liner, Door
1	Screw (3)
1	WP488627 Whirlpool Refrigerator Screw
2	seal, pano glass
3	glass, inner 30“
4	Spacer, Baffle (2)
5	baffle, insulation
6	Screw, 10A x 1/2 (2) (Black)
9	spacer, insulation baffle (4)
9	WP308685 Whirlpool Microwave Screw
10	Channel, Rubber (4)
11	Panel, Door (Platinum)
11	Panel, Door (Toast)
11	Panel, Door (White)
11	Screw
11	Panel, Door (Harvest Gold)
11	Panel, Door (Almond)
12	Handle, Oven Door
14	WP308499 Whirlpool Nut
15	Frame, Window
16	Retainer, Glass
17	Clip, Frame
18	Hinge-Lt. or Rt.
18	Glass, Outer
19	pin, wedge (2)
20	1
20	pushnut (2)
20	Golden Harvest (Uncut)
20	paint, spray 13 oz. (coffee)
20	Enamel, Coffee (1 Qt. Uncut)
20	Rotisserie Kit (RCK 81)
20	Enamel, New Avocado (1 Qt. Uncut)
20	console
20	Leveler (Thinner) (2oz.)
20	Grease
20	Wire (14 Ga. 200 c Brown)
20	18 Ga. 80~c Rating (Red)
20	WPL 799832
20	350942 Whirlpool Spray Paint
20	WPL 72112
20	Platinum (Uncut)
20	Enamal, Toast (1 Qt. Uncut)
20	Paint, Spray (13 Oz.) (Platinum)
20	Toast
20	Golden Harvest
20	72113 Whirlpool Touch-Up Paint
20	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
20	Almond (Uncut)
20	WP72107 Whirlpool Touchup
20	799344 Whirlpool Refrigerator Paint
20	72017 Whirlpool Appliance Touch-Up Paint White
20	350956 Whirlpool Spray Assembly
20	WPW10208653 Whirlpool Insulation
20	FOIL, ALUMINUM OVEN (18“ X 25 )
20	Wire (12 Ga. 150 c Black)
20	Wire (14 Ga. 150 c Yellow)
20	Wire (14 Ga. 150 c Orange)
20	Wire (14 Ga. 150 c Green)
20	Wire (14 Ga. 150 c Brown)
20	Wire (14 Ga. 150 c Blue)
20	242831 Whirlpool Oven Wire
20	Touch-Up Oven (1 Oz.)
20	Paint, Spray 13 Oz. (Avocado)
20	Paint, Touch-Up 1/2 Oz. (Coffee)
20	72109 Whirlpool Dacor Avocado Touch-Up Paint
20	285006 Whirlpool Spray
20	Wire, 25“ Roll (White 14 GA.)
20	Wire, 25` Roll (Red 14 Ga.)
20	Wire, 25` Roll (Black 14 Ga.)
20	350930 Whirlpool White Spray Paint
