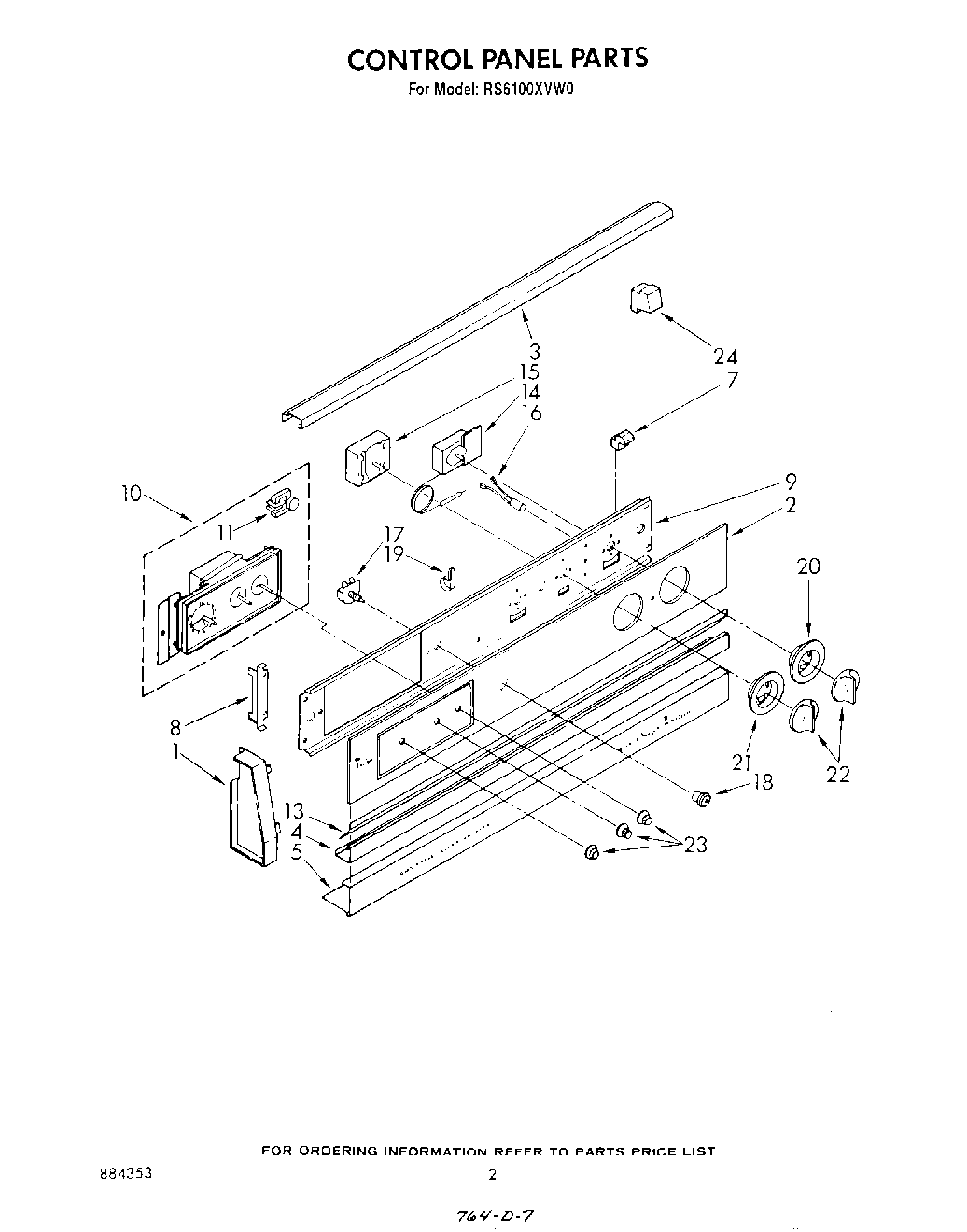

RS6100XVN0 02 – CONTROL PANEL

Products

Position	Product
1	End Cap (R.H.)
1	End Cap (L.H.)
1	Screw (2)
2	Control Panel, Glass
3	Rail, Top
4	Trim, Center
5	Rail, Bottom
5	Screw, 10-32 x 1/2
7	Retainer, Glass (4)
8	Bracket, Control (2)
9	Bracket, Control
9	Clip
10	Screw (2)
10	Timer, Clock (Includes No.6)
11	Motor, Timer
13	Rail, Top (Seal, Backguard)
14	Thermostat, Oven (Alt.)
14	screw, 6-32 x 1/4 (2)
14	Thermostat, Oven
14	Thermostat, Oven (Alt.)
15	Selector Switch (4 Position)
15	WP486579 Whirlpool Air Conditioner Screw
16	Indicator Light (4)
17	Lockwasher
17	Switch, Oven Light
18	Bezel Switch (1)
19	Screw
19	WP308605 Whirlpool Refrigerator Clamp
19	WP965173 Whirlpool Dishwasher Screw
20	Escutcheon, Thermostat
21	WP311069 Whirlpool Oven Dial
21	Screw,
22	WP3150371 Whirlpool Control Knob
23	Spring (3)
23	WP3169181 Whirlpool Knob
24	Support, Rail
