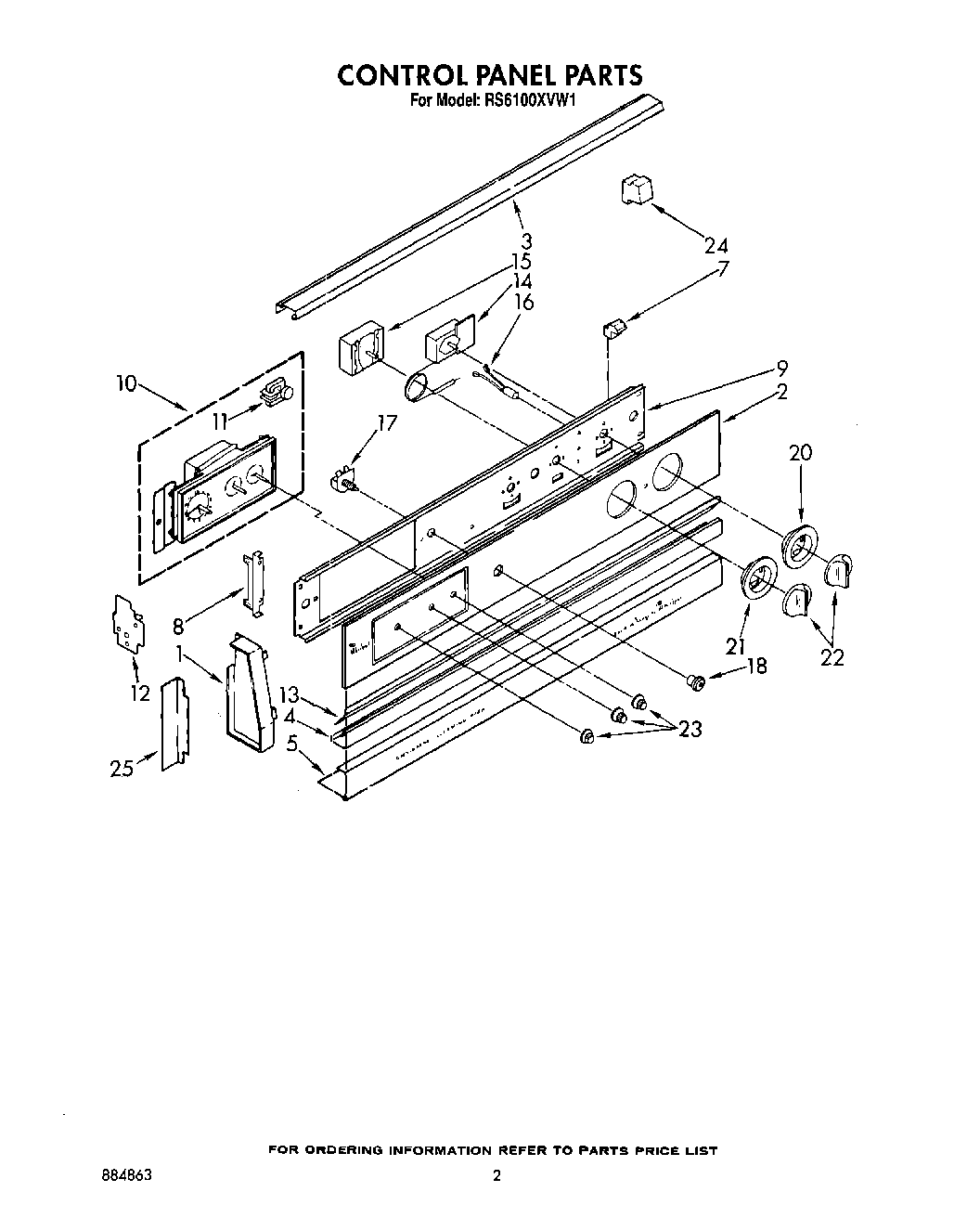

RS6100XVW1 02 – CONTROL PANEL

Products

Position	Product
1	End Cap (L.H.)
1	End Cap (R.H.)
2	Control Panel, Glass
3	Rail, Top
4	Trim, Center
5	Screw, 10-32 x 1/2
5	Rail, Bottom
7	Retainer, Glass (4)
8	Bracket, Control (2)
9	Bracket, Control
9	Clip
10	Screw (2)
10	Timer, Clock (Includes No.6)
11	Motor, Timer
12	Cover, Side (Left Hand)
12	Cover, Side (Right Hand)
13	Rail, Top (Seal, Backguard)
14	Thermostat, Oven
14	screw, 6-32 x 1/4 (2)
15	Switch, Selector (4 Position)
15	WP486579 Whirlpool Air Conditioner Screw
16	Indicator Light (4)
17	WP965173 Whirlpool Dishwasher Screw
17	Switch, Oven Light
17	Lockwasher
18	Bezel Switch (1)
20	Escutcheon, Thermostat
21	Screw,
21	WP311069 Whirlpool Oven Dial
22	WP3150371 Whirlpool Control Knob
23	WP3169181 Whirlpool Knob
23	Spring (3)
24	Support, Rail
25	Trim, End Cap (Black)
