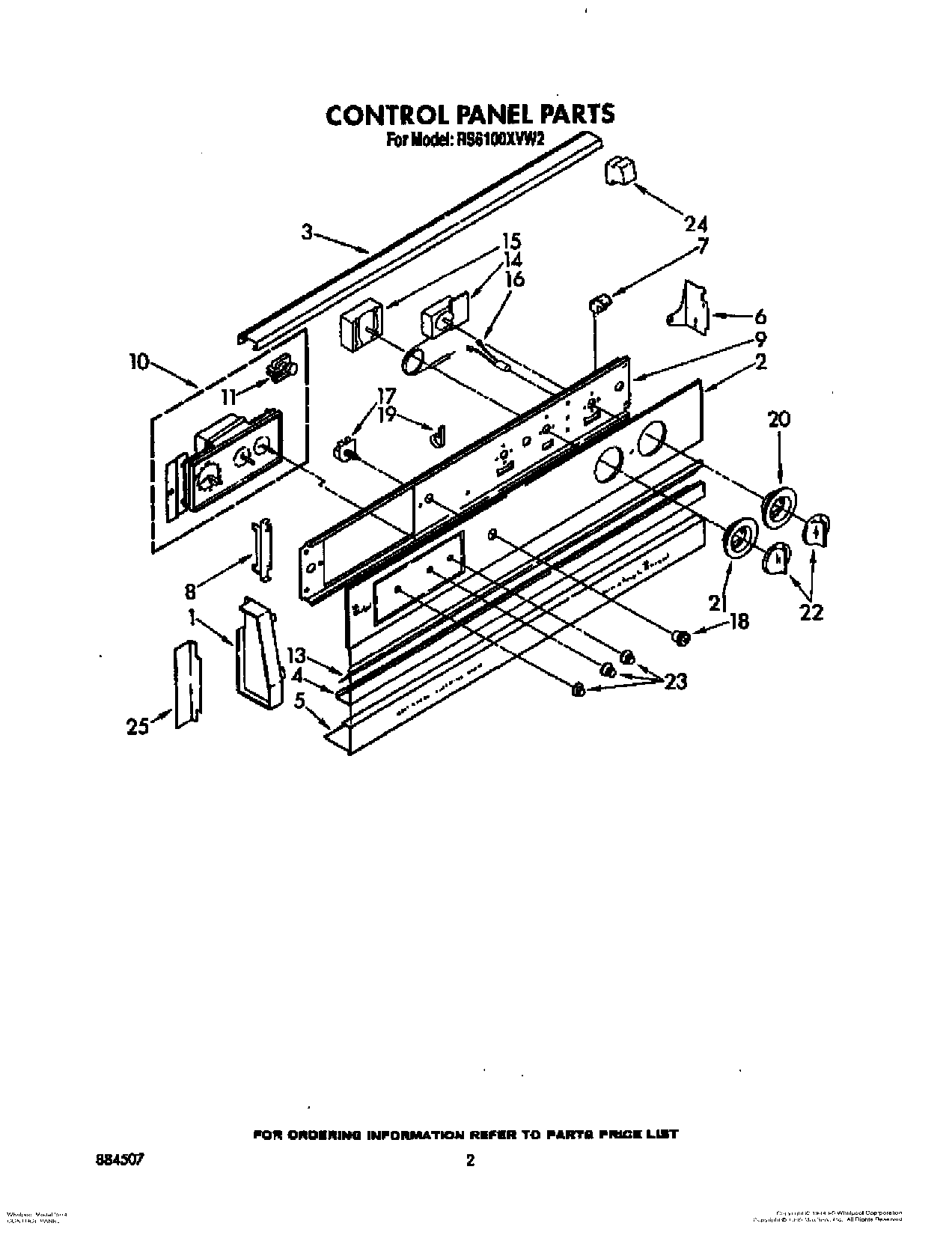

RS6100XVW2 02 – CONTROL PANEL

Products

Position	Product
NI	screw, 6-32 x 1/4 (2)
1	End Cap (L.H.)
1	End Cap (R.H.)
2	Control Panel, Glass
3	Rail, Top
4	Trim, Center
5	Screw, 10-32 x 1/2
5	Rail, Bottom
6	Cover, Side (Right Hand)
6	Cover, Side (Left Hand)
7	Retainer, Glass (4)
8	Bracket, Control (2)
9	Clip
9	Bracket, Control
10	Timer, Clock (Includes No.6)
10	Screw (2)
11	Motor, Timer
13	Rail, Top (Seal, Backguard)
14	Thermostat, Oven (Alt.)
14	Thermostat, Oven (Alt.)
14	Thermostat, Oven
15	Selector Switch (4 Position)
15	WP486579 Whirlpool Air Conditioner Screw
16	Indicator Light (4)
17	Lockwasher
17	Switch, Oven Light
18	Bezel Switch (1)
19	WP965173 Whirlpool Dishwasher Screw
19	Screw
19	WP308605 Whirlpool Refrigerator Clamp
20	Escutcheon, Thermostat
21	WP311069 Whirlpool Oven Dial
21	Screw,
22	WP3150371 Whirlpool Control Knob
23	WP3169181 Whirlpool Knob
23	Spring (3)
24	Support, Rail
25	Trim, End Cap (Black)
