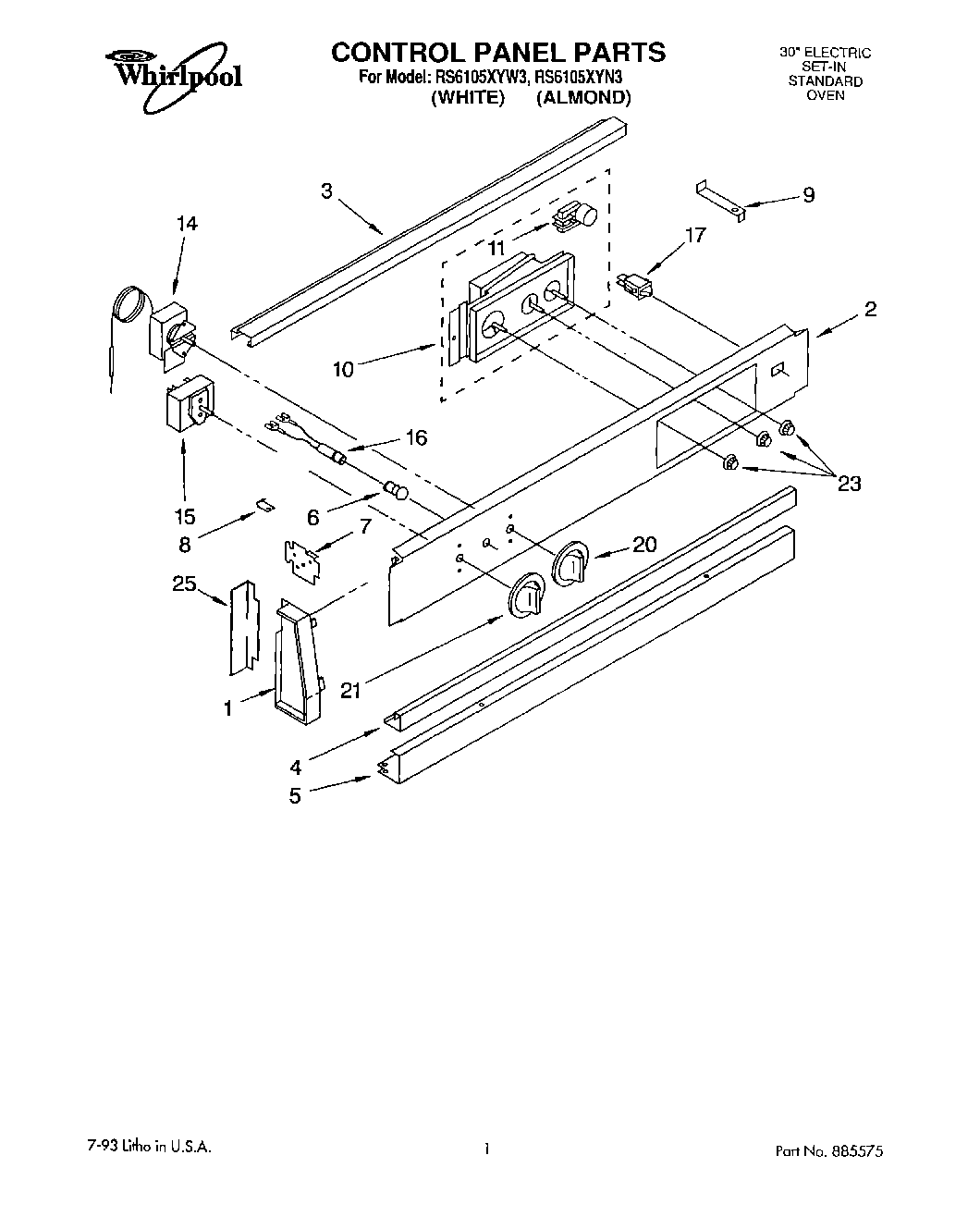

RS6105XYN3 01 – CONTROL PANEL

Products

Position	Product
1	End Cap (L.H.)
1	End Cap (R.H.)
2	Panel, Control
3	Rail, Top
4	Trim, Center
5	Trim, Bottom
5	Screw, 10-32 x 1/2
6	Lens, Amber
7	Cover, Side (Right Hand)
7	Cover, Side (Left Hand)
8	Bracket, Support
9	Support, Rail
10	Screw (2)
10	Timer, Auto
11	Motor, Timer
14	WP313808 Whirlpool Screw
14	Thermostat, Oven
15	Switch, Selector (4 Position)
15	Screw
16	Light, Indicator (250V)
17	Switch, Rocker
20	Knob, Thermostat
21	Knob, Selector
23	WP3169181 Whirlpool Knob
25	Trim, End Cap (Black)
