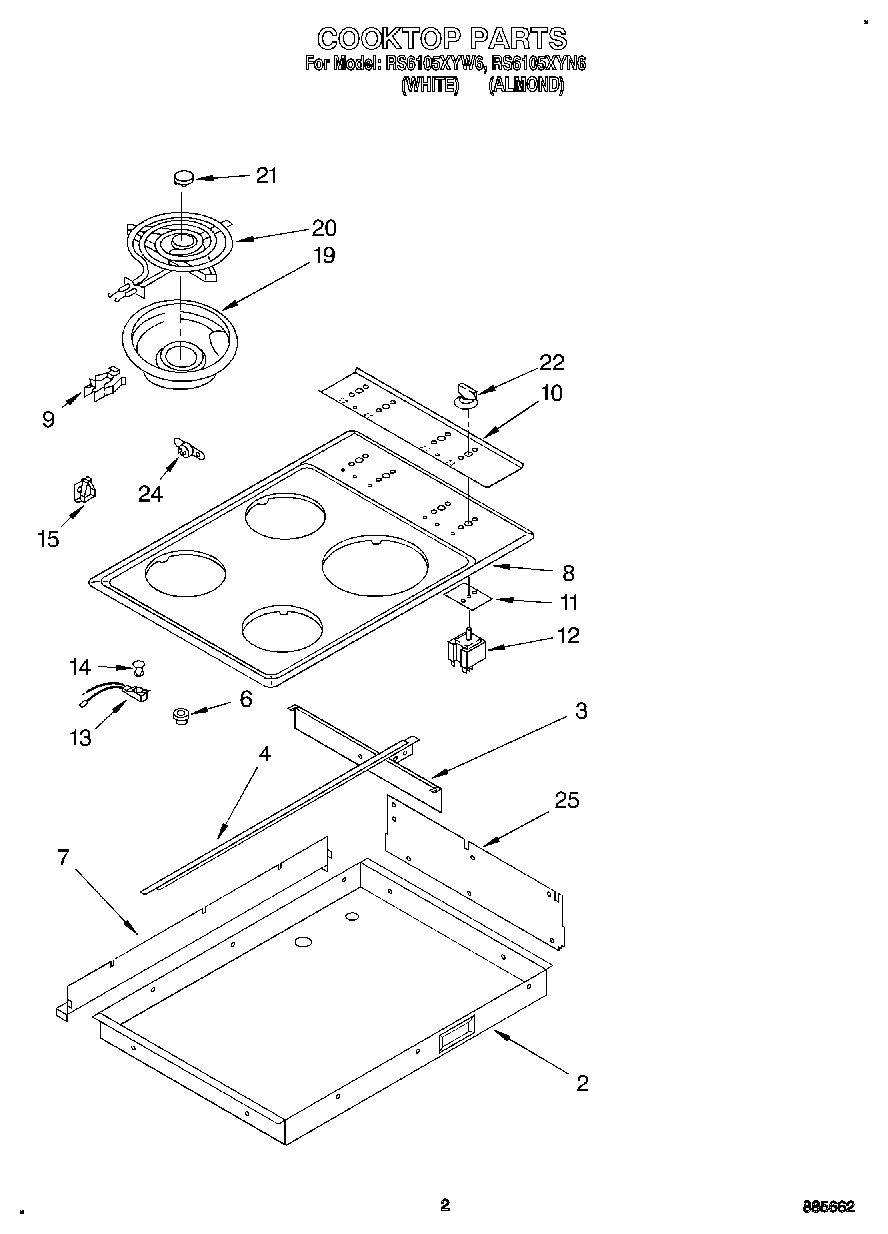

RS6105XYN6 02 – COOKTOP

Products

Position	Product
2	Box, Burner
3	Plate, Mounting
4	Bracket, Mounting
6	WPL 258109
7	Cover, Rear
8	Cooktop (White)
8	Cooktop (Almond)
8	WP488729 Whirlpool Refrigerator Door Screw
9	WP313808 Whirlpool Screw
9	WP4332752 Whirlpool Clip
10	Panel, Control
11	3183956 Whirlpool Oven Seal Switch
12	WP486579 Whirlpool Air Conditioner Screw
12	Switch, Infinite (Use W/6“ Surface Unit (2))
12	WP3148966 Whirlpool Infinite Switch
13	Light, Indicator
14	Lens, Light
15	814103 Whirlpool Clip
19	DRIP BOWL 8" W/HOLE CHROME
19	WPW10196406 Whirlpool 6" Chrome Drip Bowl
20	WP660533 Whirlpool Oven 8" Surface Element
20	WP660532 Whirlpool Oven Surface Element
21	Medallion (4)
22	Knob, Control (4)
24	WP3188286 Whirlpool Thermostat
25	Shield, Heat
25	Screw (6)
