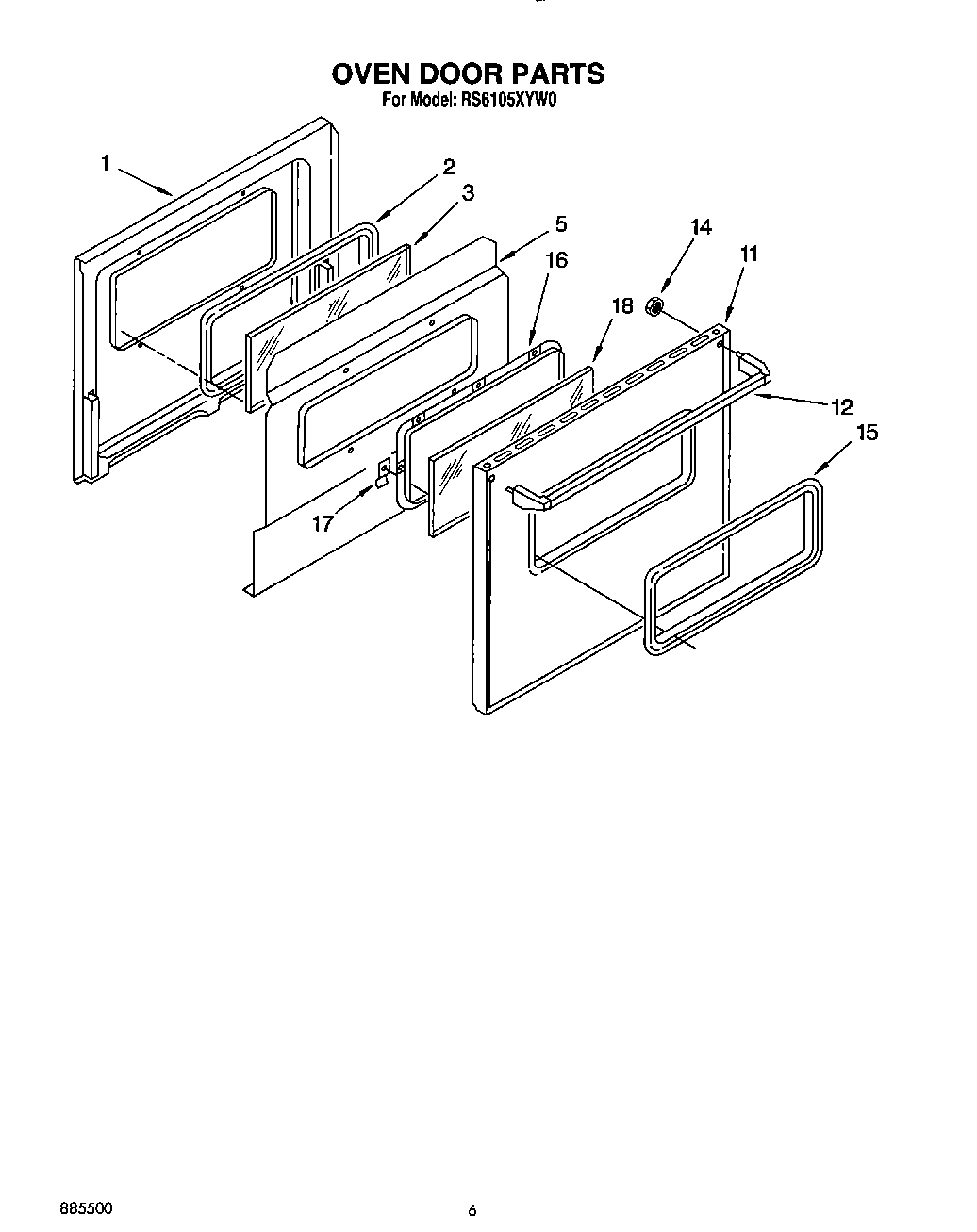

RS6105XYW0 05 – OVEN DOOR, OPTIONAL

RS6105XYW0 05 – OVEN DOOR, OPTIONAL

Written by

in

RS6105XYW0 05 – OVEN DOOR, OPTIONAL

Products

PositionProduct
1Screw
1Liner, Door
1WP488627 Whirlpool Refrigerator Screw
2Seal, Door
3Glass, Inner
3Screw, 10A x 1/2 (2) (Black)
5Screw
5Retainer, Insulation
11Panel, Door (White)
11Panel, Door (Almond)
12Handle, Door
14WP308499 Whirlpool Nut
15Back Splash (Screw (4) 10AB x 1/2“)
15Window, Frame
16Retainer, Glass
17Clip, Frame
18Wire (14 Ga. 150 c Green)
18Wire (14 Ga. 150 c Brown)
18Wire (14 Ga. 150 c Orange)
18Wire (14 Ga. 150 c Yellow)
18Wire (12 Ga. 150 c Black)
1818 Ga. 80~c Rating (Red)
18Wire (14 Ga. 200 c Brown)
181
18Glass, Outer
18Hinge-Lt. or Rt.
18console
18WPL 3171507
18Grease
18Leveler (Thinner) (2oz.)
18Enamel, New Avocado (1 Qt. Uncut)
18Enamel, Coffee (1 Qt. Uncut)
18Wire (14 Ga. 150 c Blue)
18242831 Whirlpool Oven Wire
18Enamal, Toast (1 Qt. Uncut)
18Paint, Spray (13 Oz.) (Platinum)
18Toast
18Golden Harvest (Uncut)
18Golden Harvest
1872113 Whirlpool Touch-Up Paint
1872110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
18Almond (Uncut)
18WP72107 Whirlpool Touchup
18799344 Whirlpool Refrigerator Paint
1872017 Whirlpool Appliance Touch-Up Paint White
18350956 Whirlpool Spray Assembly
18Platinum (Uncut)
18WPL 72112
18350942 Whirlpool Spray Paint
18Touch-Up Oven (1 Oz.)
18Paint, Spray 13 Oz. (Avocado)
18paint, spray 13 oz. (coffee)
18Paint, Touch-Up 1/2 Oz. (Coffee)
1872109 Whirlpool Dacor Avocado Touch-Up Paint
18285006 Whirlpool Spray
18Wire, 25“ Roll (White 14 GA.)
18Wire, 25` Roll (Red 14 Ga.)
18Wire, 25` Roll (Black 14 Ga.)
18FOIL, ALUMINUM OVEN (18“ X 25 )
18WPL 799832
18511873 Whirlpool Refrigerator Paint
18350930 Whirlpool White Spray Paint
