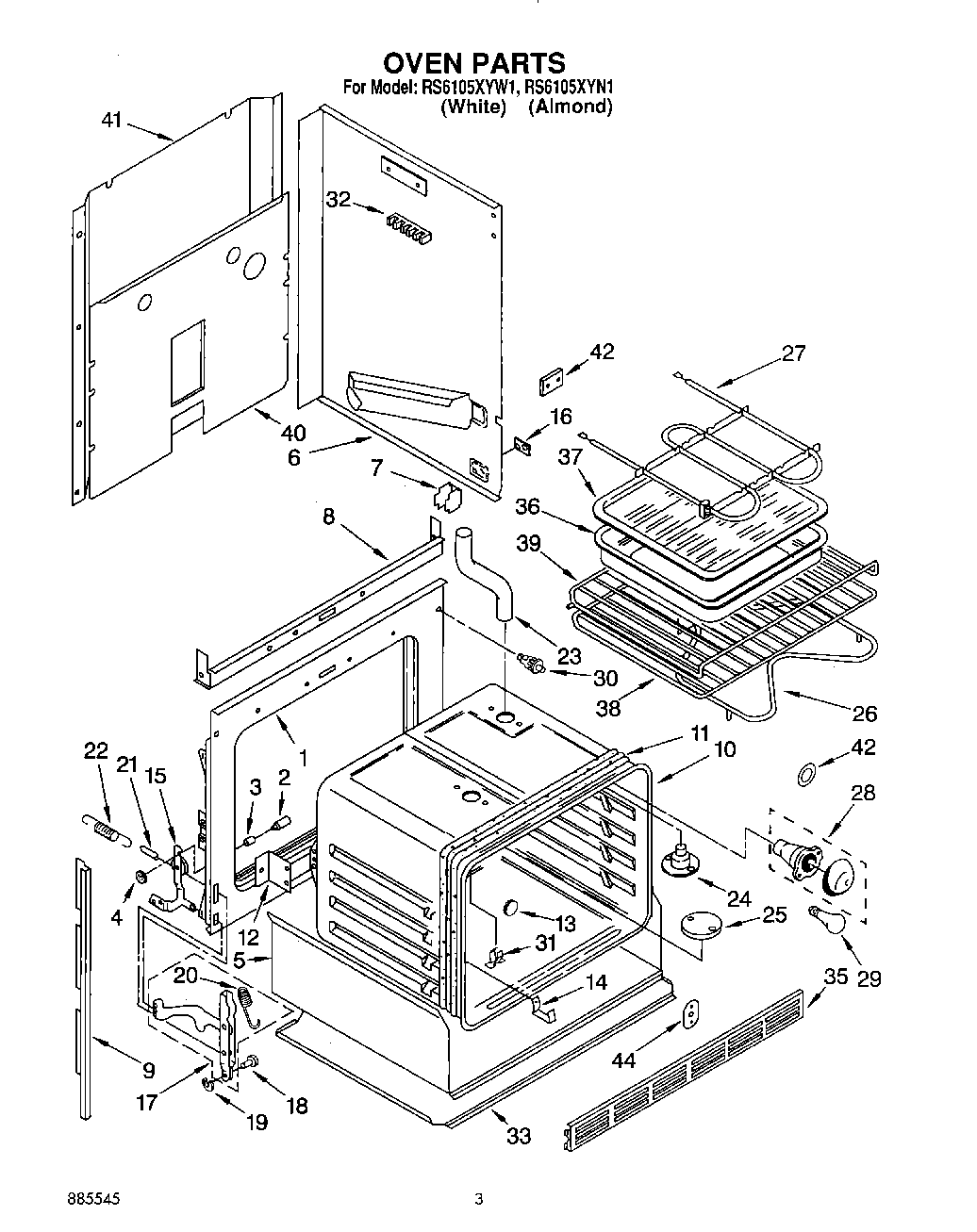

RS6105XYW1 03 – OVEN, LIT/OPTIONAL

Products

Position	Product
	WPL LIT3183765
	Tech Sheet
	Brochure
	Installation Instructions
	WPL LIT885545
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper (Right Side)
6	Side Wrapper (Left Side)
7	Support, Side Wrapper (4)
8	Baffle, Top Insulation
9	Side Trim (Left Side)
9	Side Trim (Right Side)
10	Screw (3)
10	Oven 30“
11	Heat Seal
12	WP489069 Whirlpool Compactor Screw
12	Bracket, Oven Mounting (2)
13	Button, Plug
14	98005642 Whirlpool Clip
15	Hinge, Ear (Left Side)
15	Hinge, Ear (Right Side)
16	WP308544 Whirlpool Screw
16	Plate, Side Panel (2)
17	Channel, Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
20	Spring, Door Stop (2)
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	Spring, Oven Door (2)
23	Tube, Vent Extension
24	SCREW
24	Eliminator, Smoke
24	WP488729 Whirlpool Refrigerator Door Screw
25	WPL 310662
26	ELMNT-BAKE
27	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
27	Screw (2)
28	W11594027 Whirlpool Range Oven Light Socket
29	RANGE ONLY 40W 120V APPL BULB
30	Switch, Door
31	WPL 3169107
32	WP8203546 Whirlpool Terminal Block
32	WP112432 Whirlpool Nut Assembly
32	Screw (10-12 x .875)
33	WPL 310458
35	Grill, Bottom (Screw (3))
35	Grill, Bottom
37	4396923 Whirlpool Broil Pan Set Gray Porcelain
38	WPL 308173
39	WPL 308172
40	Panel, Back
41	Cover, Rear
42	WPL 3183005
43	WP3184533 Whirlpool Range Light Lens Gasket
44	Insulation, Wrap
44	Insulation, Back
44	Plate, Cover
