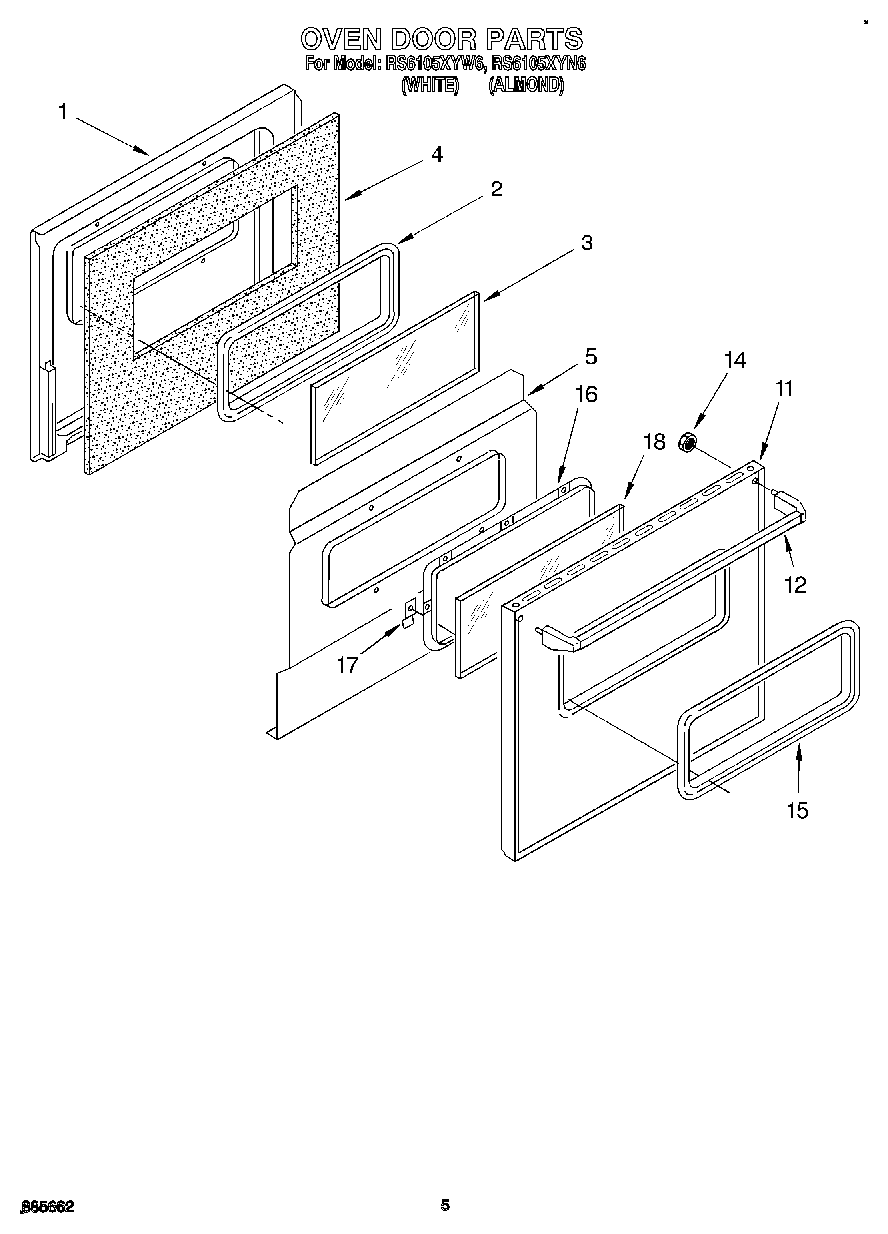

RS6105XYW6 04 – OVEN DOOR

Products

Position	Product
1	WP488627 Whirlpool Refrigerator Screw
1	Liner, Door
1	Screw
2	Seal, Door
3	Glass, Clear
3	Screw, 10A x 1/2 (2) (Black)
4	Insulation
5	Screw
5	Retainer, Insulation
11	Panel, Door (White)
11	Panel, Door (Almond)
12	Handle, Door
14	WP308499 Whirlpool Nut
15	Window, Frame
15	Back Splash (Screw (4) 10AB x 1/2“)
16	Retainer, Glass
17	Clip, Frame
18	Hinge-Lt. or Rt.
18	Glass, Outer
