RS610PXEN0 03 – OVEN

RS610PXEN0 03 – OVEN

Written by

in

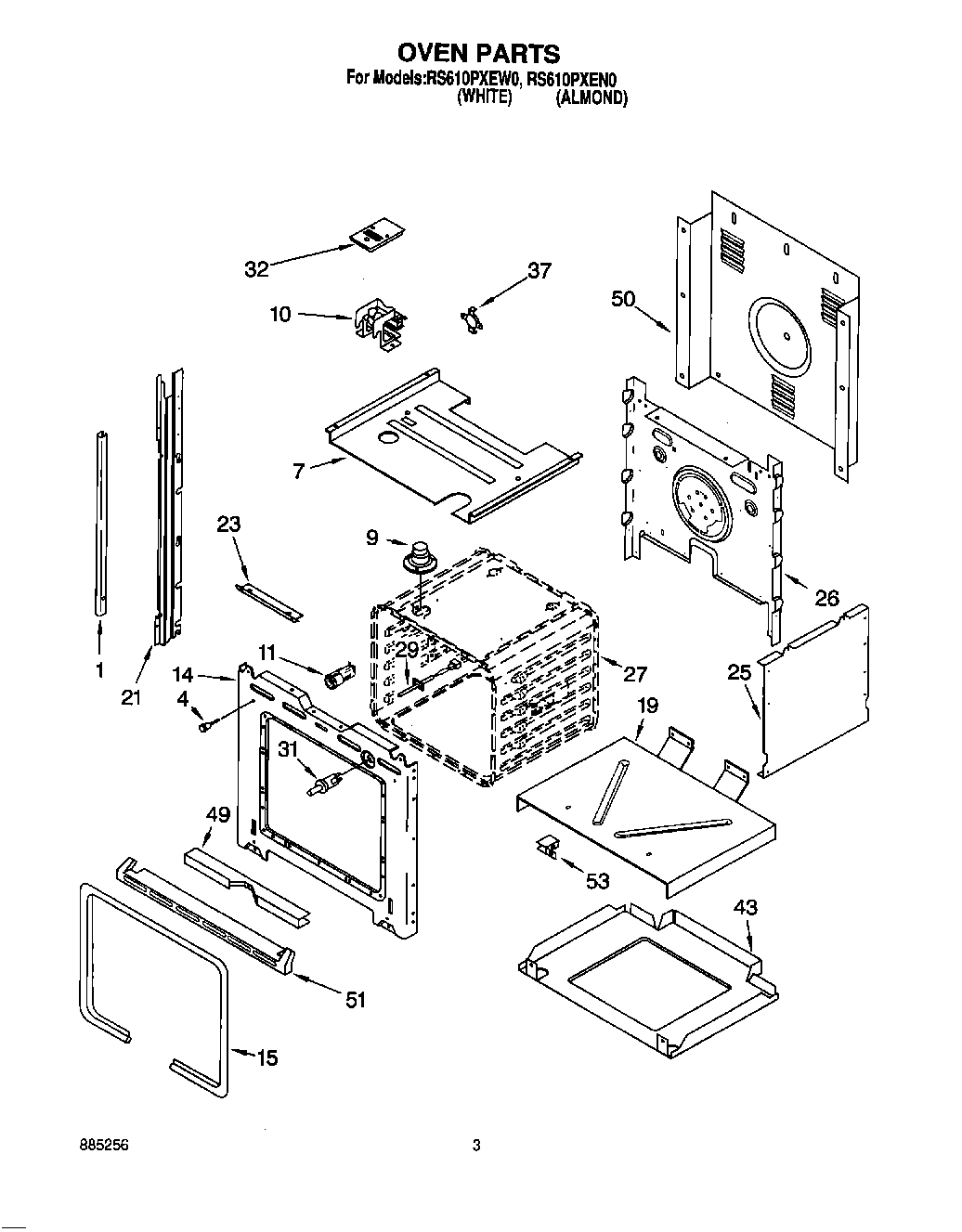

RS610PXEN0 03 – OVEN

Products

PositionProduct
1Trim, Side (LH Black)
1WP8281236 Whirlpool Screw
1Trim, Side (RH Black)
44448520 Whirlpool Oven Bumper
7Partition
9Tube, Vent
10Fan & Bracket Assy
11WPW10734065 Whirlpool Light
14Screw
14Frame, Front
14WP4450118 Whirlpool Nut
15Gasket, Door
19Support, Insulation
21WP4448444 Whirlpool Grommet
21814372 Whirlpool Oven Rail Mount
21814371 Whirlpool Oven Rail Mount
23Deflector, Latch
25Side, Chassis (R.H. & L.H.)
26Back, Chassis
27Liner, Oven (Not a Serviceable Part)
29Sensor
31Switch, Door
32Vent Box Assy
37WP9759243 Whirlpool Thermostat
43Base, Chassis
49WP4448933 Whirlpool Retainer
50Cover, Back
50WP4449809 Whirlpool Screw
51WPL 4448477
51Screw, (2)
53WPL 4449845
53WPL 4450365
53WP4449154 Whirlpool Screw
53W11684730 Whirlpool Insulation
