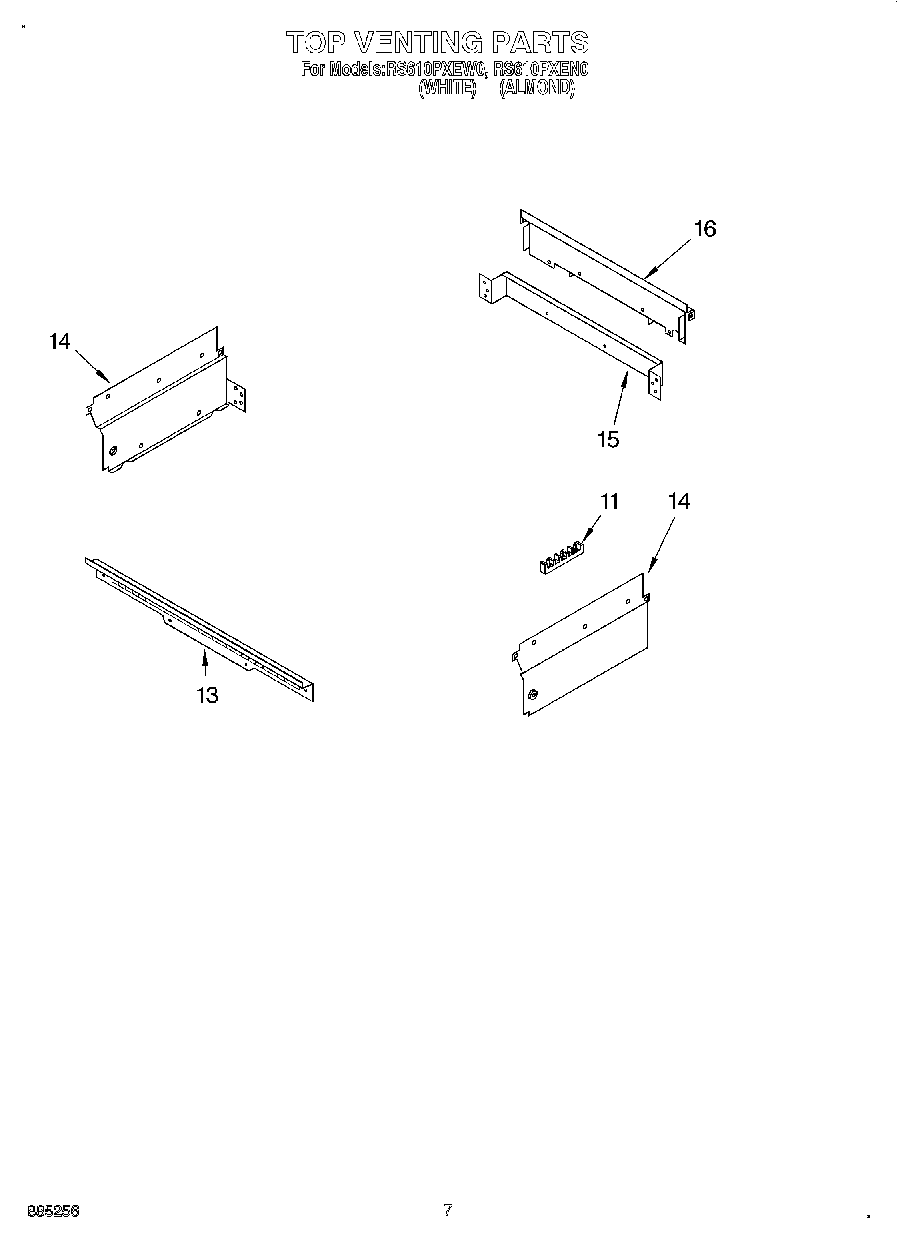

RS610PXEN0 06 – TOP VENTING, OPTIONAL

Products

Position	Product
11	WP3387230 Whirlpool Screw
11	WP8203546 Whirlpool Terminal Block
13	WP4450038 Whirlpool Screw
13	Vent, Control Panel
14	3191833 Whirlpool Oven Side Complete
14	Side, Control Compt. (Right)
15	Back, Control
16	18 Ga. 80~c Rating (Red)
16	Wire (12 Ga. 150 c Black)
16	Wire (14 Ga. 200 c Brown)
16	1
16	WPL 591014
16	Wire (14 Ga. 150 c Yellow)
16	3184020 Whirlpool Oven Wire
16	261900 Whirlpool Microwave Spray
16	Harness, Wire (Infinite Switch)
16	Harness, Wire (Surface Unit)
16	WP112432 Whirlpool Nut Assembly
16	Conduit
16	Cover, Rear
16	Harness, Wire (Main)
16	Wire (14 Ga. 150 c Orange)
16	Wire (14 Ga. 150 c Green)
16	Wire (14 Ga. 150 c Brown)
16	4448664 Whirlpool Oven Mounting Bracket
16	Wire, 25“ Roll (White 14 GA.)
16	Wire, 25` Roll (Red 14 Ga.)
16	Wire, 25` Roll (Black 14 Ga.)
16	WP488366 Whirlpool Refrigerator Clamp
16	WP308544 Whirlpool Screw
16	WP4449809 Whirlpool Screw
16	72017 Whirlpool Appliance Touch-Up Paint White
16	4450800 Whirlpool Oven Screw
16	285006 Whirlpool Spray
16	Wire (14 Ga. 150 c Blue)
16	WP261869 Whirlpool Microwave Paint
16	242831 Whirlpool Oven Wire
16	WP4448950 Whirlpool Screw
16	814381 Whirlpool Pin
16	8528351 Whirlpool Clip
16	WP482338 Whirlpool Refrigerator Adhesive
16	72032 Whirlpool Touch Up Paint Black
16	350930 Whirlpool White Spray Paint
