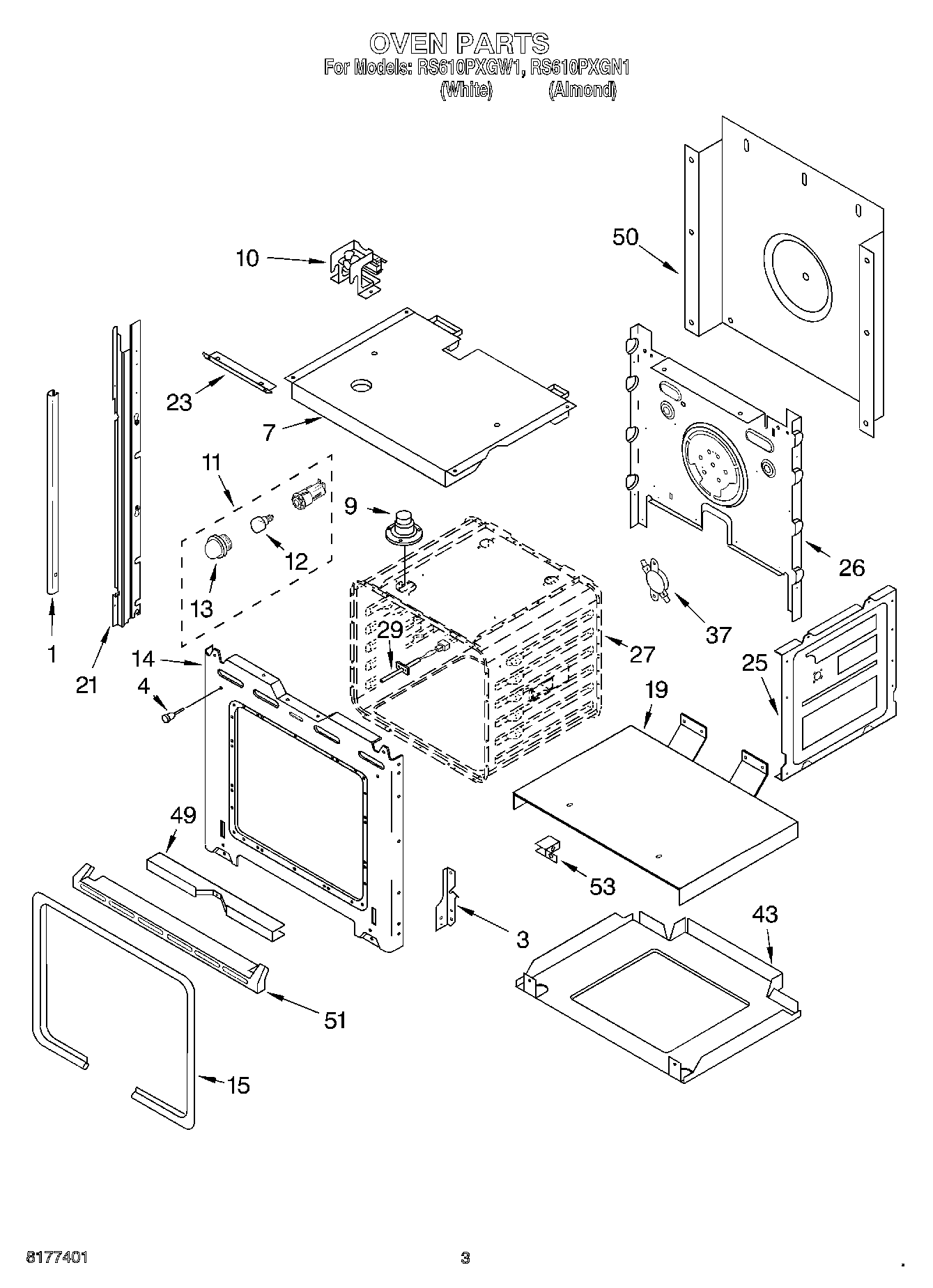

RS610PXGN1 03 – OVEN

Products

Position	Product
1	WP8281236 Whirlpool Screw
1	Trim, Side (RH Black)
1	Trim, Side (LH Black)
3	Reciever, Hinge (Right Hand)
3	Reciever, Hinge (Left Hand)
4	4448520 Whirlpool Oven Bumper
7	Top, Chassis
9	SCREW
9	W10861715 Whirlpool Vent Tube
10	Fan & Bracket Assy
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
13	Lens, Light
14	Frame, Front
14	Screw
14	WP4450118 Whirlpool Nut
15	Gasket, Door
19	Support, Insulation
21	WP4448444 Whirlpool Grommet
21	814372 Whirlpool Oven Rail Mount
21	814371 Whirlpool Oven Rail Mount
23	Deflector, Latch
25	Side, Chassis (R.H. & L.H.)
26	Back, Chassis
27	Liner, Oven (Not a Serviceable Part)
29	Sensor
37	WP4451354 Whirlpool Thermal Fuse Assembly
43	Base, Chassis
49	WP4448933 Whirlpool Retainer
50	WP4449809 Whirlpool Screw
50	WP4451747 Whirlpool Rear Cover
51	WPL 4448477
53	WPL 4449845
53	W11684730 Whirlpool Insulation
53	WP4449154 Whirlpool Screw
53	WPL 4450365
