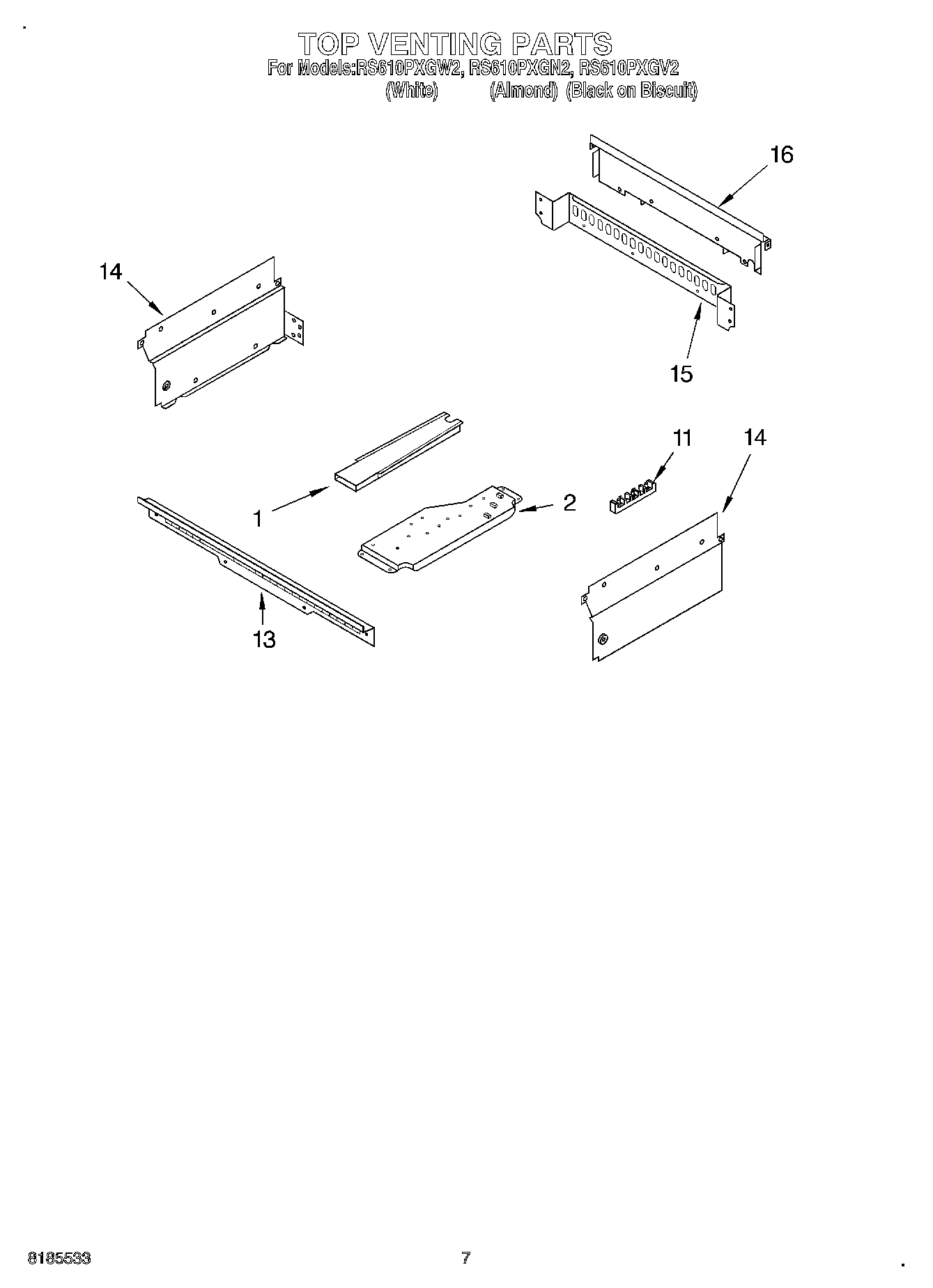

RS610PXGN2 06 – TOP VENTING, OPTIONAL

Products

Position	Product
1	Screw
1	4451759 Whirlpool Oven Exhaust Vent
2	Plate, Fan
11	WP3400016 Whirlpool Screw Assembly
11	WP112432 Whirlpool Nut Assembly
11	WP8203546 Whirlpool Terminal Block
13	WP4450038 Whirlpool Screw
13	Vent, Control Panel
14	Side, Control Compt. (Right)
14	3191833 Whirlpool Oven Side Complete
15	Back, Control
16	WPL 591014
16	1
16	Wire (14 Ga. 200 c Brown)
16	18 Ga. 80~c Rating (Red)
16	Harness, Wire (EDC)
16	3184020 Whirlpool Oven Wire
16	261900 Whirlpool Microwave Spray
16	Harness, Wire (Main)
16	Cover, Rear
16	Harness, Wire (Infinite Switch)
16	Conduit
16	Harness, Wire (Light)
16	Wire (12 Ga. 150 c Black)
16	Wire (14 Ga. 150 c Yellow)
16	285006 Whirlpool Spray
16	WPW10339879 Whirlpool Wire Tie
16	4448664 Whirlpool Oven Mounting Bracket
16	Wire, 25`` Roll (White 14 GA.)
16	Wire, 25` Roll (Red 14 Ga.)
16	Wire, 25` Roll (Black 14 Ga.)
16	WP3400015 Whirlpool Screw
16	WP4449809 Whirlpool Screw
16	72017 Whirlpool Appliance Touch-Up Paint White
16	72032 Whirlpool Touch Up Paint Black
16	WP482338 Whirlpool Refrigerator Adhesive
16	Wire (14 Ga. 150 c Orange)
16	Wire (14 Ga. 150 c Green)
16	Wire (14 Ga. 150 c Brown)
16	Wire (14 Ga. 150 c Blue)
16	WP261869 Whirlpool Microwave Paint
16	242831 Whirlpool Oven Wire
16	Spacer, Harness
16	WP4448950 Whirlpool Screw
16	814381 Whirlpool Pin
16	350930 Whirlpool White Spray Paint
