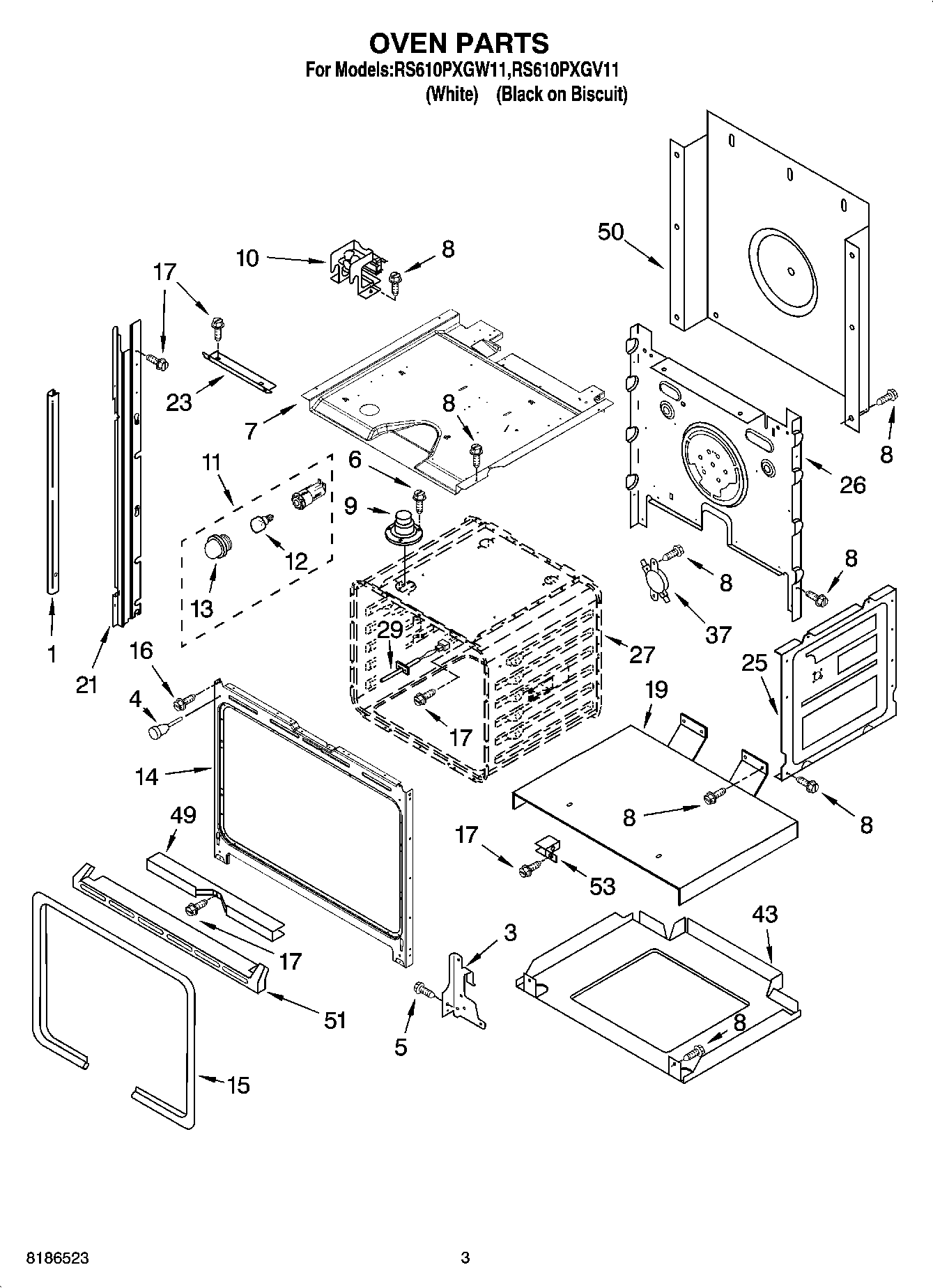

RS610PXGV11 03 – OVEN PARTS

RS610PXGV11 03 – OVEN PARTS

Written by

in

RS610PXGV11 03 – OVEN PARTS

Products

PositionProduct
1Trim, Side (RH Black)
1Trim, Side (LH Black)
3WP4455606 Whirlpool Right Hand Hinge
3WP4455605 Whirlpool Left Hand Hinge
44448520 Whirlpool Oven Bumper
5WP4449743 Whirlpool Screw
6SCREW
7Top Chassis
8WP4449809 Whirlpool Screw
9W10861715 Whirlpool Vent Tube
10Fan & Bracket Assy
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
13Lens, Light
14Frame, Front
15Gasket, Door
16Screw
17WP4449154 Whirlpool Screw
19Support, Insulation
21814371 Whirlpool Oven Rail Mount
21814372 Whirlpool Oven Rail Mount
23Deflector, Latch
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
29WPW10131825 Whirlpool Oven Temperature Sensor
37WP4451354 Whirlpool Thermal Fuse Assembly
43Base, Chassis
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
51WPL 4448477
53WPL 4450365
53W11684730 Whirlpool Insulation
53WPL 4449845
53FOLLOWING PARTS NOT ILLUSTRATED INSULATION
