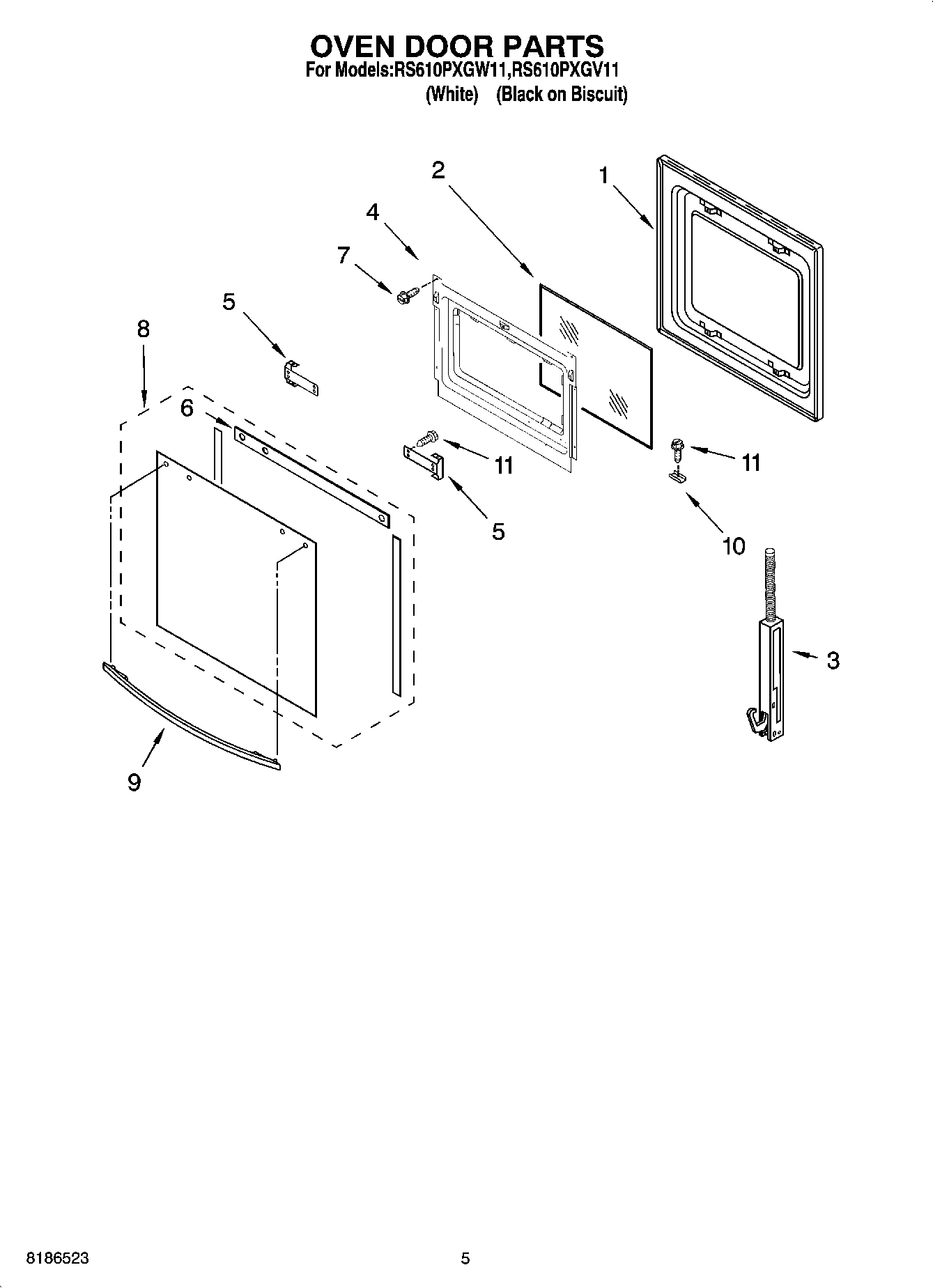

RS610PXGV11 04 – OVEN DOOR PARTS

RS610PXGV11 04 – OVEN DOOR PARTS

Written by

in

RS610PXGV11 04 – OVEN DOOR PARTS

Products

PositionProduct
1WP9759413 Whirlpool Door Liner
2WP4449259 Whirlpool Glass Window
3Hinge, Door (For Stainless Model Only) (Left)
3Hinge, Door (For Stainless Model Only) (Right)
4WP4457132 Whirlpool Retainer
5Bracket, Handle
6Seal, Door Top
7WP4449809 Whirlpool Screw
8WP9759641 Whirlpool Outer Door Glass
9Door Handle (Black Model)
10Clip, Retainer (Black Model)
11WP4449743 Whirlpool Screw
