RS610PXGV2 03 – OVEN

RS610PXGV2 03 – OVEN

Written by

in

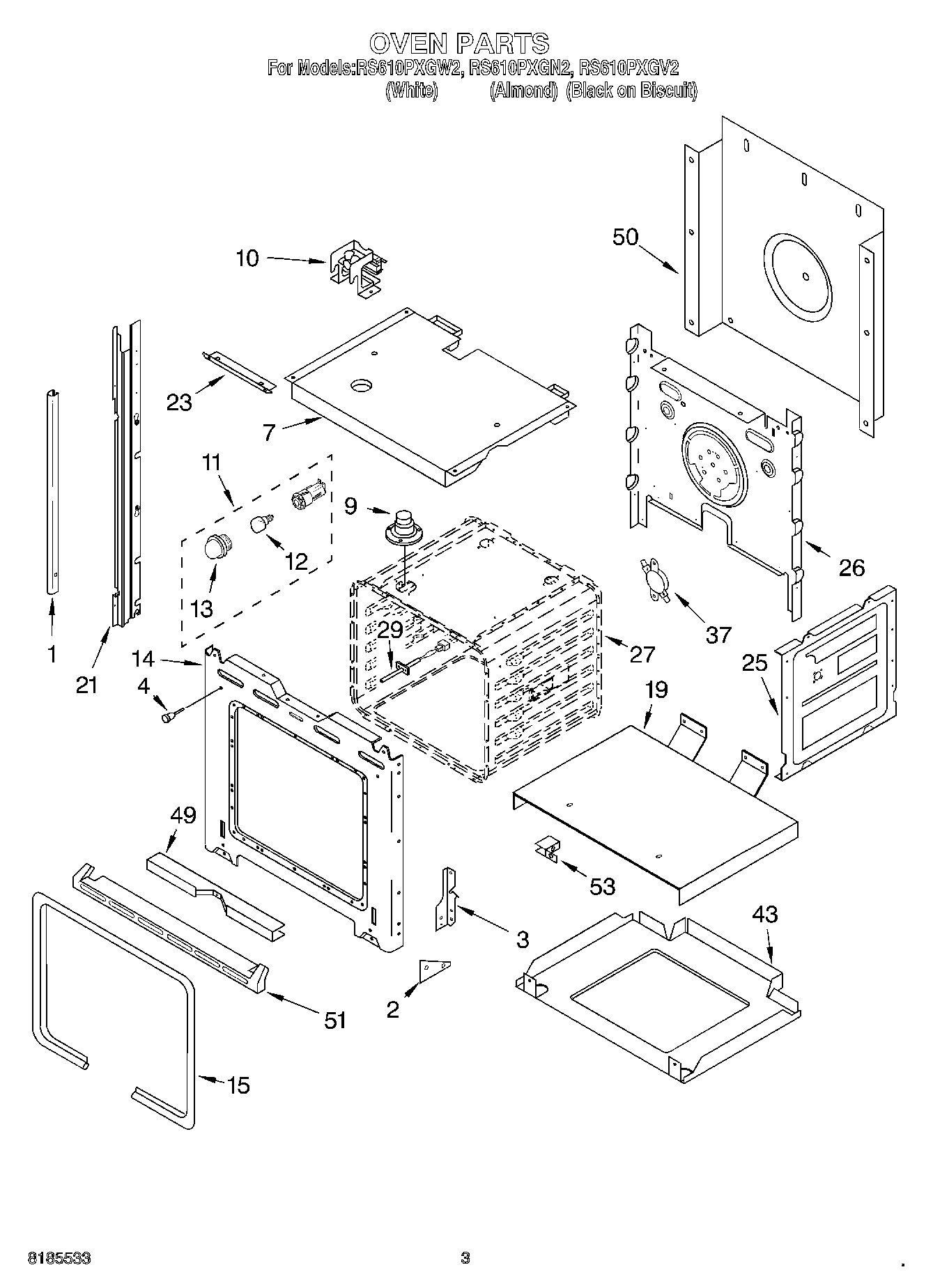

RS610PXGV2 03 – OVEN

Products

PositionProduct
1WP8281236 Whirlpool Screw
1Trim, Side (RH Black)
1Trim, Side (LH Black)
2WP4455509 Whirlpool Support Bracket
3Reciever, Hinge (Left Hand)
3Reciever, Hinge (Right Hand)
44448520 Whirlpool Oven Bumper
7Top, Chassis
9SCREW
9W10861715 Whirlpool Vent Tube
10Fan & Bracket Assy
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
13Lens, Light
14Screw
14Frame, Front
14WP4450118 Whirlpool Nut
15Gasket, Door
19Support, Insulation
21WP4448444 Whirlpool Grommet
21814372 Whirlpool Oven Rail Mount
21814371 Whirlpool Oven Rail Mount
23Deflector, Latch
25Side, Chassis (R.H. & L.H.)
26Back, Chassis
27Liner, Oven (Not a Serviceable Part)
29WPW10131825 Whirlpool Oven Temperature Sensor
37WP4451354 Whirlpool Thermal Fuse Assembly
43WPL 4455530
49WP4448933 Whirlpool Retainer
50WP4449809 Whirlpool Screw
50WP4451747 Whirlpool Rear Cover
51WPL 4448477
53WPL 4449845
53WPL 4450365
53W11684730 Whirlpool Insulation
53WP4449154 Whirlpool Screw
