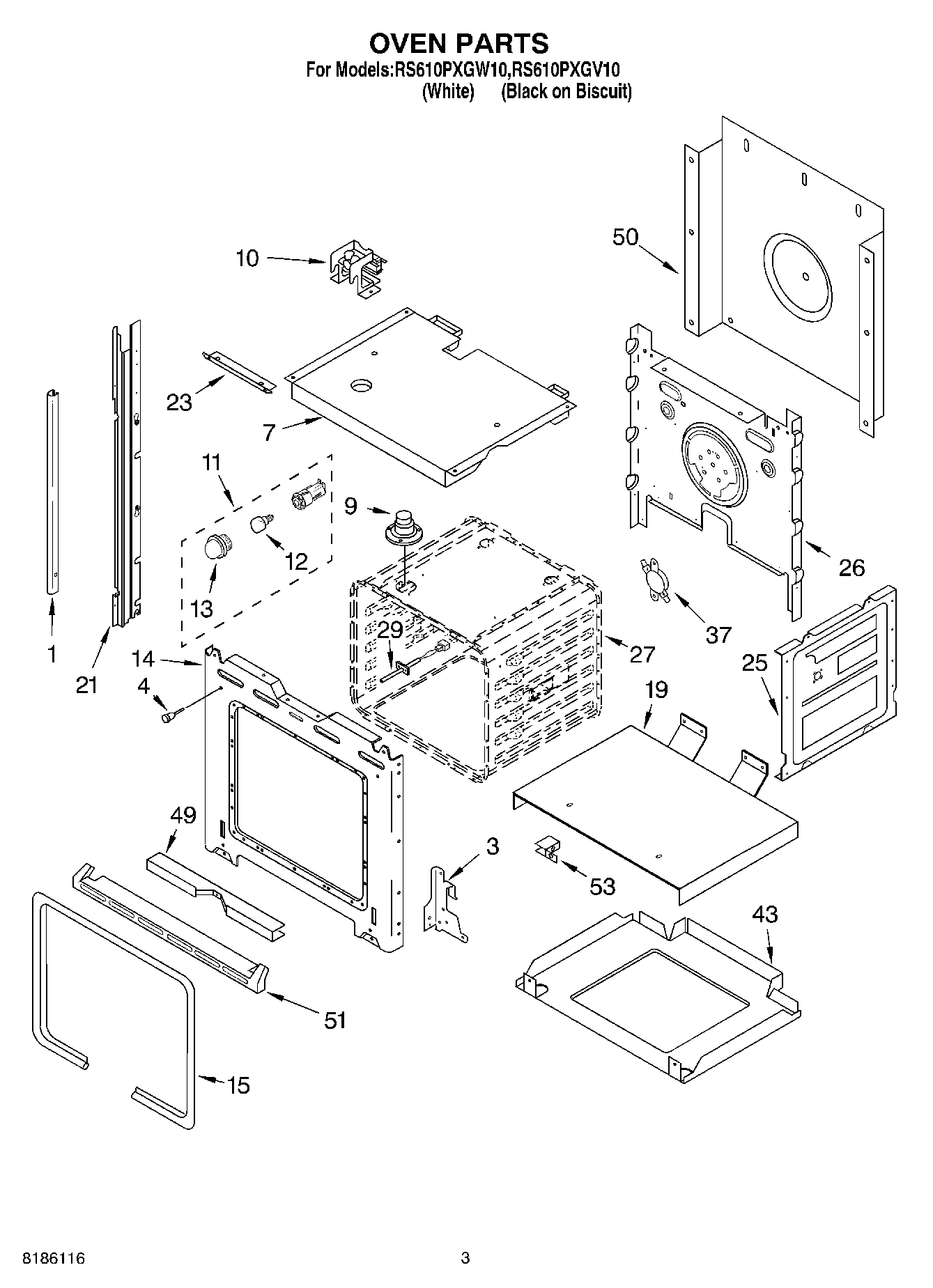

RS610PXGW10 03 – OVEN PARTS

Products

PositionProduct
NOTE: The screws and nuts required to attach a part are listed immediately following that part.
1WP8281236 Whirlpool Screw
1Trim, Side (RH Black)
1Trim, Side (LH Black)
3WP4455606 Whirlpool Right Hand Hinge
3WP4455605 Whirlpool Left Hand Hinge
44448520 Whirlpool Oven Bumper
7Top, Chassis
9SCREW
9W10861715 Whirlpool Vent Tube
10Fan & Bracket Assy
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
13Lens, Light
14Screw
14Frame, Front
14WP4450118 Whirlpool Nut
15Gasket, Door
19Support, Insulation
21WP4448444 Whirlpool Grommet
21814371 Whirlpool Oven Rail Mount
21814372 Whirlpool Oven Rail Mount
23Deflector, Latch
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
29WPW10131825 Whirlpool Oven Temperature Sensor
37WP4451354 Whirlpool Thermal Fuse Assembly
43WPL 4455530
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
50WP4449809 Whirlpool Screw
51WPL 4448477
53FOLLOWING PARTS NOT ILLUSTRATED INSULATION
53WPL 4449845
53WP4449154 Whirlpool Screw
53WPL 4450365
53W11684730 Whirlpool Insulation
