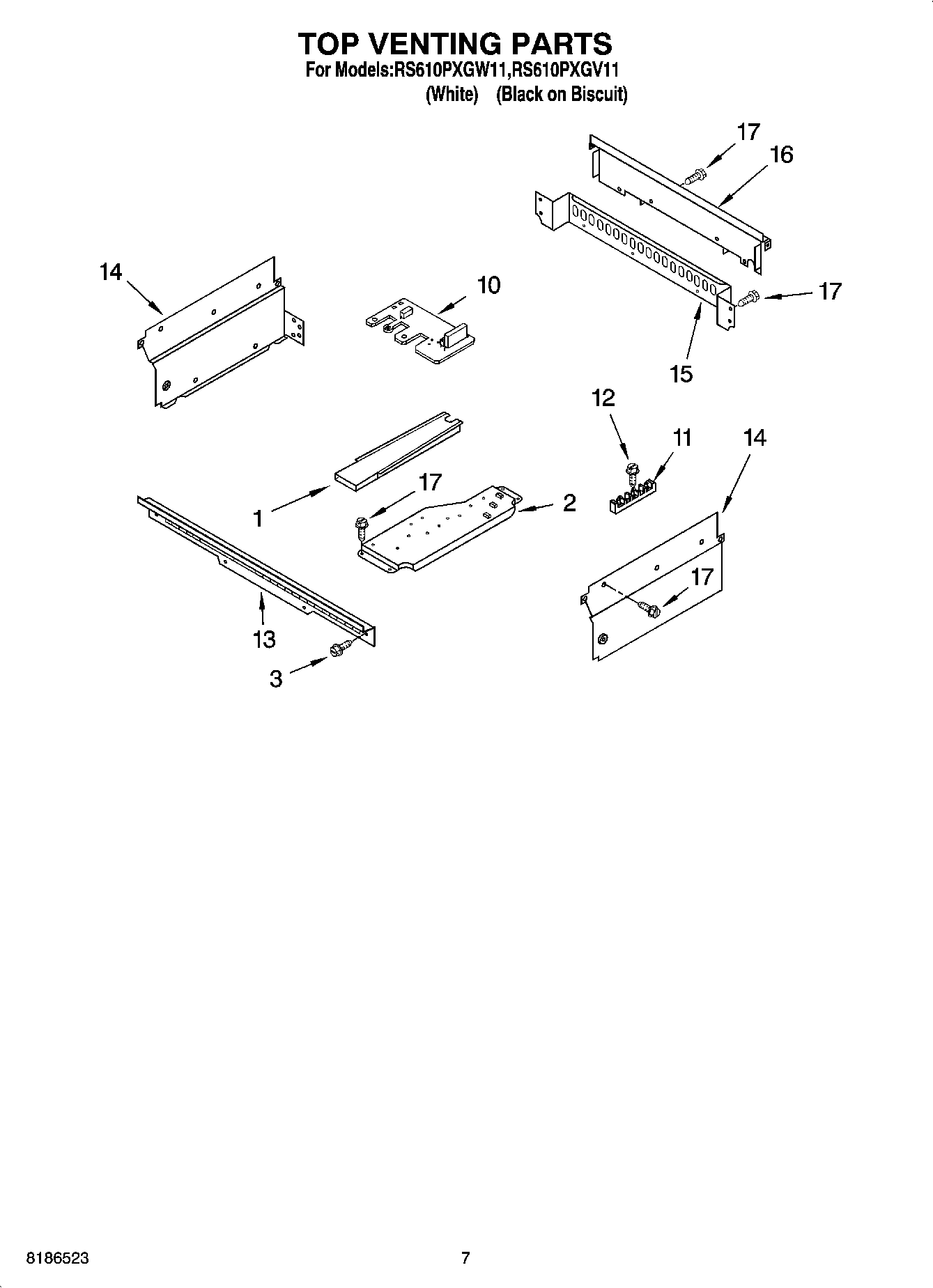

RS610PXGW11 06 – TOP VENTING PARTS, OPTIONAL PARTS

Products

Position	Product
	WIRING HARN
	3184020 Whirlpool Oven Wire
	WPL 591014
	1
	Wire (14 Ga. 200 c Brown)
	18 Ga. 80~c Rating (Red)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	261900 Whirlpool Microwave Spray
	Harness, Wire (Main)
	SPLICING WIRES–25FT. LENGTH
	ADHESIVE
	Harness, Wire (EDC)
	4455805 Whirlpool Oven Grommet
	Harness, Wire (Light)
	Conduit
	Harness, Wire (Infinite Switch)
	WPL ARI124540A
	Wire (14 Ga. 150 c Green)
	285006 Whirlpool Spray
	WPW10339879 Whirlpool Wire Tie
	4448664 Whirlpool Oven Mounting Bracket
	Wire, 25“ Roll (White 14 GA.)
	Wire, 25` Roll (Red 14 Ga.)
	72032 Whirlpool Touch Up Paint Black
	Wire, 25` Roll (Black 14 Ga.)
	WP3400015 Whirlpool Screw
	72017 Whirlpool Appliance Touch-Up Paint White
	350930 Whirlpool White Spray Paint
	WP482338 Whirlpool Refrigerator Adhesive
	814381 Whirlpool Pin
	WP4448950 Whirlpool Screw
	Spacer, Harness
	242831 Whirlpool Oven Wire
	WP261869 Whirlpool Microwave Paint
	Wire (14 Ga. 150 c Blue)
	Wire (14 Ga. 150 c Brown)
	BUSHING
1	4451759 Whirlpool Oven Exhaust Vent
2	Plate, Fan
3	WP4450038 Whirlpool Screw
10	WP4451985 Whirlpool Noise Filter Board
11	WP8203546 Whirlpool Terminal Block
12	Screw
13	Vent, Control Panel
14	Side, Control Compt. (Right)
14	3191833 Whirlpool Oven Side Complete
15	Back, Control
16	Cover, Rear
17	WP4449809 Whirlpool Screw
