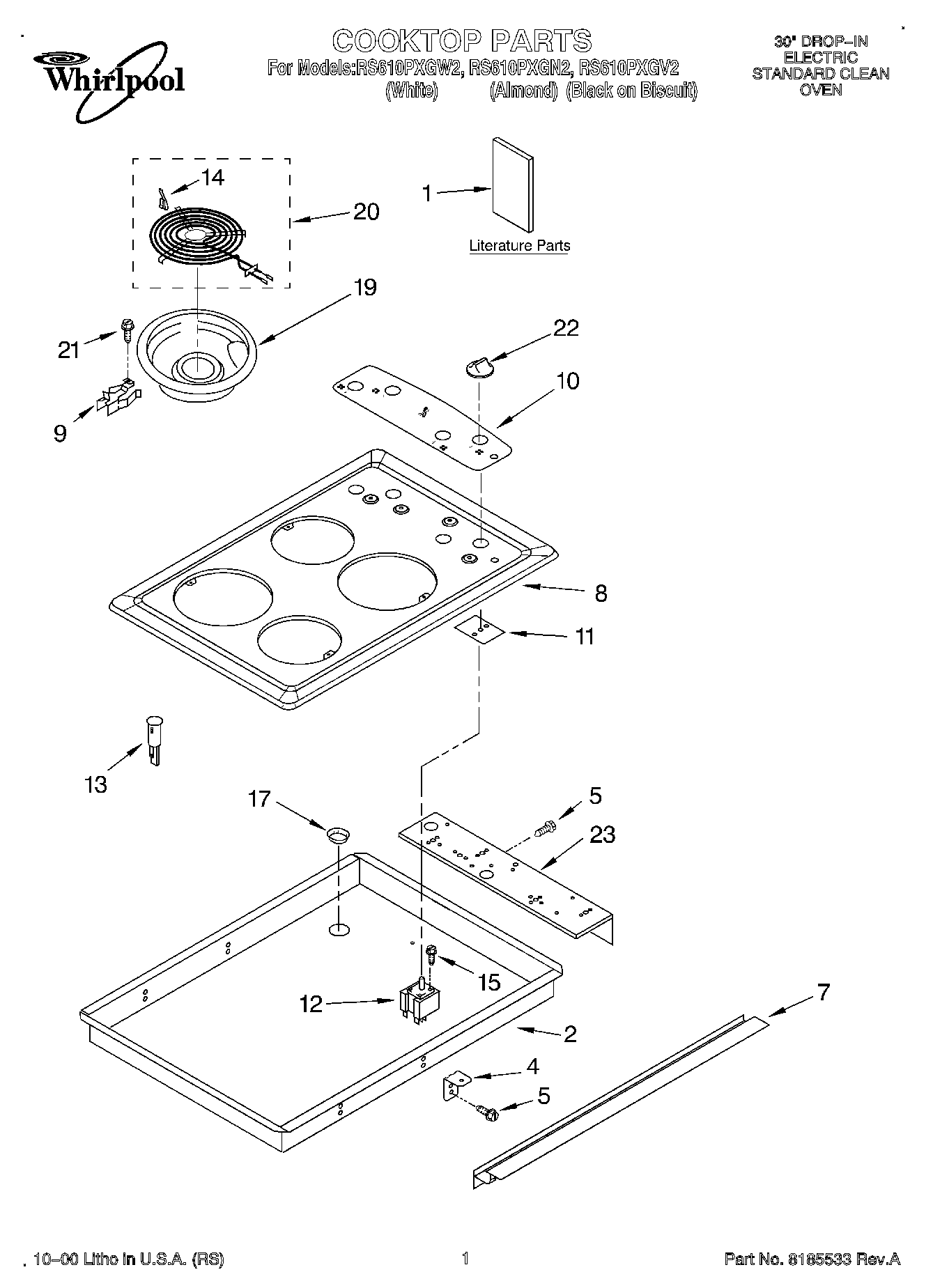

RS610PXGW2 01 – COOKTOP, LITERATURE

Products

Position	Product
1	Safer Cooking Tips
1	Tech Sheet
1	Installation Instructions
1	Use & Care Guide
2	Burner Box
4	Clip, Mtg. (4)
5	WP3196557 Whirlpool Screw
7	Trim, Extension (Black)
8	Cooktop (Almond)
8	Cooktop (White)
8	Cooktop (Biscuit)
9	WP9760411 Whirlpool Clip
10	Panel, Control (Black)
11	3183956 Whirlpool Oven Seal Switch
12	WP3191472 Whirlpool Infinite Switch
12	WP3191471 Whirlpool Infinite Switch
13	WP4456181 Whirlpool Indicator Light
14	WP3195917 Whirlpool Clip Assembly
15	3400855 Whirlpool Oven Screw
17	WP4448444 Whirlpool Grommet
19	DRIP BOWL 8" W/HOLE CHROME
19	WPW10196406 Whirlpool 6" Chrome Drip Bowl
20	WP9761346 Whirlpool Stove Surface Burner Element
20	WPW10345407 Whirlpool Surface Element
21	WP12990527 Whirlpool Microwave Screw
22	WP3196231 Whirlpool Knob
23	Bracket, Mounting
