RS610PXGW9 01 – COOKTOP, LITERATURE

RS610PXGW9 01 – COOKTOP, LITERATURE

Written by

in

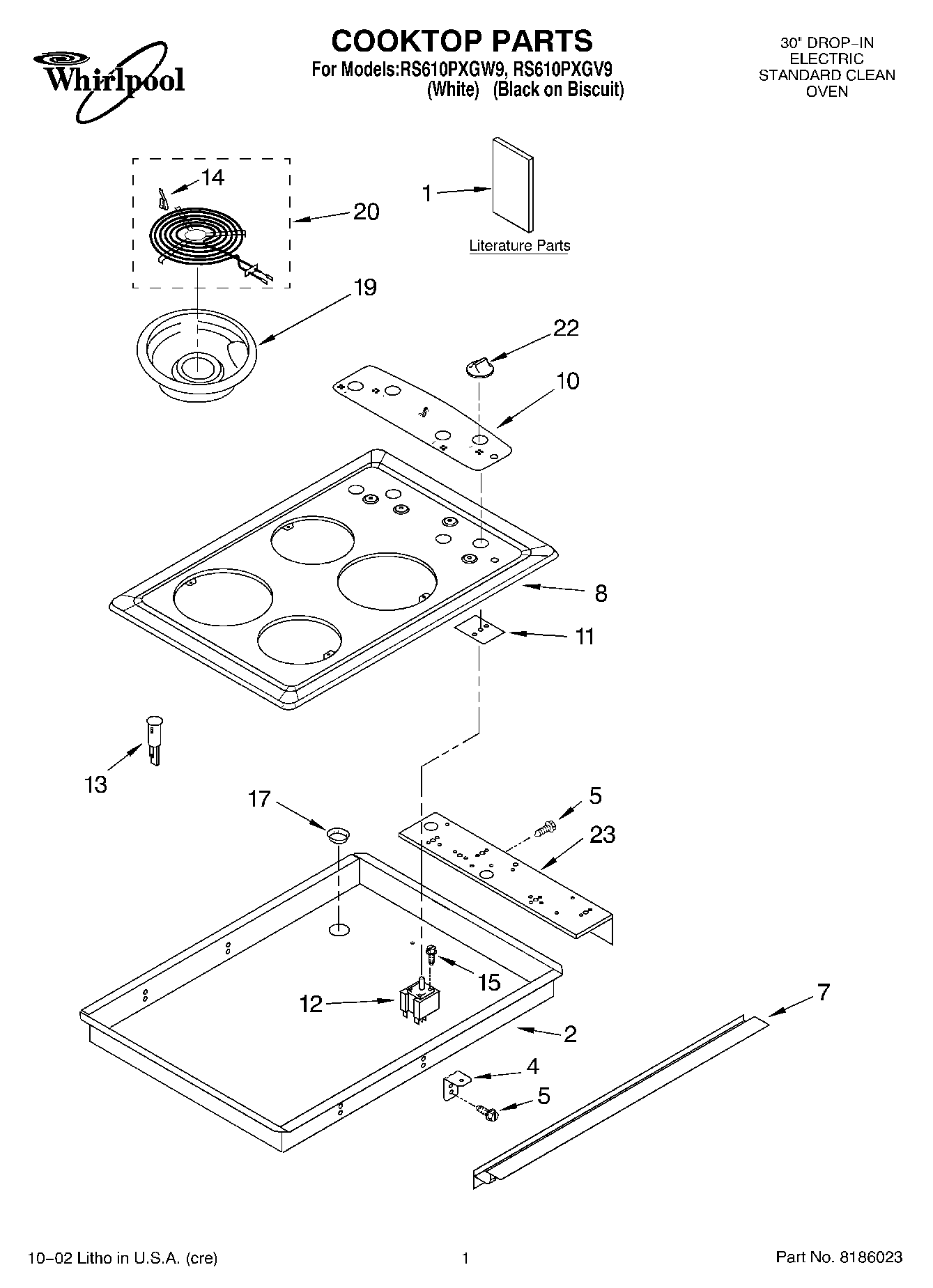

RS610PXGW9 01 – COOKTOP, LITERATURE

Products

PositionProduct
1Safer Cooking Tips
1Installation Instructions
1Literature Parts (Tech Sheet)
1Use & Care Guide
2Burner Box
4Clip, Mtg. (4)
5WP3196557 Whirlpool Screw
7Trim, Extension (Black)
8Cooktop (White)
8Cooktop (Biscuit)
10Panel, Control (Black)
113183956 Whirlpool Oven Seal Switch
12WP3191472 Whirlpool Infinite Switch
12WP3191471 Whirlpool Infinite Switch
13WP4456181 Whirlpool Indicator Light
14WP3195917 Whirlpool Clip Assembly
153400855 Whirlpool Oven Screw
17WP4448444 Whirlpool Grommet
19WPW10196406 Whirlpool 6" Chrome Drip Bowl
19DRIP BOWL 8" W/HOLE CHROME
20WPW10345407 Whirlpool Surface Element
20WP9761346 Whirlpool Stove Surface Burner Element
22WP3196231 Whirlpool Knob
23Bracket, Mounting
