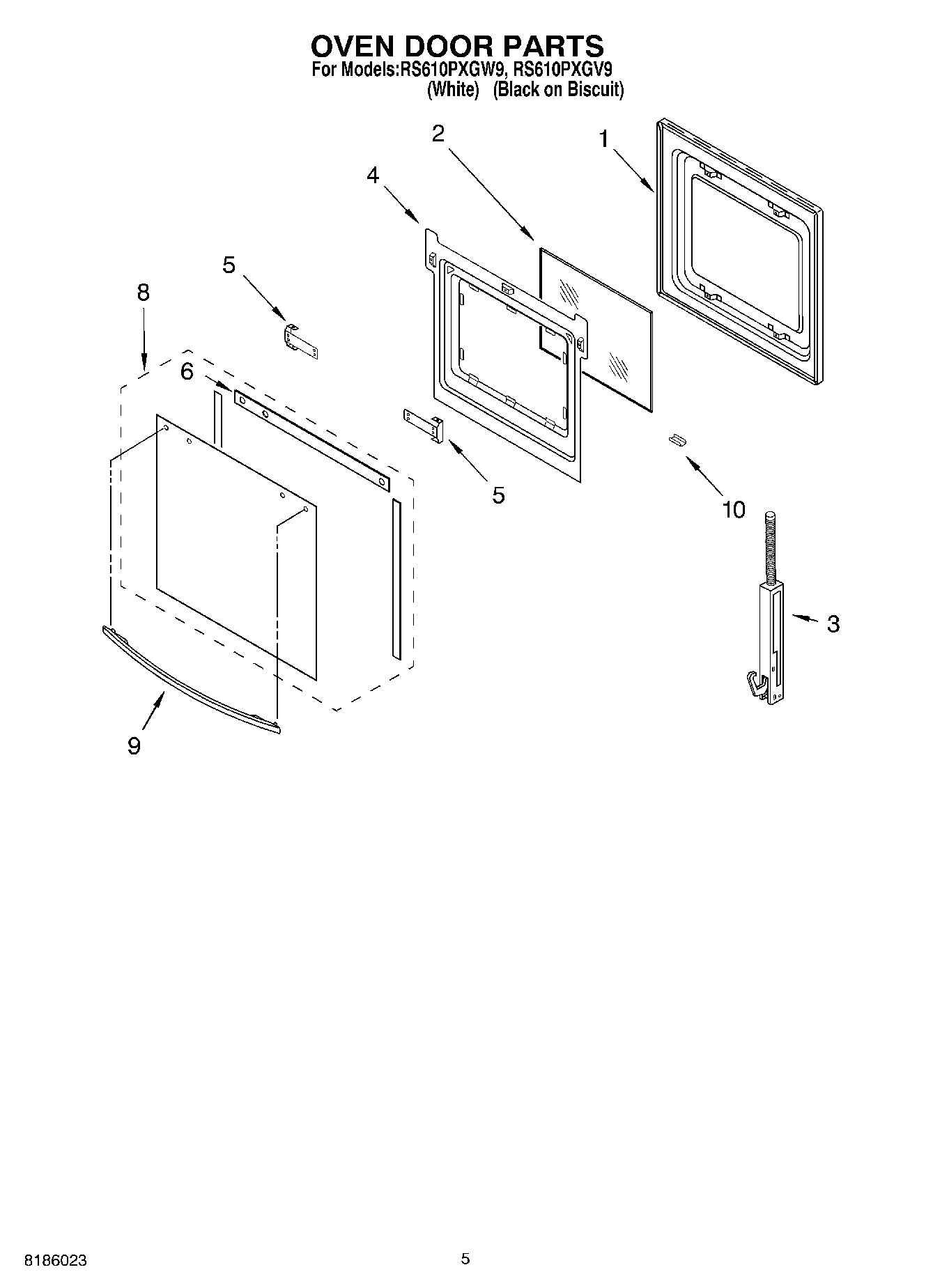

RS610PXGW9 04 – OVEN DOOR

RS610PXGW9 04 – OVEN DOOR

Written by

in

RS610PXGW9 04 – OVEN DOOR

Products

PositionProduct
1WP9759413 Whirlpool Door Liner
2WP4449259 Whirlpool Glass Window
3Hinge, Door (L.Side (L.Brown))
3Hinge, Door (R.Side (L.Brown))
4Retainer, Glass
4WP4449809 Whirlpool Screw
5Bracket, Handle
5Screw
6Seal, Door Top
8WP9759641 Whirlpool Outer Door Glass
9Door Handle (Black Model)
10Clip, Retainer (Black Model)
10WP4449743 Whirlpool Screw
