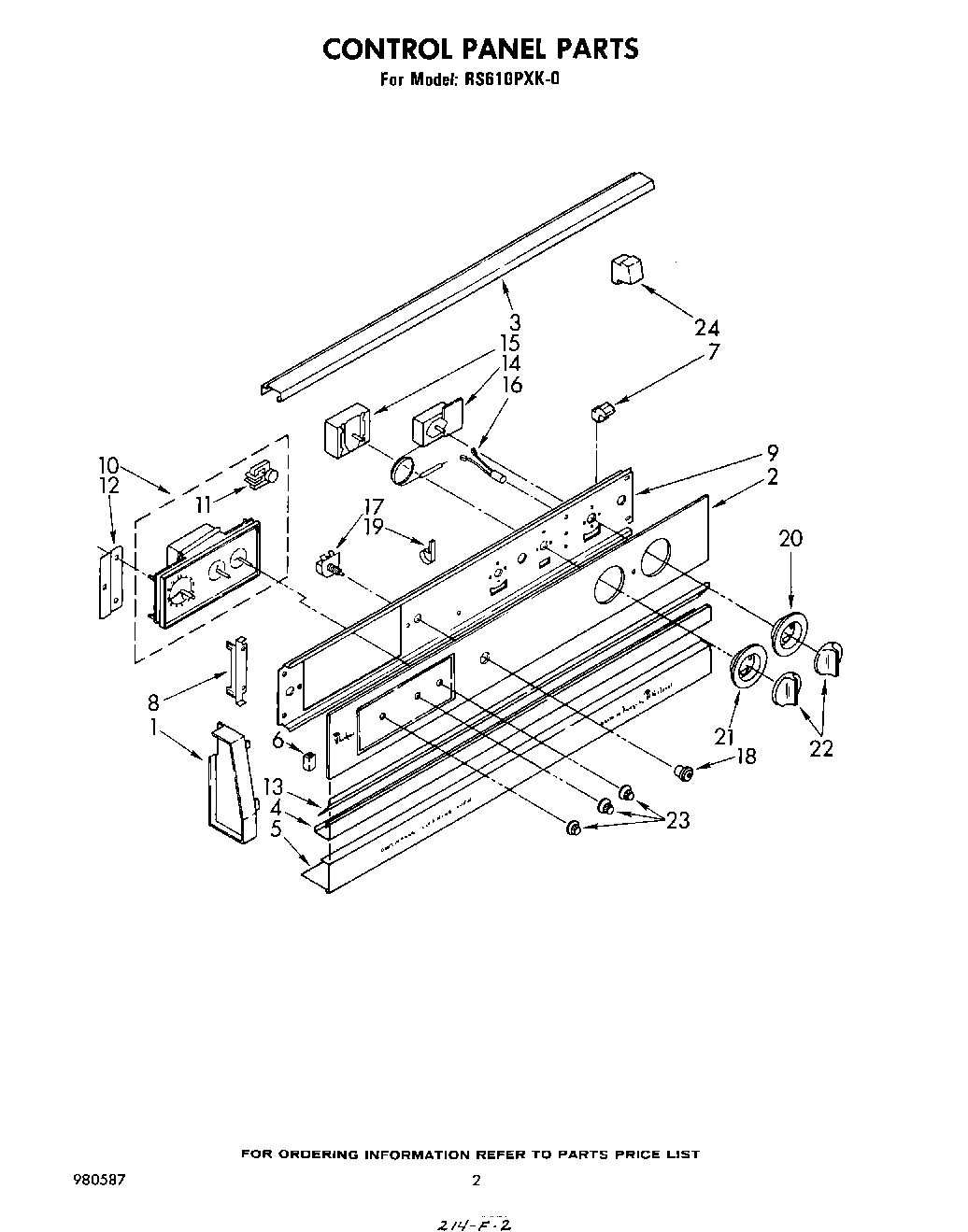

RS610PXK0 02 – CONTROL PANEL

Products

Position	Product
1	Screw (2)
1	End Cap (L.H.)
1	End Cap (R.H.)
2	Control Panel, Glass
3	Rail, Top
4	Trim, Center
5	Rail, Bottom
5	Screw, 10-32 x 1/2
6	Rubber Channel (2) (Black Model Only)
7	Retainer, Glass (4)
8	Screw (2)
8	Bracket, Control Panel (2)
9	Bracket, Control
10	Timer, Automatic (Alternate)
10	Timer, Automatic (Alternate (Includes Illus. 17))
10	Timer, Automatic (Palnut (Timer))
11	Motor, Timer
12	Bracket, Timer
13	Seal, Backguard
14	Thermostat, Oven (Alt.)
14	screw, 6-32 x 1/4 (2)
14	Thermostat, Oven (Alt.)
15	WP486579 Whirlpool Air Conditioner Screw
15	Selector Switch (4 Position)
16	Indicator Light (250V)
17	nut, 3/8 x 27
17	Switch, Oven Light
18	bezel, switch (2)
19	Strain Relief (3)
19	WP308605 Whirlpool Refrigerator Clamp
19	WP965173 Whirlpool Dishwasher Screw
19	Screw
20	Escutcheon, Thermostat
21	Screw,
21	WP311069 Whirlpool Oven Dial
22	WP3150371 Whirlpool Control Knob
23	knob, timer
24	WPL 311450
