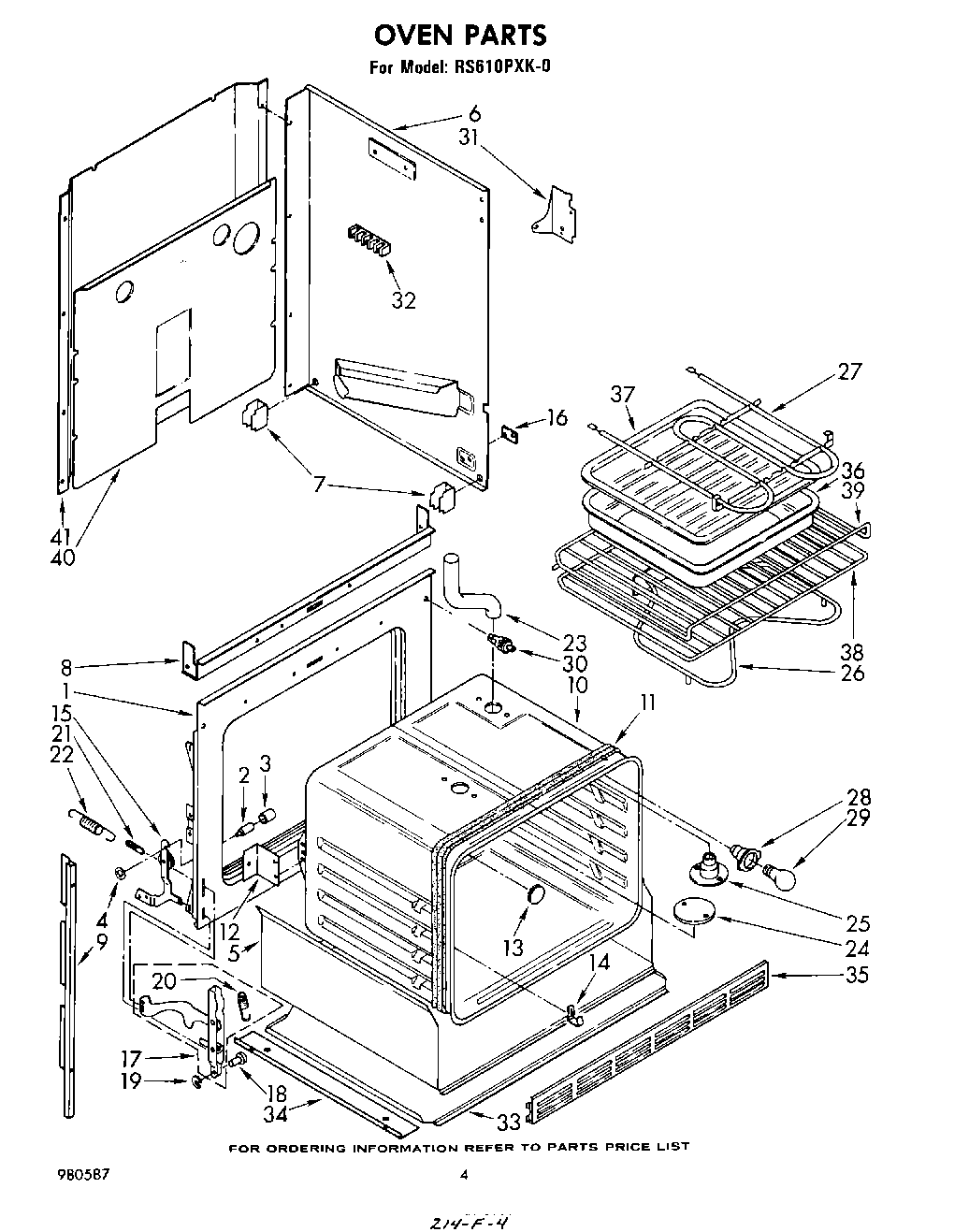

RS610PXK0 03 – OVEN

Products

Position	Product
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper (Left Side)
6	Side Wrapper (Right Side)
7	Support, Side Wrapper (4)
8	Baffle, Top Insulation
9	Side Trim (Left Side)
10	Oven, 30“ Standard Clean
10	Screw (3)
11	Heat Seal
12	Bracket, Oven Mounting (2)
13	Plug Button
14	98005642 Whirlpool Clip
15	Hinge Ear, L.H.
15	Hinge Ear, R.H.
16	Plate, Side Panel (2)
16	WP308544 Whirlpool Screw
17	Channel, Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
20	Spring, Door Stop (2)
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	Spring, Oven Door (2)
23	Tube, Vent Extension
24	Eliminator, Smoke
24	WP90767 Whirlpool Screw
25	WPL 310662
26	ELMNT-BAKE
27	Screw, 10-32 x 5/8 (4)
27	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
28	Socket, Oven Light (Alt.)
28	Socket, Oven Light (Alt.)
28	Screw (10-12 x .875)
29	RANGE ONLY 40W 120V APPL BULB
30	Switch, Door
31	WPL 310714
31	WPL 310715
32	WP112432 Whirlpool Nut Assembly
32	WP8203546 Whirlpool Terminal Block
32	W10841059 Whirlpool Screw
33	WPL 310458
34	Angle, Support (2)
35	Grill, Bottom
35	Grill, Bottom (Screw (3))
37	4396923 Whirlpool Broil Pan Set Gray Porcelain
38	WPL 308173
39	WPL 308172
40	WPL 310459
41	Cover, Rear
41	WP308685 Whirlpool Microwave Screw
