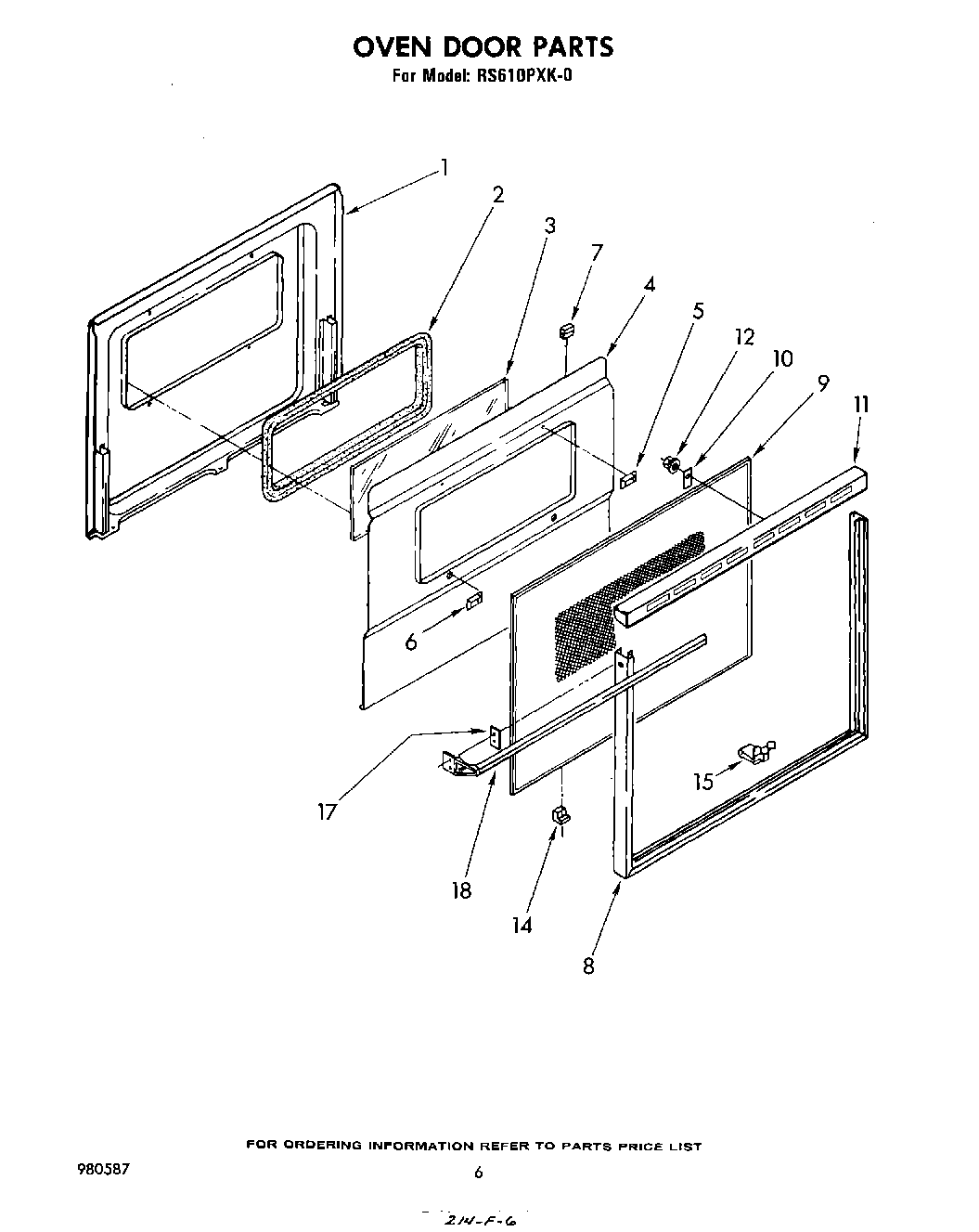

RS610PXK0 04 – OVEN DOOR , LITERATURE AND OPTIONAL

RS610PXK0 04 – OVEN DOOR , LITERATURE AND OPTIONAL

Written by

in

RS610PXK0 04 – OVEN DOOR , LITERATURE AND OPTIONAL

Products

PositionProduct
Golden Harvest (Uncut)
Almond (Uncut)
799344 Whirlpool Refrigerator Paint
Enamel, New Avocado (1 Qt. Uncut)
Enamel, Coffee (1 Qt. Uncut)
511873 Whirlpool Refrigerator Paint
1Screw (3)
1Liner, Door
1Clip (2)
2seal, pano glass
3glass, inner 30“
4baffle, insulation
6WP308685 Whirlpool Microwave Screw
6spacer, insulation baffle (4)
7channel, rubber (4)
8frame, door 30“
9Glass, Outer
10hold down, glass (2)
11Top, Door Frame
11Screw, 10A x 1/2 (2) (Black)
12WP90296 Whirlpool Clip
14Cushion, Oven Door (3)
15clip, glass (10)
15screw (3)
17Spacer, Door Handle (2)
18WPL 308500
18WP912618 Whirlpool Dishwasher Screw
18WPL 980587
18Wire (12 Ga. 150 c Black)
18WPL 261880
18WPL 311409
18Leveler (Thinner) (2oz.)
18Grease
18WPL 799351
18WPL 311433
18Handle, Oven Door
181
18285006 Whirlpool Spray
18Wire, 25“ Roll (White 14 GA.)
18Wire, 25` Roll (Red 14 Ga.)
18Wire, 25` Roll (Black 14 Ga.)
18FOIL, ALUMINUM OVEN (18“ X 25 )
18WPW10208653 Whirlpool Insulation
18WPL 799832
18350942 Whirlpool Spray Paint
18Golden Harvest
1872110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
18WP72107 Whirlpool Touchup
1872017 Whirlpool Appliance Touch-Up Paint White
1872109 Whirlpool Dacor Avocado Touch-Up Paint
18Paint, Touch-Up 1/2 Oz. (Coffee)
18Wire (14 Ga. 200 c Brown)
1818 Ga. 80~c Rating (Red)
18350930 Whirlpool White Spray Paint
18Wire (14 Ga. 150 c Yellow)
18Wire (14 Ga. 150 c Orange)
18Wire (14 Ga. 150 c Green)
18Wire (14 Ga. 150 c Brown)
18Wire (14 Ga. 150 c Blue)
18242831 Whirlpool Oven Wire
18Touch-Up Oven (1 Oz.)
18Paint, Spray 13 Oz. (Avocado)
18paint, spray 13 oz. (coffee)
18350956 Whirlpool Spray Assembly
