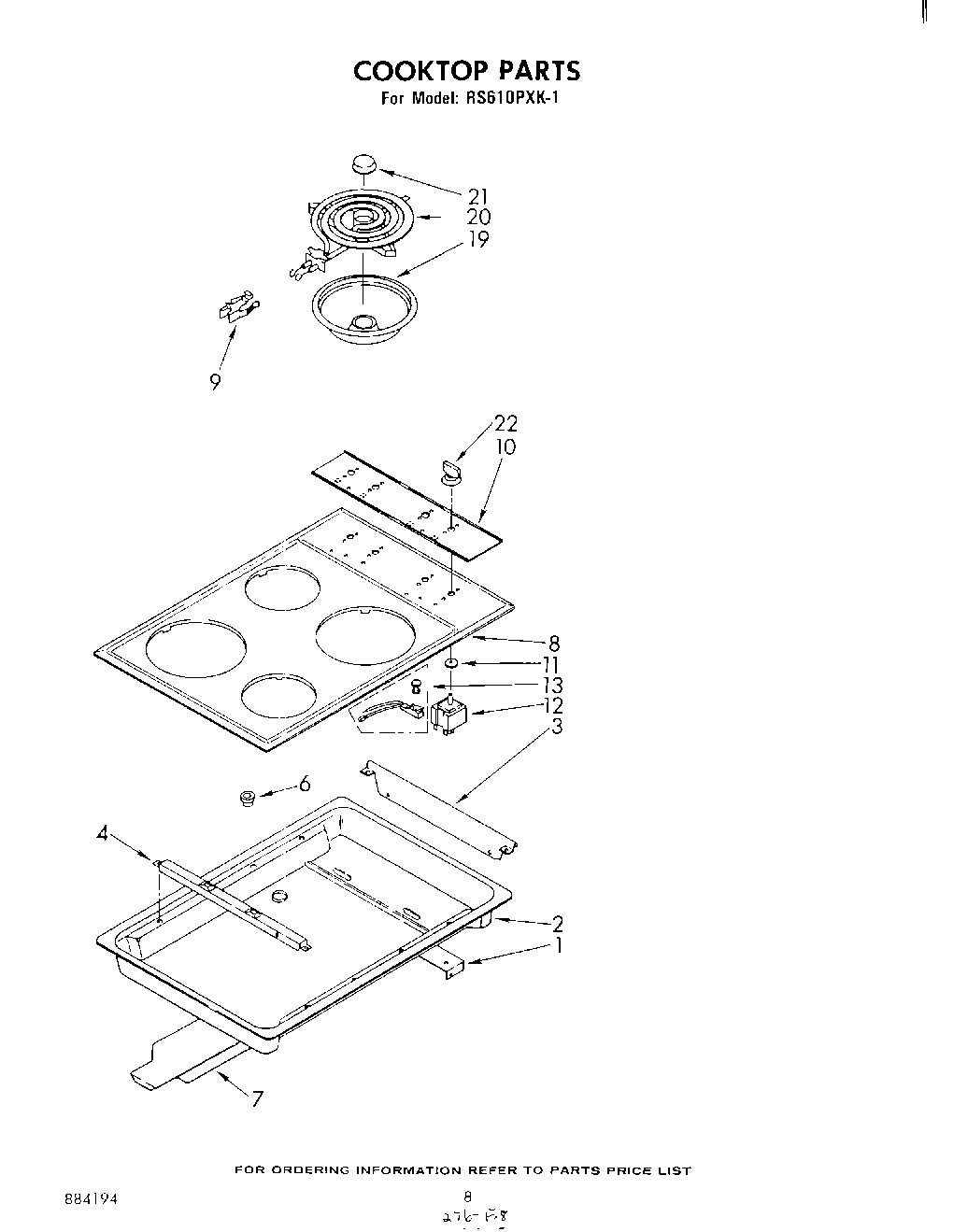

RS610PXK1 05 – COOKTOP

RS610PXK1 05 – COOKTOP

Written by

in

RS610PXK1 05 – COOKTOP

Products

PositionProduct
WP660533 Whirlpool Oven 8" Surface Element
1Support, Box
2Burner Box
3Shield, Switch
3WP488787 Whirlpool Refrigerator Screw
4Screw, 10-32 x 1/2
4Support, Cooktop
6WPL 258109
7Cover, Top Rear
8WP308685 Whirlpool Microwave Screw
8WPL 312318
8Cooktop, Chrome
8Screw
9WP313808 Whirlpool Screw
9BURNER RECEPTACLE KIT
10Panel, Control
11Seal, Switch Shaft (2)
12W10900107 Whirlpool Oven Surface Element Switch
12WP486579 Whirlpool Air Conditioner Screw
13Indicator, Light (Includes No. 14)
19WPW10196406 Whirlpool 6" Chrome Drip Bowl
19DRIP BOWL 8" W/HOLE CHROME
20WP660532 Whirlpool Oven Surface Element
21Medallion (4)
22WP330190 Whirlpool Knob
