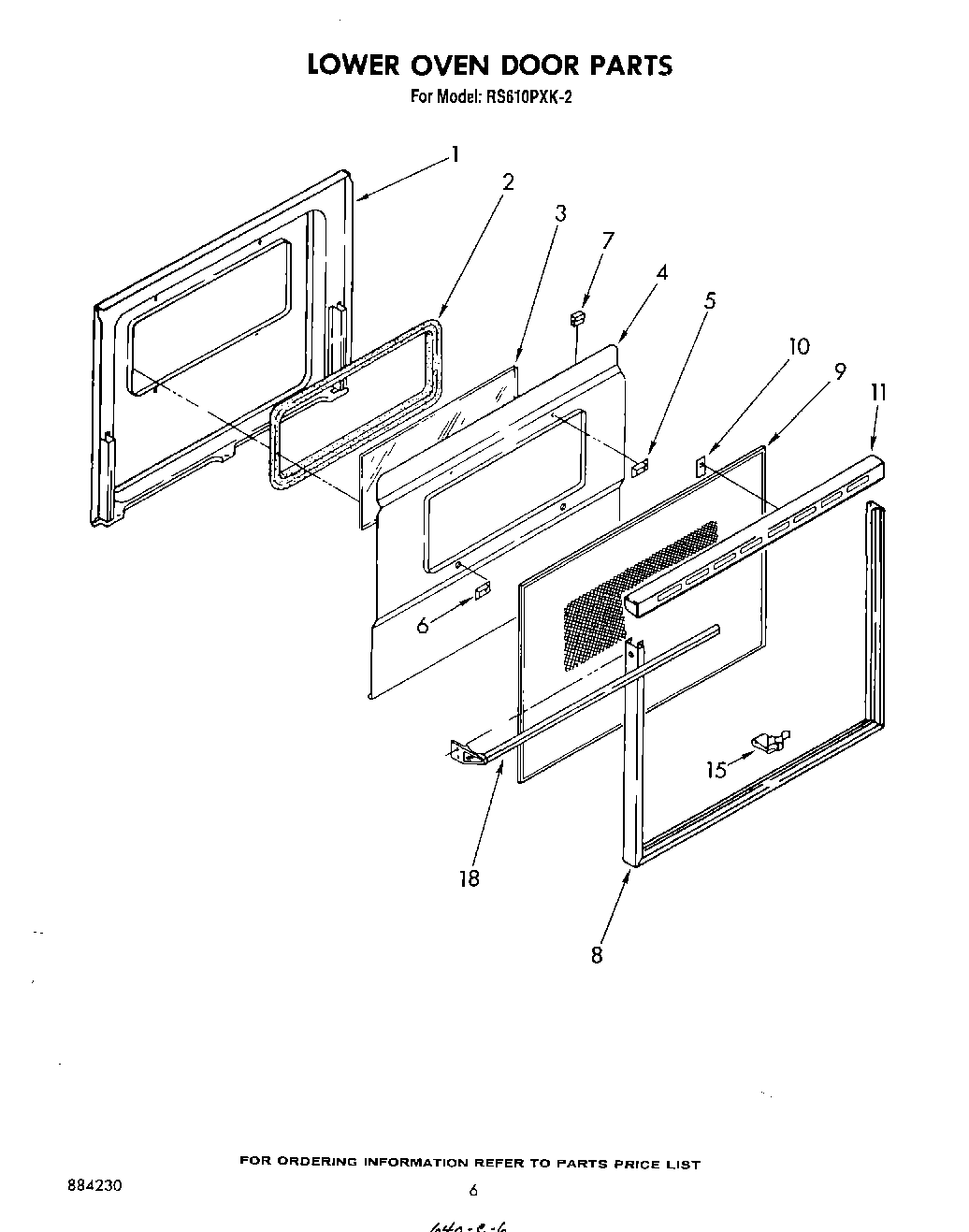

RS610PXK2 04 – LOWER OVEN DOOR , LITERATURE AND OPTIONAL

RS610PXK2 04 – LOWER OVEN DOOR , LITERATURE AND OPTIONAL

Written by

in

RS610PXK2 04 – LOWER OVEN DOOR , LITERATURE AND OPTIONAL

Products

PositionProduct
WPL LIT311433
WPL LIT311409
WPL LIT884230
511873 Whirlpool Refrigerator Paint
WPL LIT313358
1Liner, Door
1Screw (3)
1pushnut (2)
1pin, wedge (2)
2seal, pano glass
3glass, inner 30“
4baffle, insulation
6WP488729 Whirlpool Refrigerator Door Screw
6spacer, insulation baffle (4)
7Channel, Rubber (4)
8frame, door 30“
9Glass, Outer
10hold down, glass (2)
11Top, Door Frame
11Screw, 10A x 1/2 (2) (Black)
11WP90296 Whirlpool Clip
15screw (3)
15clip, glass (10)
18Paint, Spray 13 Oz. (Avocado)
18Enamel, New Avocado (1 Qt. Uncut)
18WPW10208653 Whirlpool Insulation
18Leveler (Thinner) (2oz.)
18WPL 799832
18WPL 261880
18350942 Whirlpool Spray Paint
18Golden Harvest (Uncut)
1872110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
18Almond (Uncut)
18WP72107 Whirlpool Touchup
18Golden Harvest
18WP912618 Whirlpool Dishwasher Screw
18799344 Whirlpool Refrigerator Paint
1872017 Whirlpool Appliance Touch-Up Paint White
18Handle, Oven Door
18350956 Whirlpool Spray Assembly
18350930 Whirlpool White Spray Paint
18FOIL, ALUMINUM OVEN (18“ X 25 )
18Wire, 25` Roll (Black 14 Ga.)
18Wire, 25` Roll (Red 14 Ga.)
18paint, spray 13 oz. (coffee)
18Touch-Up Oven (1 Oz.)
18242831 Whirlpool Oven Wire
18Wire (14 Ga. 150 c Blue)
18Wire (14 Ga. 150 c Brown)
18Wire (14 Ga. 150 c Green)
18Wire (14 Ga. 150 c Orange)
18Paint, Touch-Up 1/2 Oz. (Coffee)
18Wire (12 Ga. 150 c Black)
1818 Ga. 80~c Rating (Red)
18Wire (14 Ga. 200 c Brown)
181
1872109 Whirlpool Dacor Avocado Touch-Up Paint
18285006 Whirlpool Spray
18Wire (14 Ga. 150 c Yellow)
18Wire, 25“ Roll (White 14 GA.)
18Enamel, Coffee (1 Qt. Uncut)
18Grease
