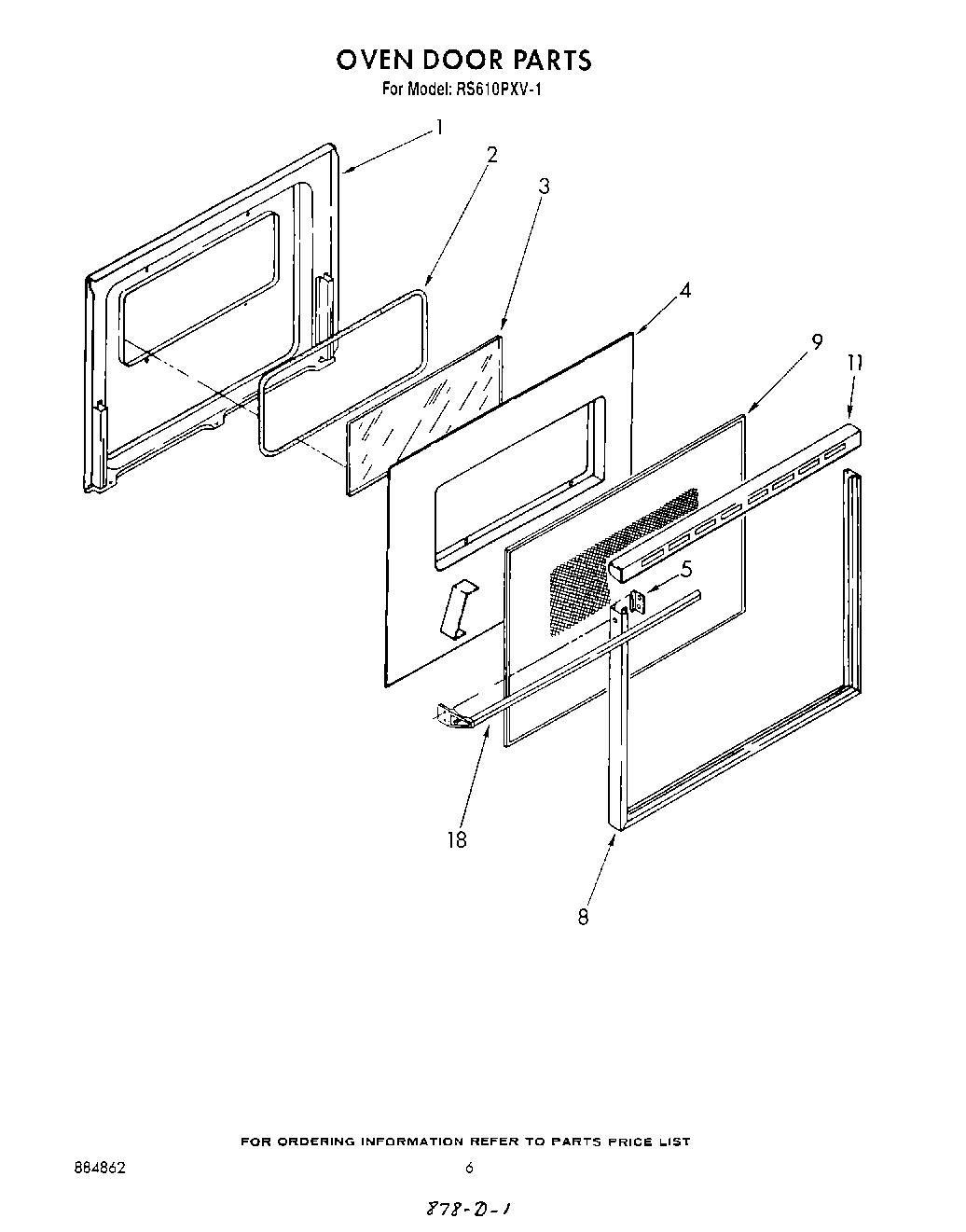

RS610PXV1 05 – OVEN DOOR , LIT/OPTIONAL

Products

Position	Product
1	Liner, Door
1	Screw
2	Seal, Door
3	Glass, Inner
4	Retainer, Insulation
5	Clip, Mtg (2)
8	Frame, Door
9	Glass, Panel (Black Model)
11	Top, Door (Black Model)
18	Wire (14 Ga. 150 c Yellow)
18	Wire (14 Ga. 150 c Orange)
18	Wire (14 Ga. 150 c Green)
18	Grease
18	Handle, Oven Door
18	Wire (14 Ga. 150 c Brown)
18	Wire (14 Ga. 150 c Blue)
18	Wire (12 Ga. 150 c Black)
18	18 Ga. 80~c Rating (Red)
18	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
18	Leveler (Thinner) (2oz.)
18	Enamel, New Avocado (1 Qt. Uncut)
18	WP355515 Whirlpool Screw
18	Enamel, Coffee (1 Qt. Uncut)
18	Back Splash (Screw (4) 10AB x 1/2``)
18	1
18	Wire (14 Ga. 200 c Brown)
18	WPL 261880
18	242831 Whirlpool Oven Wire
18	511873 Whirlpool Refrigerator Paint
18	350942 Whirlpool Spray Paint
18	Golden Harvest (Uncut)
18	Golden Harvest
18	Almond (Uncut)
18	WP72107 Whirlpool Touchup
18	799344 Whirlpool Refrigerator Paint
18	72017 Whirlpool Appliance Touch-Up Paint White
18	350956 Whirlpool Spray Assembly
18	WPL 799832
18	FOIL, ALUMINUM OVEN (18`` X 25 )
18	Touch-Up Oven (1 Oz.)
18	Paint, Spray 13 Oz. (Avocado)
18	paint, spray 13 oz. (coffee)
18	Paint, Touch-Up 1/2 Oz. (Coffee)
18	72109 Whirlpool Dacor Avocado Touch-Up Paint
18	285006 Whirlpool Spray
18	Wire, 25`` Roll (White 14 GA.)
18	Wire, 25` Roll (Red 14 Ga.)
18	Wire, 25` Roll (Black 14 Ga.)
18	350930 Whirlpool White Spray Paint
