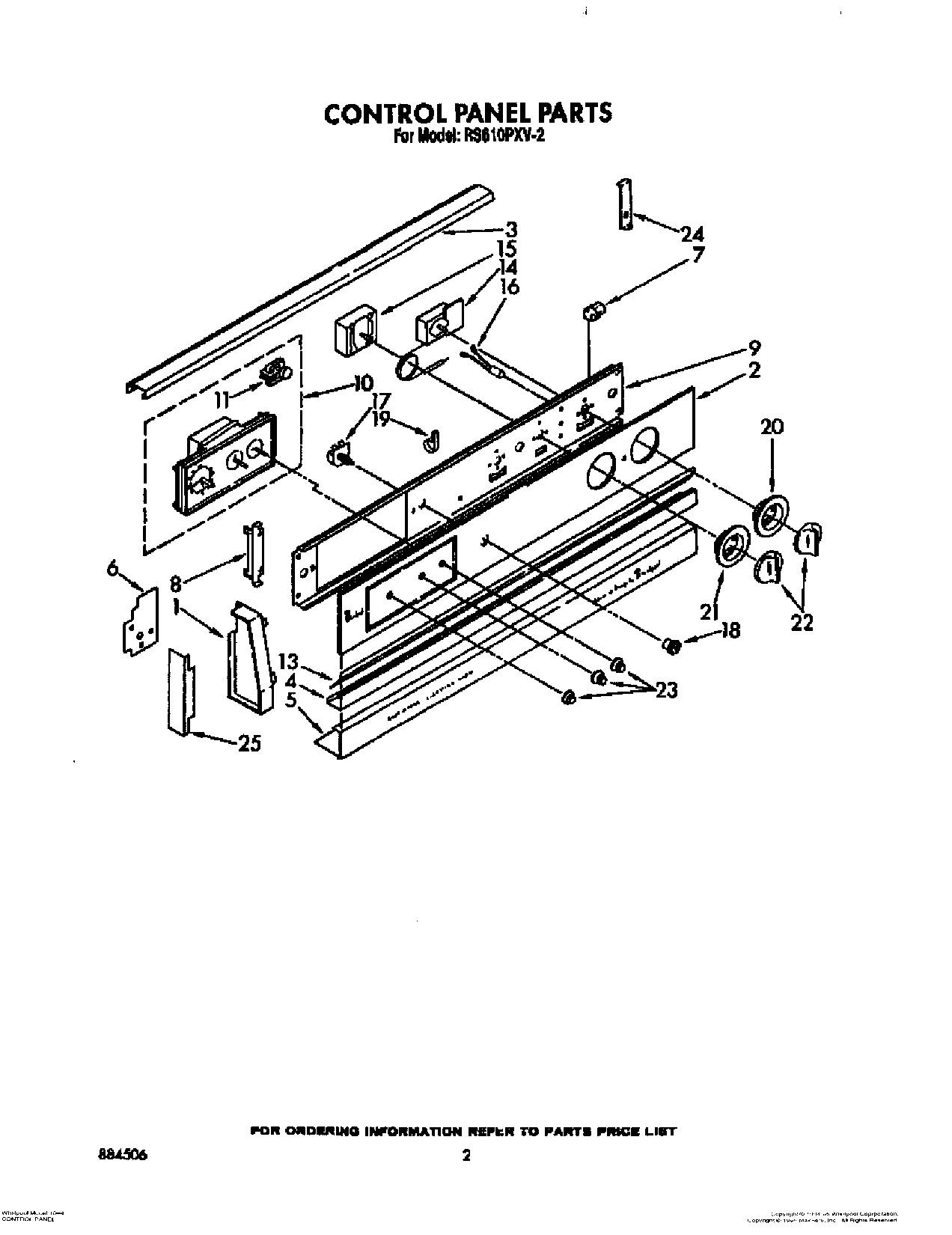

RS610PXV2 02 – CONTROL PANEL

Products

Position	Product
NI	screw, 6-32 x 1/4 (2)
1	Screw (2)
1	End Cap (R.H.)
1	End Cap (L.H.)
2	Control Panel, Glass
3	Rail, Top
4	Trim, Center
5	Rail, Bottom
5	Screw, 10-32 x 1/2
6	Cover, Side (Left Hand)
6	Cover, Side (Right Hand)
7	Retainer, Glass (4)
8	Bracket, Control (2)
9	Bracket, Control
9	Clip
10	Timer, Clock (Includes No.6)
11	Motor, Timer
13	Rail, Top (Seal, Backguard)
14	Thermostat, Oven
14	Thermostat, Oven (Alt.)
14	Thermostat, Oven (Alt.)
15	Selector Switch (4 Position)
15	WP486579 Whirlpool Air Conditioner Screw
16	Indicator Light (4)
17	Lockwasher
17	Switch, Oven Light
17	WP965173 Whirlpool Dishwasher Screw
18	Bezel Switch (1)
19	Screw (2)
19	WP308605 Whirlpool Refrigerator Clamp
19	Screw
20	Escutcheon, Thermostat
21	WP311069 Whirlpool Oven Dial
21	Screw,
22	WP3150371 Whirlpool Control Knob
23	Spring (3)
23	WP3169181 Whirlpool Knob
24	Support, Rail
25	Trim, End Cap (Black)
