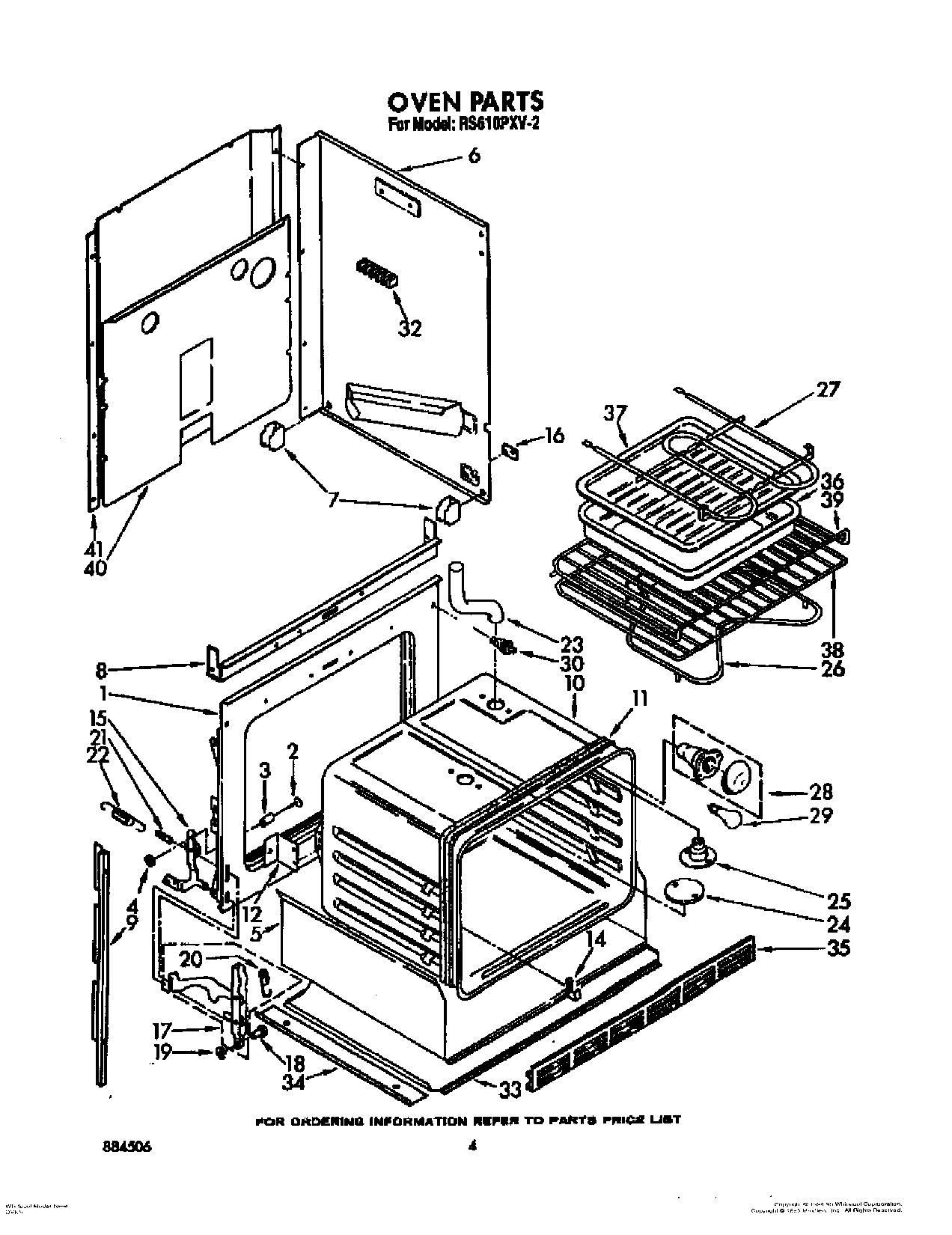

RS610PXV2 04 – OVEN

Products

Position	Product
	WPL 312318
	WPL LIT3148322
	WPL LIT3147390
	WPL LIT884506
	WPL LIT313358
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper (Left Side)
6	Side Wrapper (Right Side)
7	Support, Side Wrapper (4)
8	Baffle, Top Insulation
9	Side Trim (Right Side)
9	Side Trim (Left Side)
10	Screw (3)
10	Oven 30“ Standard Clean
11	Heat Seal
12	WP489069 Whirlpool Compactor Screw
12	Bracket, Oven Mounting (2)
14	98005642 Whirlpool Clip
15	Hinge Ear, L.H.
15	Hinge Ear, R.H.
16	Plate, Side Panel (2)
16	WP308544 Whirlpool Screw
17	Channel Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
20	Spring, Door Stop (2)
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	Spring, Oven Door (2)
23	SCREW
23	Tube, Vent Extension
24	Eliminator, Smoke
25	WPL 310662
26	ELMNT-BAKE
27	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
28	W11594027 Whirlpool Range Oven Light Socket
29	RANGE ONLY 40W 120V APPL BULB
30	Switch, Door
32	WP8203546 Whirlpool Terminal Block
32	WP112432 Whirlpool Nut Assembly
33	WPL 310458
34	Angle, Support (2)
35	Grill, Bottom
35	Grill, Bottom (Screw (3))
37	4396923 Whirlpool Broil Pan Set Gray Porcelain
38	WPL 308173
39	WPL 308172
40	Panel, Back (2)
41	Insulation, Wrap
41	Insulation, Back
41	Cover, Rear
41	WP488729 Whirlpool Refrigerator Door Screw
