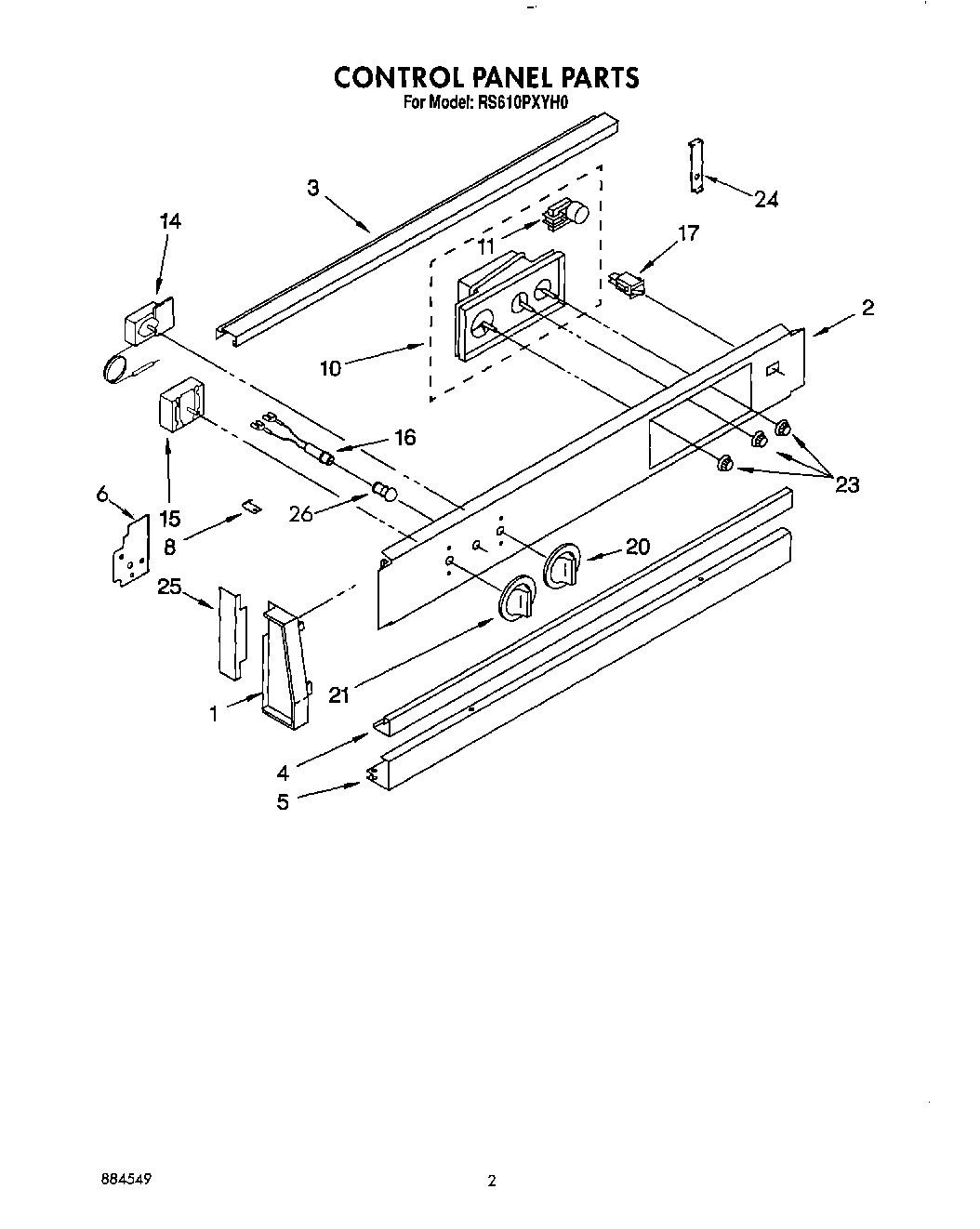

RS610PXYH0 02 – CONTROL PANEL
Written by
in
RS610PXYH0 02 – CONTROL PANEL
Products
Position
Product
1
End Cap (L.H.)
1
End Cap (R.H.)
1
Screw (2)
2
Panel, Control
3
Rail, Top
4
Trim, Center
5
Trim, Bottom
6
Cover, Side (Right Hand)
6
Cover, Side (Left Hand)
8
Bracket, Support
8
Screw, 10-32 x 1/2
10
Timer, Auto
10
Screw (2)
11
Motor, Timer
14
Thermostat, Oven
14
WP313808 Whirlpool Screw
15
Screw
15
Switch, Selector (4 Position)
16
Light, Indicator (250V)
17
Switch, Rocker
20
Knob, Thermostat
21
Knob, Selector
23
WP3169181 Whirlpool Knob
24
Support, Rail
25
Trim, End Cap (Black)
26
Lens, Amber
←
