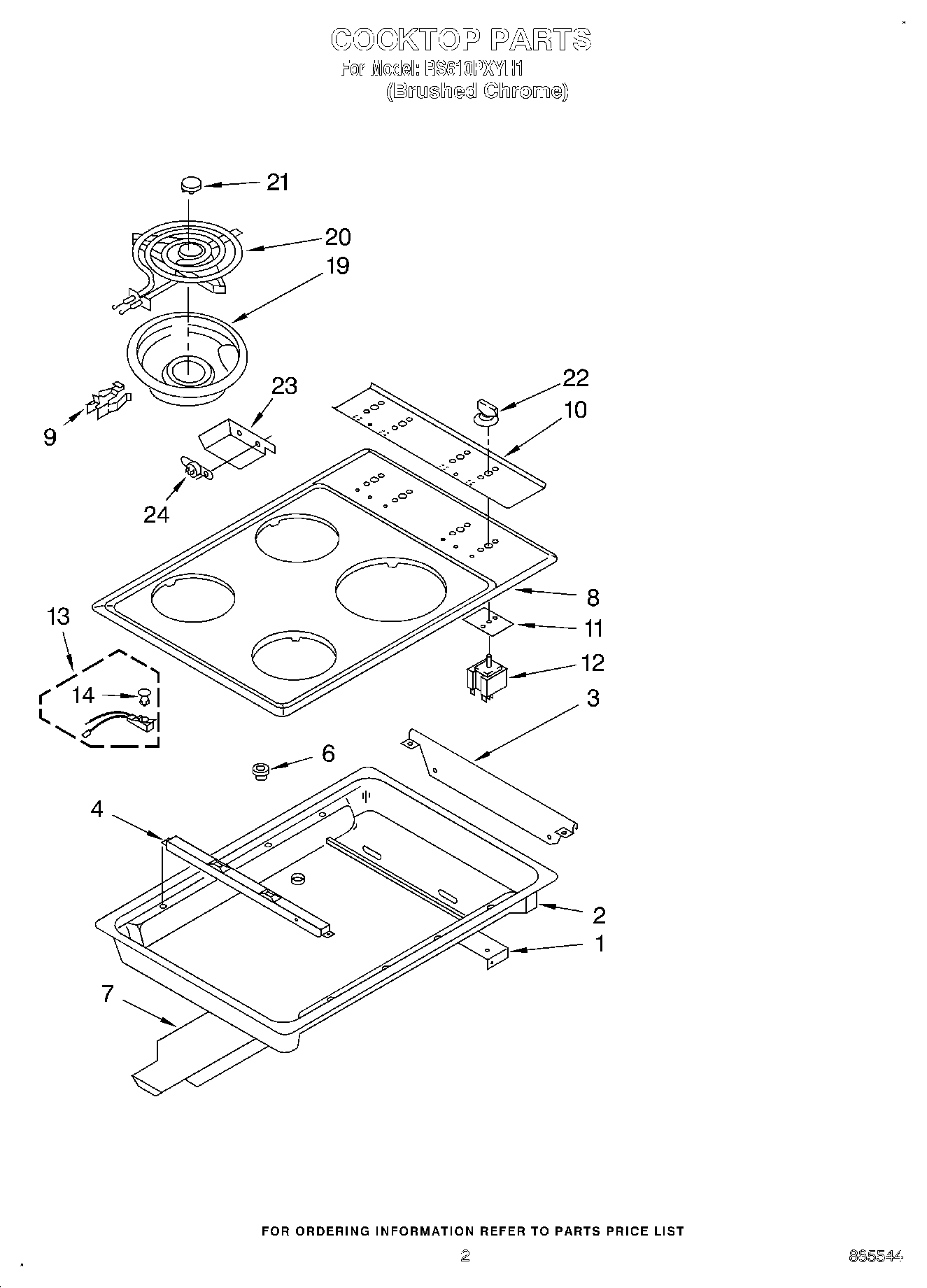

RS610PXYH1 02 – COOKTOP

Products

Position	Product
1	Support, Box
2	Box, Burner
3	Shield, Switch
4	Support, Cooktop
4	Screw, 10-32 x 1/2
6	WPL 258109
7	Cover, Top Rear
8	WP488729 Whirlpool Refrigerator Door Screw
8	Cooktop (Brushed Chrome)
8	814103 Whirlpool Clip
9	BURNER RECEPTACLE KIT
9	WP313808 Whirlpool Screw
10	Panel, Control
11	3183956 Whirlpool Oven Seal Switch
12	Switch, Infinite (Use W/6“ Surface Unit (2))
12	WP486579 Whirlpool Air Conditioner Screw
12	WP3148966 Whirlpool Infinite Switch
13	Indicator, Light (Includes No. 14)
14	Lens, Light
19	DRIP BOWL 8" W/HOLE CHROME
19	WPW10196406 Whirlpool 6" Chrome Drip Bowl
20	WP660532 Whirlpool Oven Surface Element
20	WP660533 Whirlpool Oven 8" Surface Element
21	Medallion (4)
22	Knob, Control (4)
23	Bracket, Sensor
24	Thermostat
