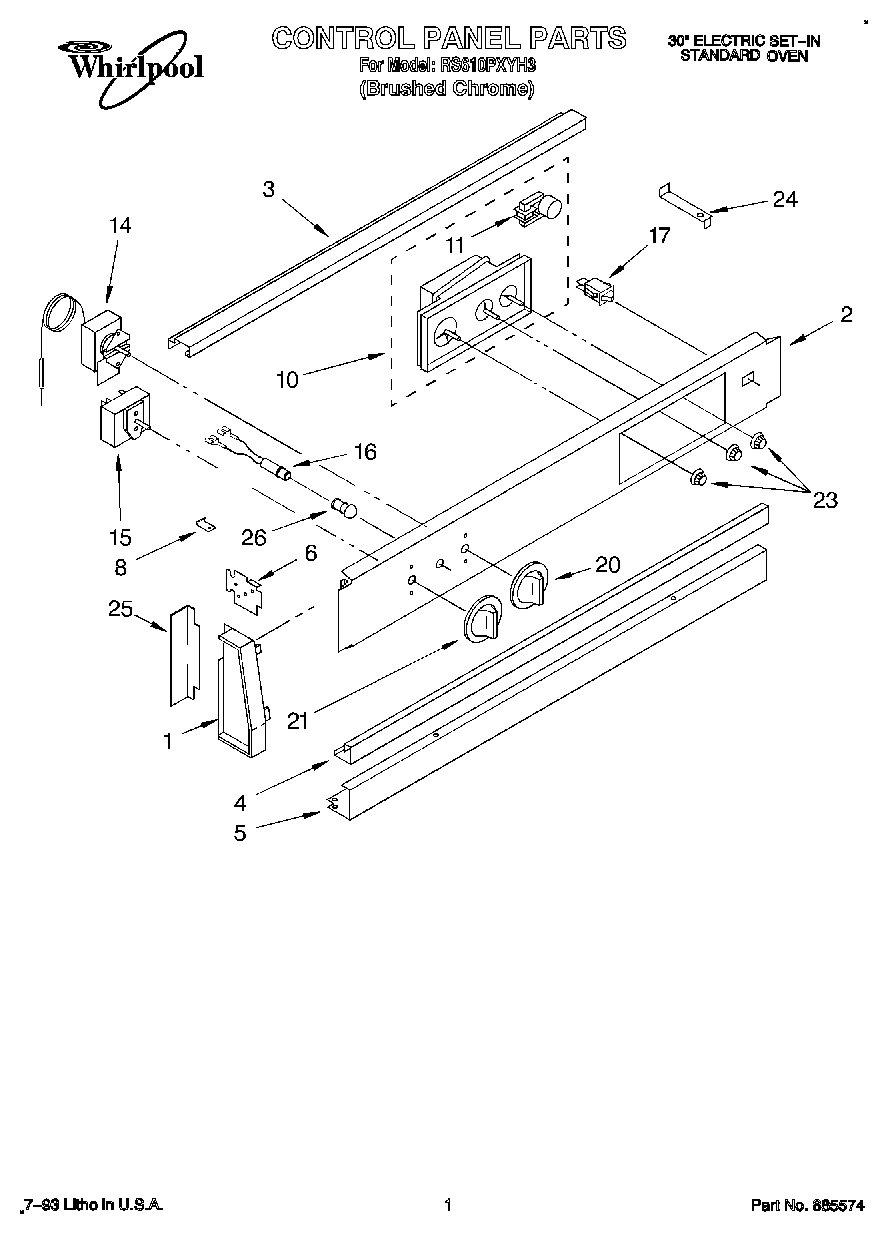

RS610PXYH3 01 – CONTROL PANEL

Products

PositionProduct
1End Cap (L.H.)
1End Cap (R.H.)
1Screw (2)
2Panel, Control
3Rail, Top
4Trim, Center
5Trim, Bottom
6Cover, Side (Right Hand)
6Cover, Side (Left Hand)
8Bracket, Support
8Screw, 10-32 x 1/2
10Screw (2)
10Timer, Auto
11Motor, Timer
14WP313808 Whirlpool Screw
14Thermostat, Oven
15Switch, Selector (4 Position)
15Screw
16Light, Indicator (250V)
17Switch, Rocker
20Knob, Thermostat
21Knob, Selector
23WP3169181 Whirlpool Knob
24Support, Rail
25Trim, End Cap (Black)
26Lens, Amber
